Crimp Housing 2.54mm – I-DS1070 – Series
Product specs
| Number of Pins | 2, 3, 4, 5, 6, 7, 8, 10, Crimp |
|---|---|
| Pitch | 2.54mm |
Product Description

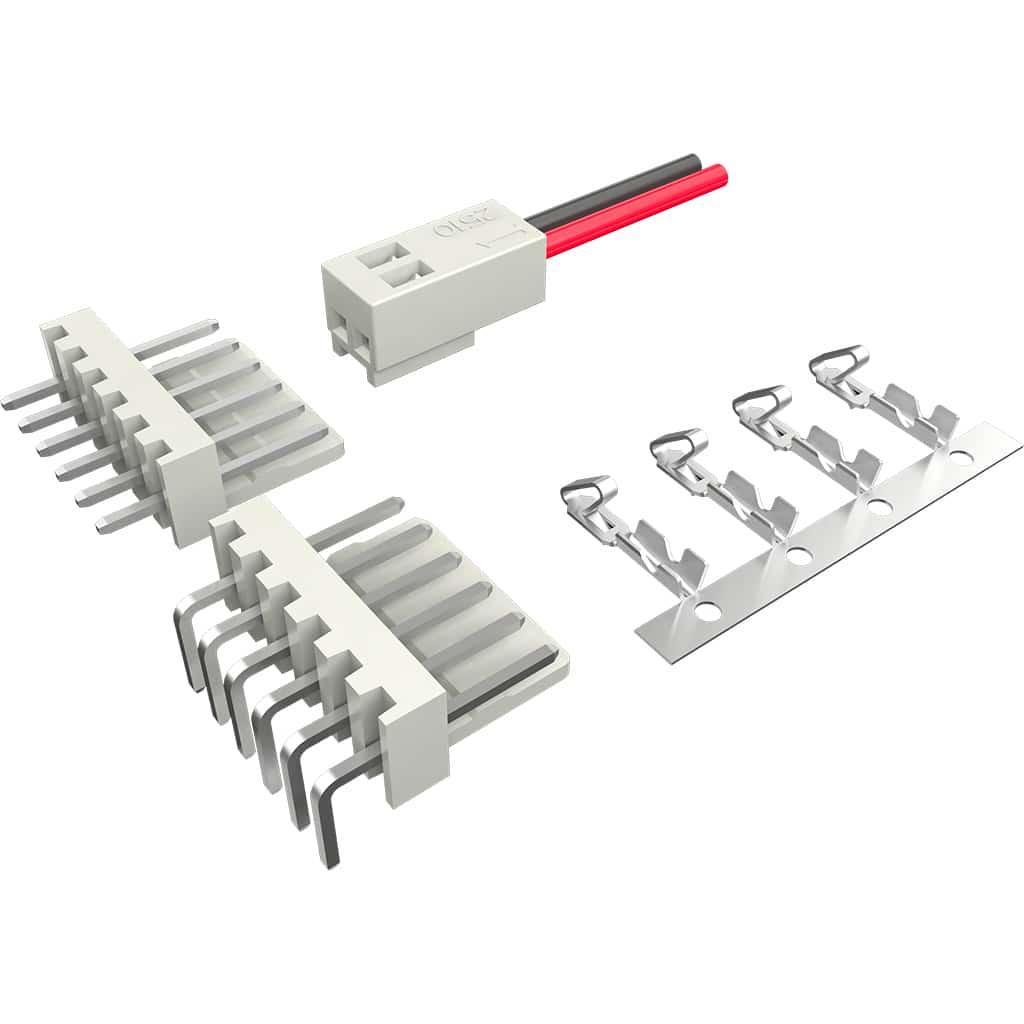

The I-DS1070 is a 2510 style crimp housing from Connfly. Available from 2-20 pins. Nylon 66 – UL 94V-0. Used with the T-DS1070-SC600 crimp 28-22Awg. For use with the PCB mount male header DS1070.
- Pitch – 2.54mm
- Current rating – 3A
- Housing – Nylon 66 (UL 94V-0)
- Temperature Range -25C + 85C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstanding Voltage – AC 500V 1 Minute
- Wire Range 28-22Awg
