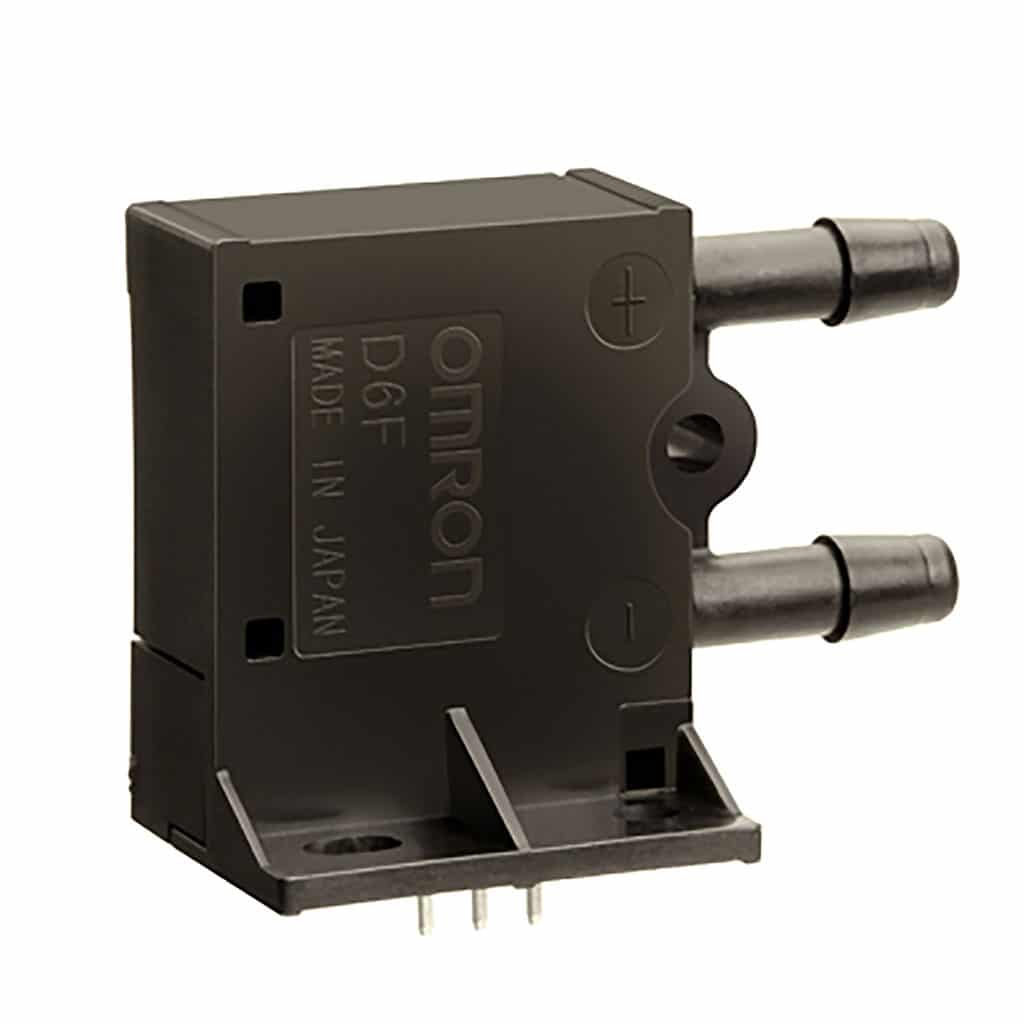

D6F-P

D6F-P

SKU: D6F-P Categories: , , Manufacturer:
Download PDF

Product specs

Weight 8.5 g
Dimensions N/A
Applicable Gas

Air
Flow Rate

0~0.1L/min, 0~1L/min
Electrical Connection

3-Pin Connector, Lead Terminals
Power Supply (Vdc)

4.75~5.25 Vdc
Voltage Output Signal

Analog 0.5~2.5 Vdc, Analog 0.5~2.5 Vdc (Non Linear)
Connect

Bamboo Connect, Manifold

Product Description

The D6F-P MEMS flow sensor series from Omron a family of compact, high accuracy flow sensors with superior resistance to the environment. Anti-dust performance is improved by using the Cyclon method. This range of sensors have a high accuracy of  ±5% FS





  • Calibration Gas: Air
  • Flow Port Type: Bamboo Connect (except D6F-P0010AM2 which is Manifold)
  • Electrical Connection: 3 Pin Connector or Lead Terminals
  • Power Supply: 4.75 to 5.25 VDC
  • Current Consumption: 15mA (with no load)
  • Accuracy: ±3% FS
  • Case: PBT
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -40°C to +80°C
  • Weight: 8.5g (except D6F-P0010AM2 which is 8.0g)
