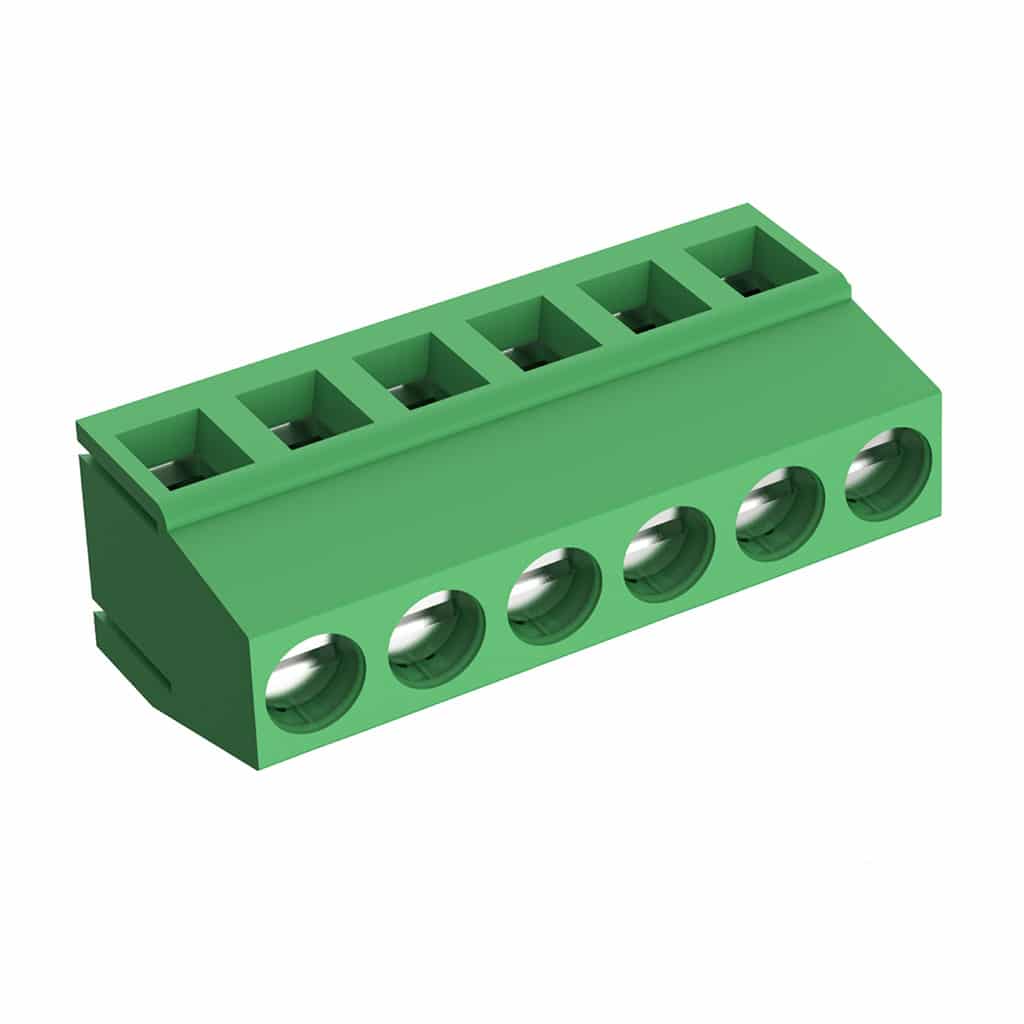

Rising Clamp , 5mm Pitch 90D – DG128R-5.0-xxP-1400AH
Product specs
| Height | 10.2mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | Vertical |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |
| Colour | Black, Green |
Product Description
DG128R-5.0 series is one of Degsons most popular 90D cable entry terminal block ranges. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
Dg128 series is both UL (E228872) & VDE (40022088) approved and with the highest V0 flammability rating.
- Pitch 5mm – Vertical cable entry
- 10.2mm High – 14.1mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- Torque – 3.54 lb/In
- UL File number E228872 – 12-30 Awg – 20A @ 300v
- VDE File number 40033088 – 2.5mm2 – 18A @ 250v
- Interlocking device
- Colour Green as standard
