DIP Switch 2.54mm – DS1040 Series
Product specs
| Poles | 1, 2, 3, 4, 5, 6, 7, 8, 10, 12 |
|---|---|
| Colour | Red, Blue |
| Actuator | Regular, Piano |
| Pitch | 2.54mm |
| Tube | 14, 17, 21, 24, 28, 33, 40, 51, 70, 116 |
Product Description

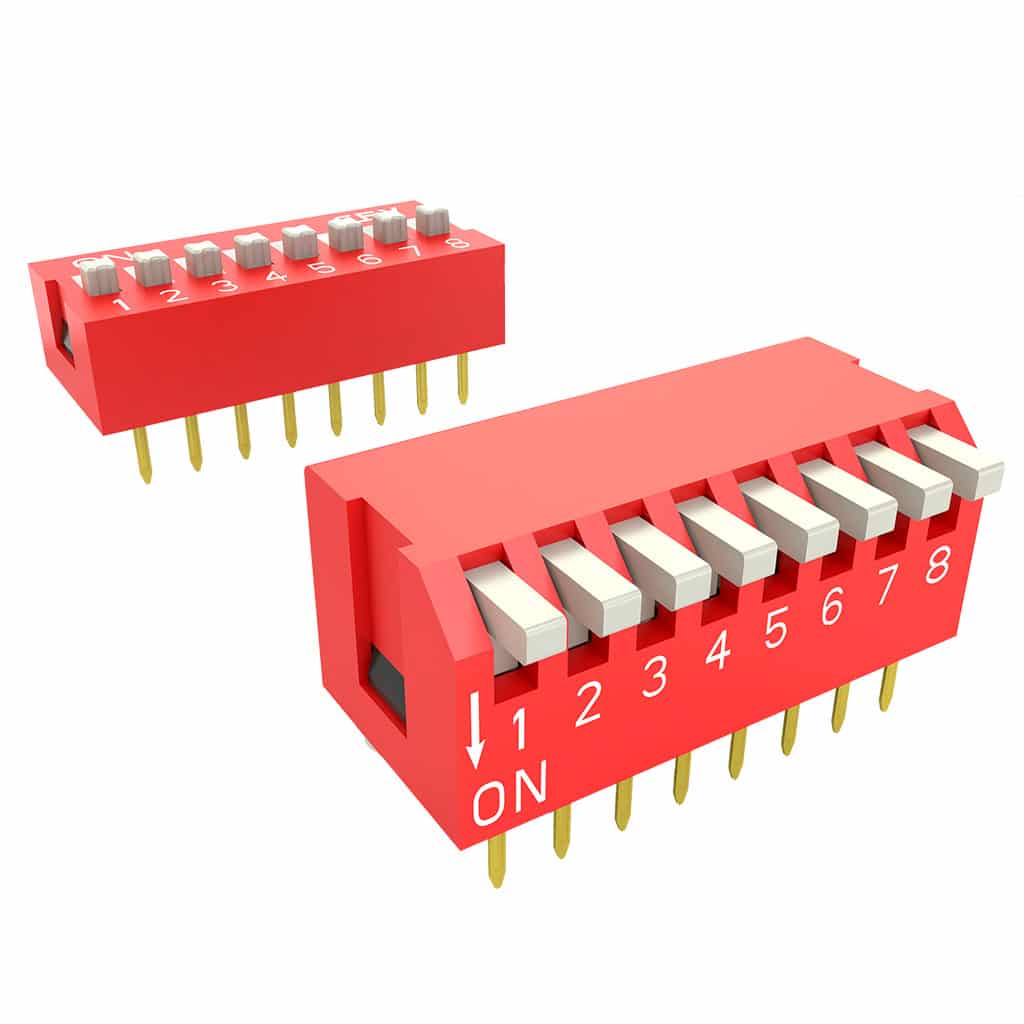

The DS1040 DIP switch from Connfly is available in standard and piano style. Positions from 1 to 12. The housing is UL 94V-0 rated, standard colour Red, also available in Blue.
- Contact Resistance 100mΩ Max.
- Contact Rating 1.5A at 12VDC
- Insulation Resistance 1000 MΩ Min. 500VDC
- Operating life 2,000 cycles.
- Dielectric Withstanding Voltage 500VAC 1 minute.
- Temperature range -40 to +105℃
