FPC 0.5mm ZIF DS1020-09 – Series
Product specs
| Pitch | 0.5mm |
|---|---|
| Number of Positions | 36, 40, 50 |
| Pack | Reel 2K, Tube 19, Tube 22, Tube 24 |
| Type | Lower Contact, Upper Contact |
Product Description

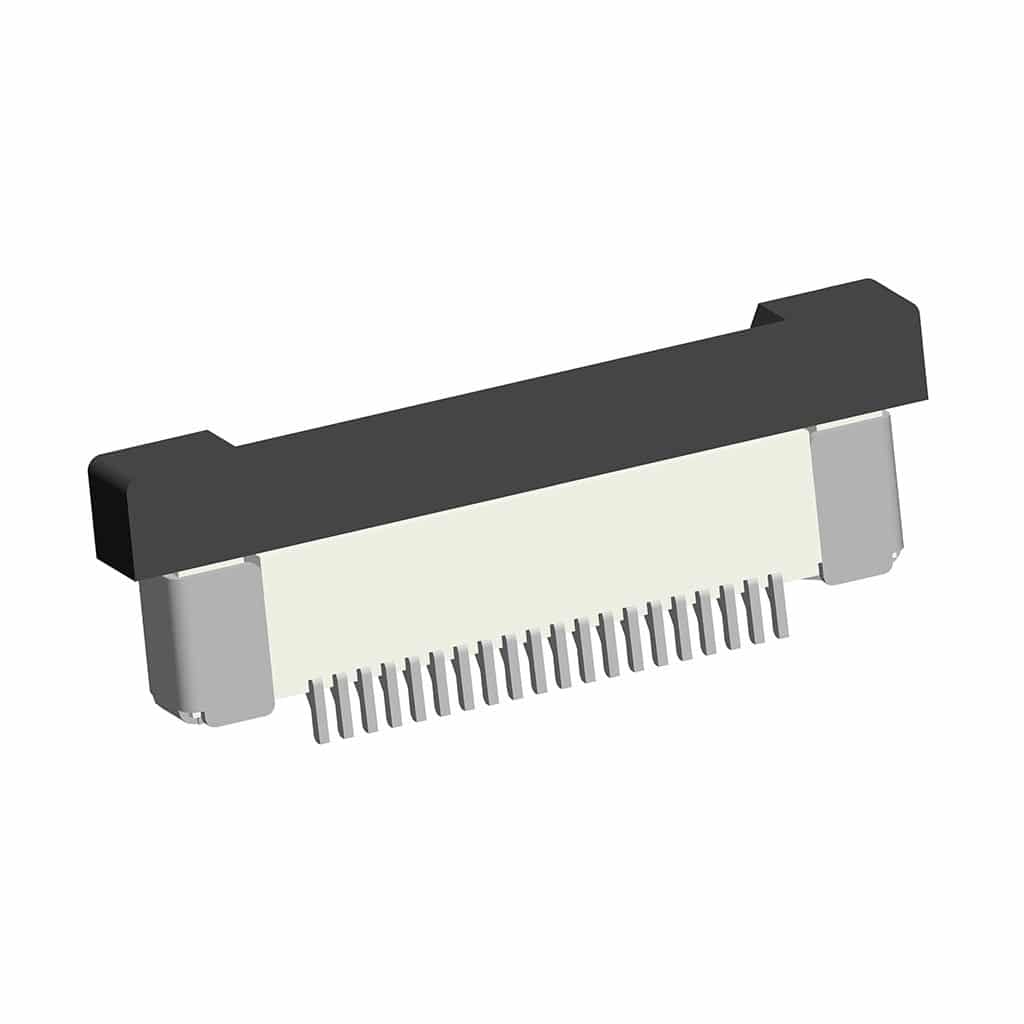

The DS1020-09 is a 0.5mm pitch Right Angle SMD ZIF connector from Connfly. Available from 2-60 positions, upper or lower contact. Thermoplastic – UL 94V-0 housing with Copper Alloy contacts. Available in reels or tubes. Used with the DS1057-03 Flat Flexi Cable. Other styles of FFC/FPC connectors are available from Connfly, pitches from 2.54mm to 0.3mm, right angle or vertical entry and both SMD and Conventional packages, please ask for further details.
- Pitch – 0.5mm
- Current rating 0.5A
- Housing – Thermoplastic (UL 94V-0)
- Temperature Range -40C + 105C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstanding Voltage – AC 100V 1 Minute
