FPC connector 0.5mm XF2M – Series

SKU: XF2M Categories: , , Manufacturer:
Download PDF

Product specs

Pitch

0.5mm
Number of Positions

10, 20, 30, 40, 50
Type

Double Contact

Product Description

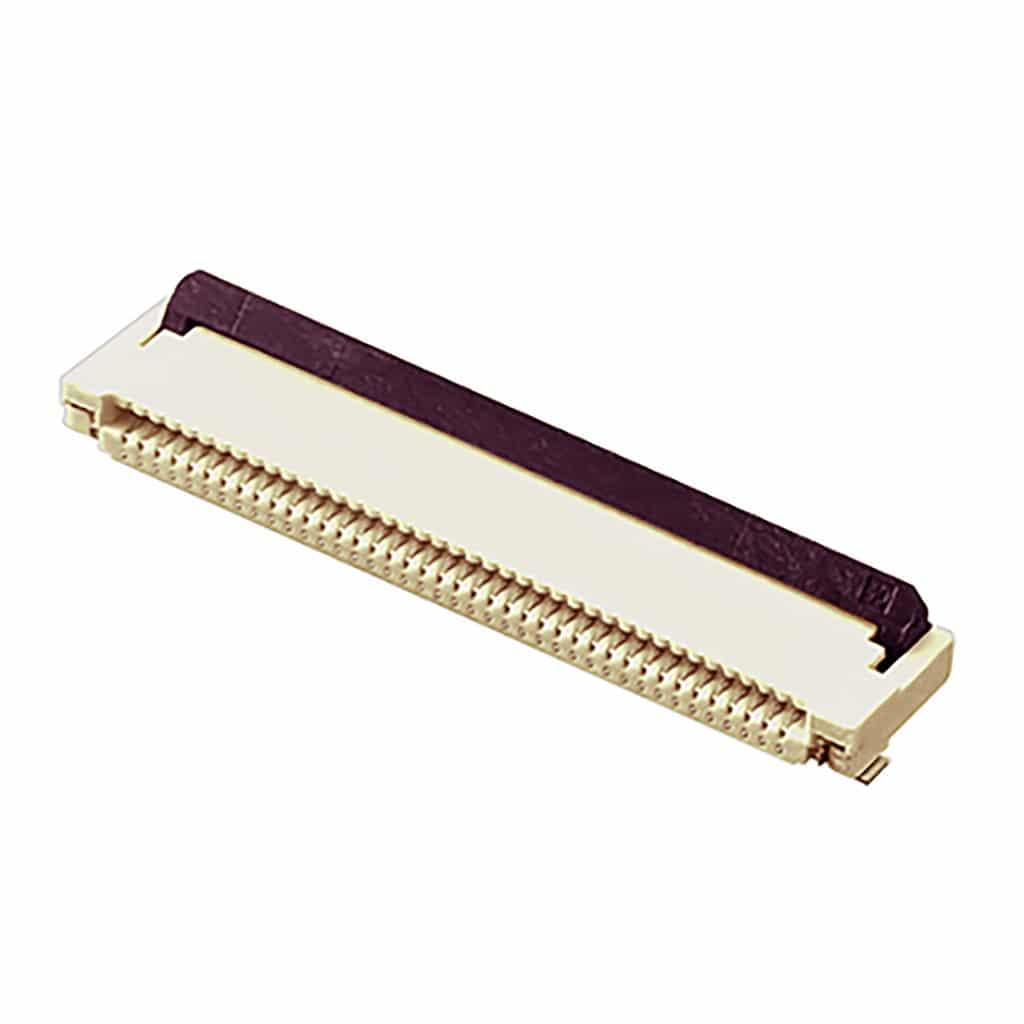

The XF2M is a FPC/FFC 0.5mm pitch Right Angle SMD connector from Omron. The XF2M has a double-sided contact that can reduce the number of required parts. The FPC/FFC connector features a rotary backlock mechanism in which a rotary slider for securing the FPC/FFC cable is mounted independently from the FPC/FFC socket, this gives an improved cable connection efficiency and a more reliable lock action. The four-sided housing construction of the FPC/FFC socket prevents displacement of the cable and a sharp “click” makes it easy to ascertain that the FPC/FFC cable is securely locked in position. The XF2M is available in two pitches – 0.5 mm and 1.0 mm – please contact our sales for further details.



  • Pitch – 0.5mm ~ 1.0MM
  • Current rating  0.5A
  • Housing – Thermoplastic (UL 94V-0)
  • Temperature Range  −30 to 85 °C
  • Contact Resistance – 50 mΩ max. (at 250V ) DC max.
  • Dielectric Withstanding Voltage – 250 V AC for 1 min. (leakage current: 1 mA max.)
