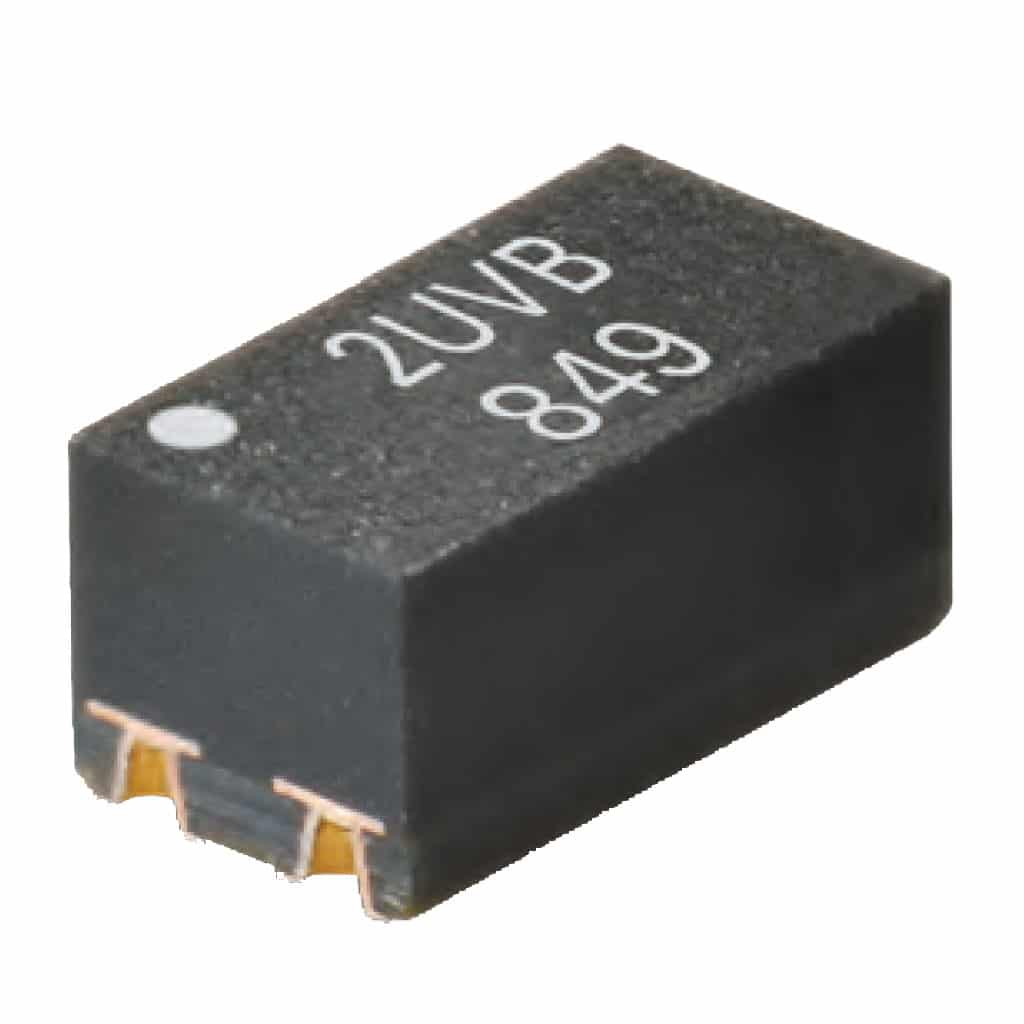

G3VM Mosfet Relays VSON Package

G3VM Mosfet Relays VSON Package , 40v/50V Load Voltage, Low Output Capacitance and Low ON Resistance

SKU: G3VM-21URxx-1 Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Package

VSON
Contact Arrangement

SPST (1NO)- 1 Form A
Load Voltage (V) Max

50V, 40V
Continuous load curr (mA)Max

100, 120, 140, 300
Dielec strength between I/O(Vrms)

500 Vrms
Cap between terminals (pF)

0.3pf, 0.45pf, 0.7pf, 12pf
Max res with output ON Typ

1Ω, 12Ω, 15Ω, 7Ω

Product Description

OMRON’s MOS FET Relays lead the industry in optical semiconductor technology, utilizing an input LED, Photodiode
Dome Array (PDA) used as photocoupler and MOS FET chip in the load switching current.
In addition to being maintenance free, the MOS FET relay features high-speed operation and compact size, further
promoting the replacement of mechanical relays.
