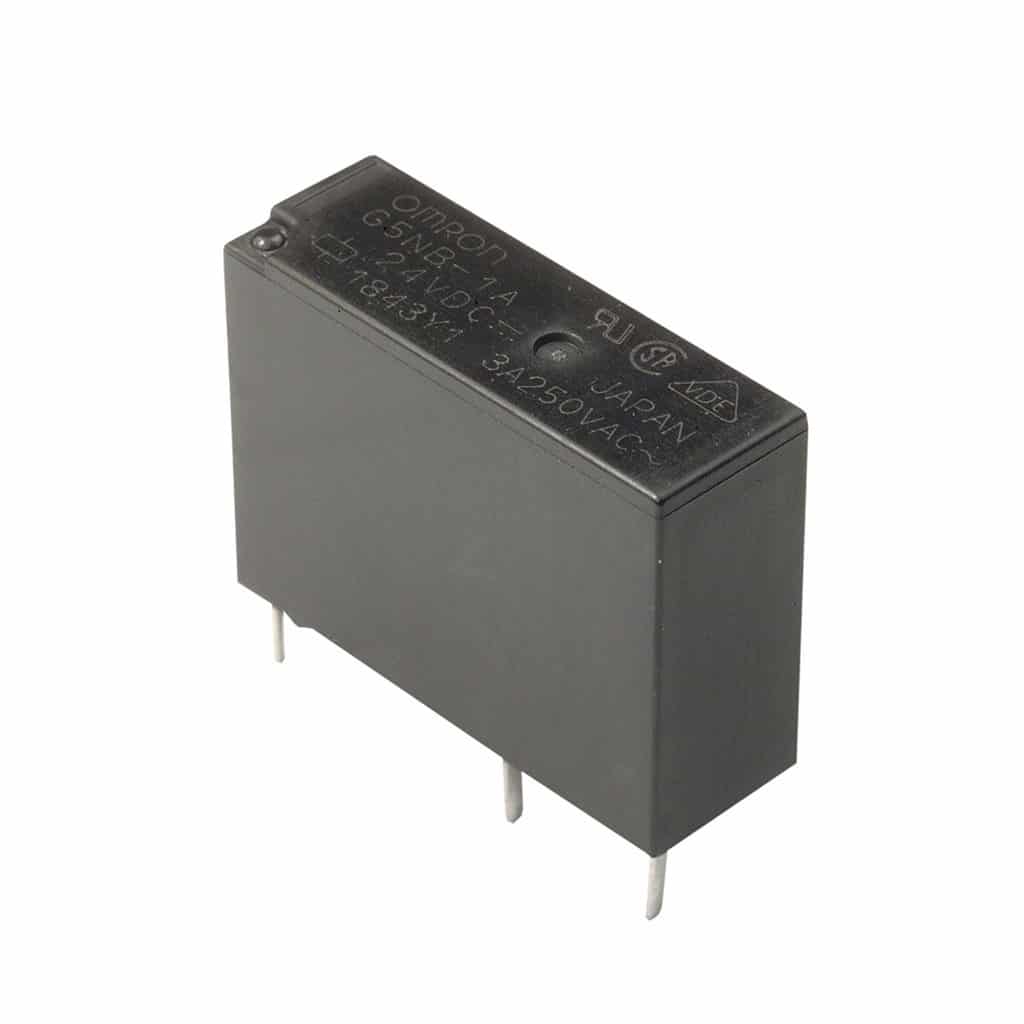

G5NB – 5a Slim Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 12Vdc, 18Vdc, 24Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 3A, 5A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | Ag Alloy |
| Coil Resistance (Ohm) | 1620Ω, 125Ω, 720Ω, 2880Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
The Omron G5NB relay is a very compact relay with upto 5a switching capabilities. Available between 5 and 24vdc.
- Highly efficient magnetic circuit for high sensitivity (200 mW).
- Small, yet provides 10-kV impulse withstand voltage (between coil
and contacts). - Standard model conforms to UL/CSA/VDE standards.
- Satisfies EN61010 reinforced insulation requirements.
- IEC/EN 60335-1 conformed. (-HA Model)
- IEC/EN 60079-15 conformed. (Only for G5NB-1A4, G5NB-1A4-E Model)
