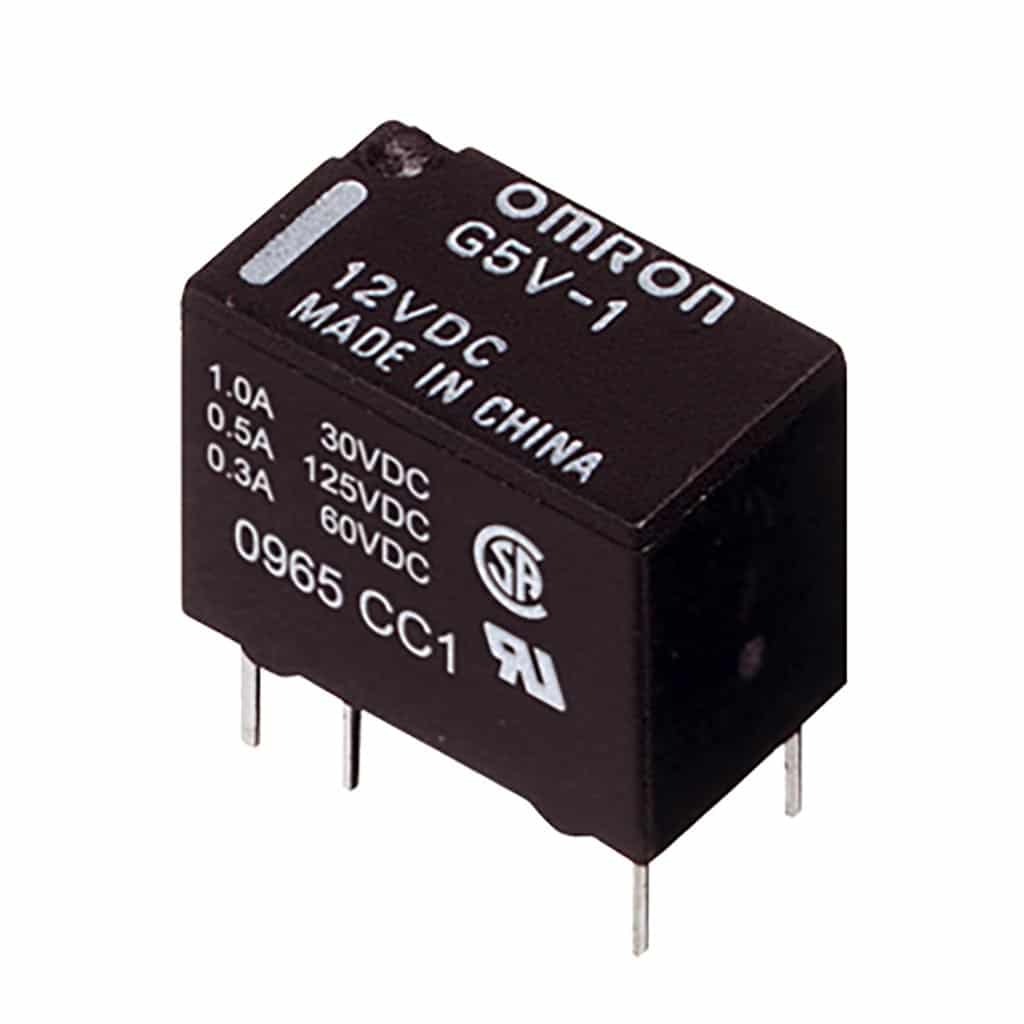

G5V-1 Subminiature Relay

G5V-1 Subminiature Relay

SKU: G5V-1 Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc
Contact Arrangement

SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

1A
Sealing

Fully Sealed
Contact Material

Au Alloy + Ag Plated
Coil Resistance (Ohm)

167, 240Ω, 3840Ω, 540Ω, 60Ω, 960Ω
Mounting

PCB
Type

Signal Relay

Product Description

G5v-1 is a very compact relay with a high sensitivity coil at 150mw. Available from 3v upto 24vdc.

90c version available upon request.



  • Ultra-miniature at 12.5 × 7.5 × 10 mm (L × W × H).
  • Wide switching power of 1 mA to 1 A.
  • High sensitivity: 150 mW nominal coil power consumption.
  • Fully-sealed construction offering environment resistance.
  • Conforms to FCC Part 68 requirements for coil to contacts.
    (1,500 V, 10 × 160 μs)
  • Models for ambient temperatures up to 90°C added to series.
