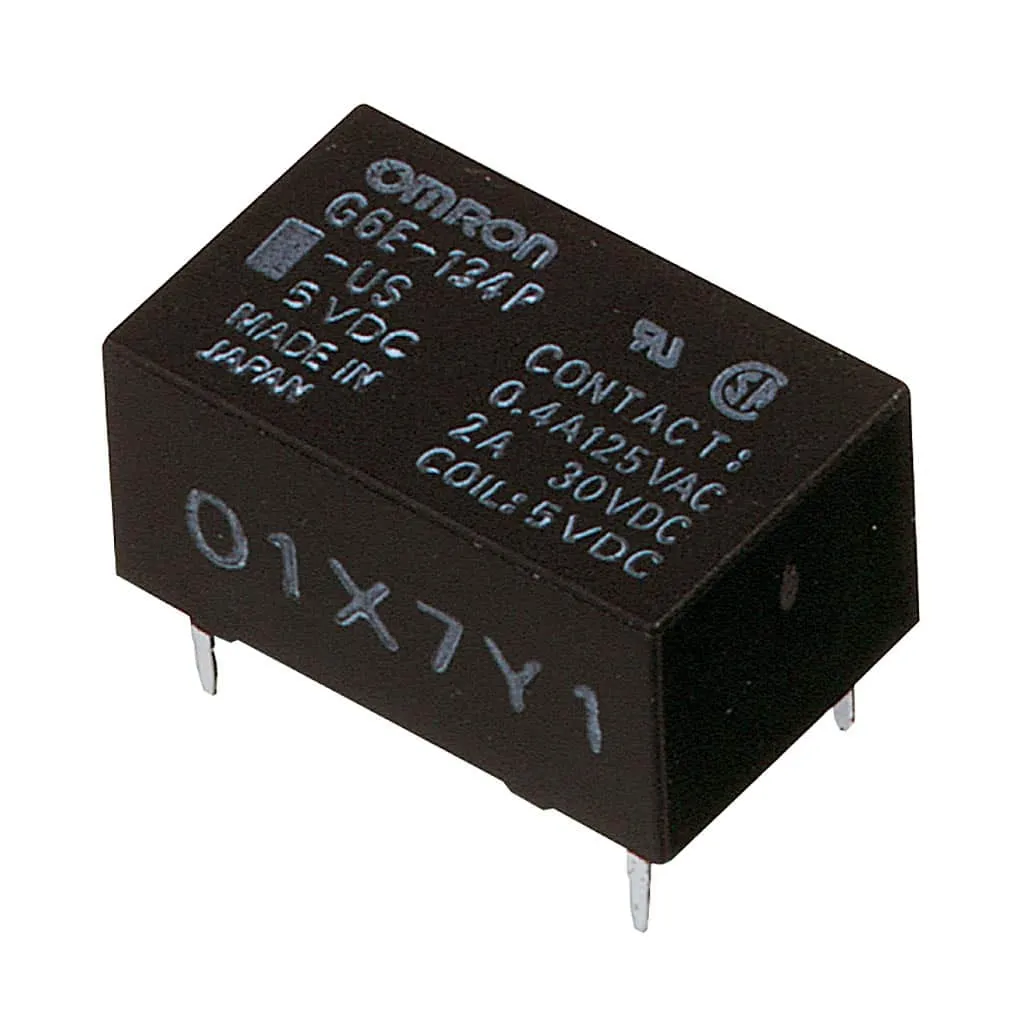

G6E Sensitive Subminiature Signal Relay

G6E Sensitive Subminiature Signal Relay

SKU: G6E Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc
Contact Arrangement

SPDT (1CO) – 1 Form C
Coil Type

Non Latching, 1 Coil Latching, 2 Coil Latching
Contact Rating (Amps)

3A
Sealing

Fully Sealed
Contact Material

Au Alloy + Ag
Coil Resistance (Ohm)

203Ω, 63Ω, 90Ω, 125Ω, 360Ω, 1440Ω, 5760Ω, 180Ω, 405Ω, 720Ω, 2880Ω
Mounting

PCB
Type

Signal Relay

Product Description

The G6E relay is an 8mm high relay offering a 3a switching capability Available in non latching and single and double latching variants.



  • High sensitivity: 98-mW (Rated power consumption:
    200mW) pickup coil power.
  • Impulse withstand voltage of 1,500V (10×160 μs) meets
    FCC requirements.
  • Stick packing employed in consideration of supporting
    automatic implementation.
  • Plastic-sealed model that allows automatic soldering.
  • New series of ultrasonically cleanable models is available.
  • Standard model conforms to UL/CSA standards.
