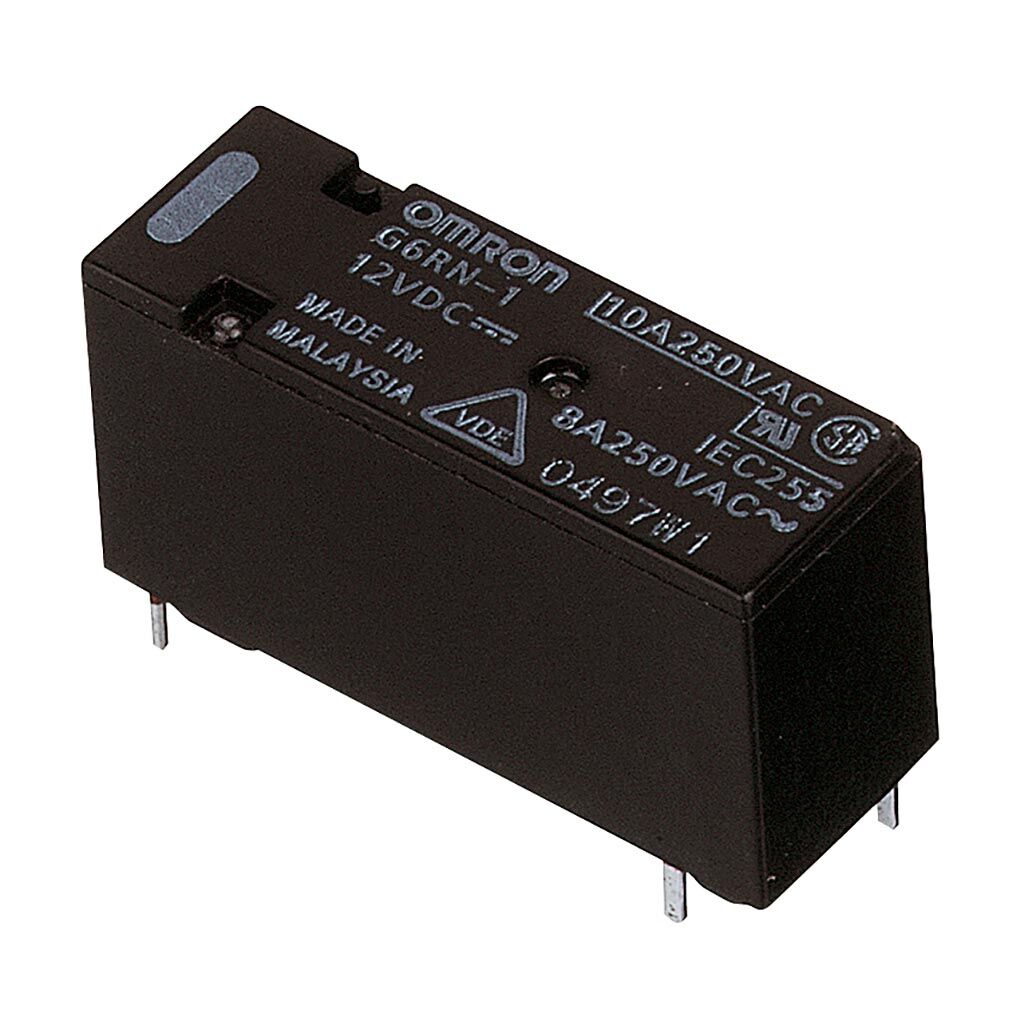

G6RN 8a Power Relay

SKU: G6RN Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 12Vdc, 24Vdc
Contact Arrangement

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

8A
Sealing

Fully Sealed
Contact Material

Ag-Alloy + Gold Plated
Coil Resistance (Ohm)

114Ω, 2620Ω, 655Ω, 164Ω
Mounting

PCB
Type

Power Relay

Product Description

The G6RN is a 8a switching relay with a height of only 15mm.

High sensitivity coil of only 220mw.

  • Low-profile height of 15 mm (approx. 60% the height of the Omron
    G2R model).
  • Capable of switching with 8 A at 250 VAC despite its small size.
  • High sensitivity with 220mW power consumption.
  • Offers high insulation with insulation distance of 8 mm and impulse
    withstand voltage of 10kV between coil and contacts.
  • Satisfies ambient operating temperature requirement of 85°C.
  • Standard model conforms to VDE standards.
