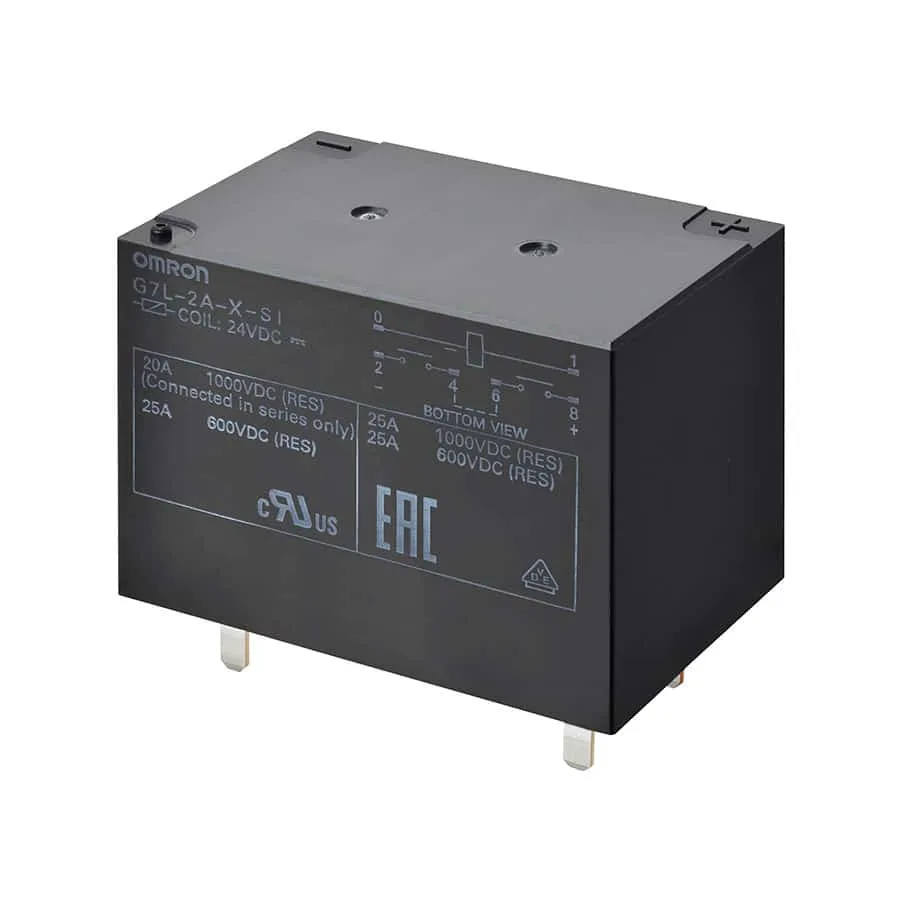

G7L-X PCB Compact Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 12Vdc, 24Vdc |
| Contact Arrangement | DPST (2NO) -2 Form A |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 20A, 30A |
| Sealing | Flux Proof |
| Contact Material | Ag Alloy |
| Coil Resistance (Ohm) | 250Ω, 63Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
Compact Power Relay Capable of Switching 1,000 VDC Loads
Features:
- DC high-capacity switching for both normal and reverse polarity is available with the addition of the reverse polarity specification.
- Two poles wired in series to break or switch 600 to 1,000 VDC.
- Contributes to a lower power consumption. (low power consumption of approx. 600 mW at 50% reduced coil voltage).
- UL and EN conformed.
- Designed for safety with 6.0-mm contact gap (two-pole series wiring).
- A series of low-contact resistance power relays with an initial contact resistance of 10 mΩ max. (with conditions of 5 VDC, 1 A).
