HF115F-A - AC Power Relay
HF115F-A - AC Power Relay - Image 2
HF115F-A - AC Power Relay - Image 3
HF115F-A - AC Power Relay - Image 4
HF115F-A - AC Power Relay - Image 5
HF115F-A - AC Power Relay - Image 6
HF115F-A - AC Power Relay - Image 7
HF115F-A - AC Power Relay - Image 8
HF115F-A - AC Power Relay - Image 9

HF115F-A – AC Power Relay

SKU: HF115F-A Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

24Vac, 115Vac, 230Vac
Contact Arrangement

DPST (2NO) -2 Form A, DPST (2NC) -2 Form B, DPDT (2CO) -2 Form C, SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

8A, 12A, 16A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgCdO, AgNi, AgNi+Au Plated, AgSnO+Au Plated, AgSnO2, AgSnO2+Au Plated
Coil Resistance (Ohm)

350Ω, 8100Ω, 32500Ω
Mounting

PCB
Type

Power Relay

Product Description

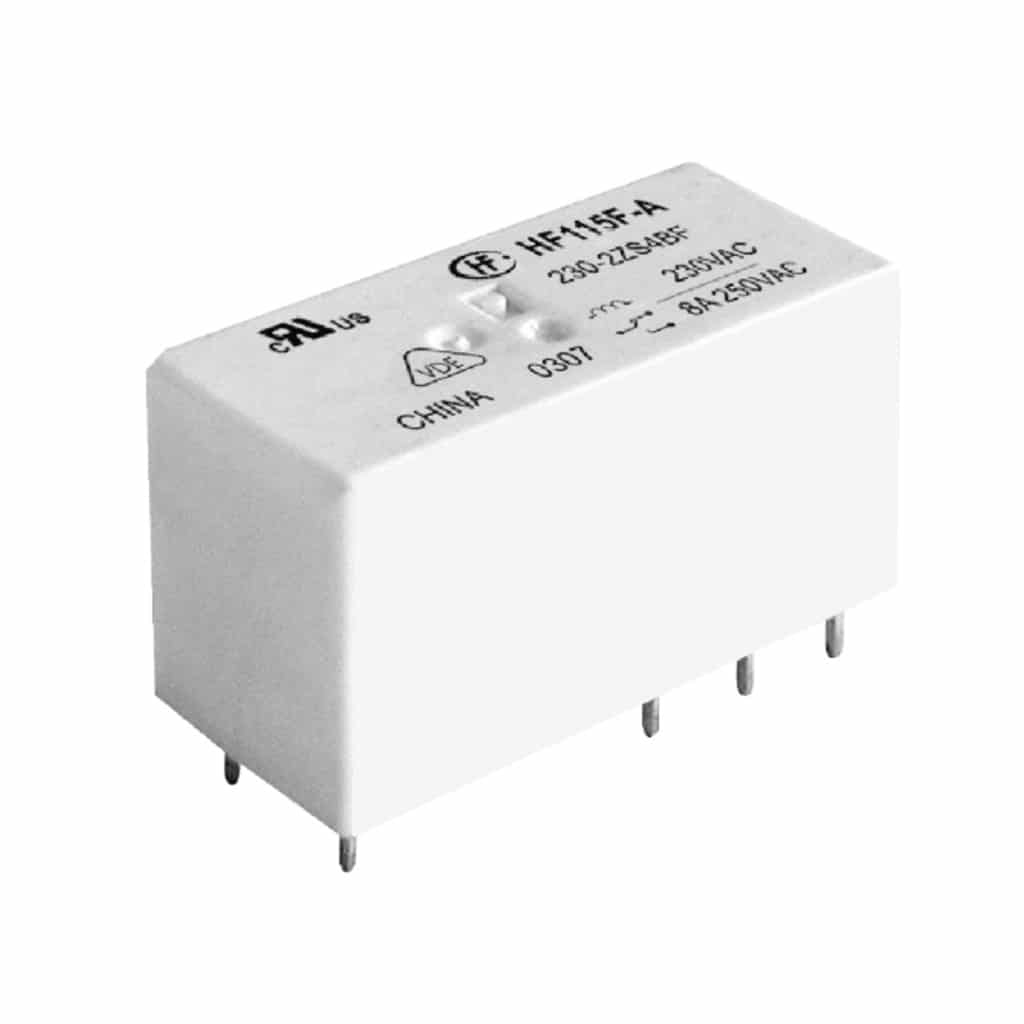

Easby Electronics are able to offer several different variants of the popular HF115f series from HongFa. This HF115F-A is a AC relay offering 15.7mm height and offering a 10mm creepage clearance.

Other HF115 series cover DC Coils,  105c temperature,  250mw coil, High-Inrush, 125C temperature and Latching.

  • AC voltage coil type
  • Non Latching
  • 16A switching capability
  • 1 & 2 pole configurations
  • 5kV dielectric strength (between coil and contacts)
  • Low height: 15.7 mm
  • Creepage distance: 10mm
  • Meeting VDE 0700, 0631 reinforce insulation
  • Product in accordance to IEC 60335-1 available
  • Sockets available
  • Plastic sealed and flux proofed types available
  • UL insulation system: Class F
  • Environmental friendly product (RoHS compliant)
  • Outline Dimensions: (29.0 x 12.7 x 15.7) mm
  • Environmental friendly product (RoHS compliant)
  • Outline Dimensions: (29.0 x 12.7 x 15.7) mm
