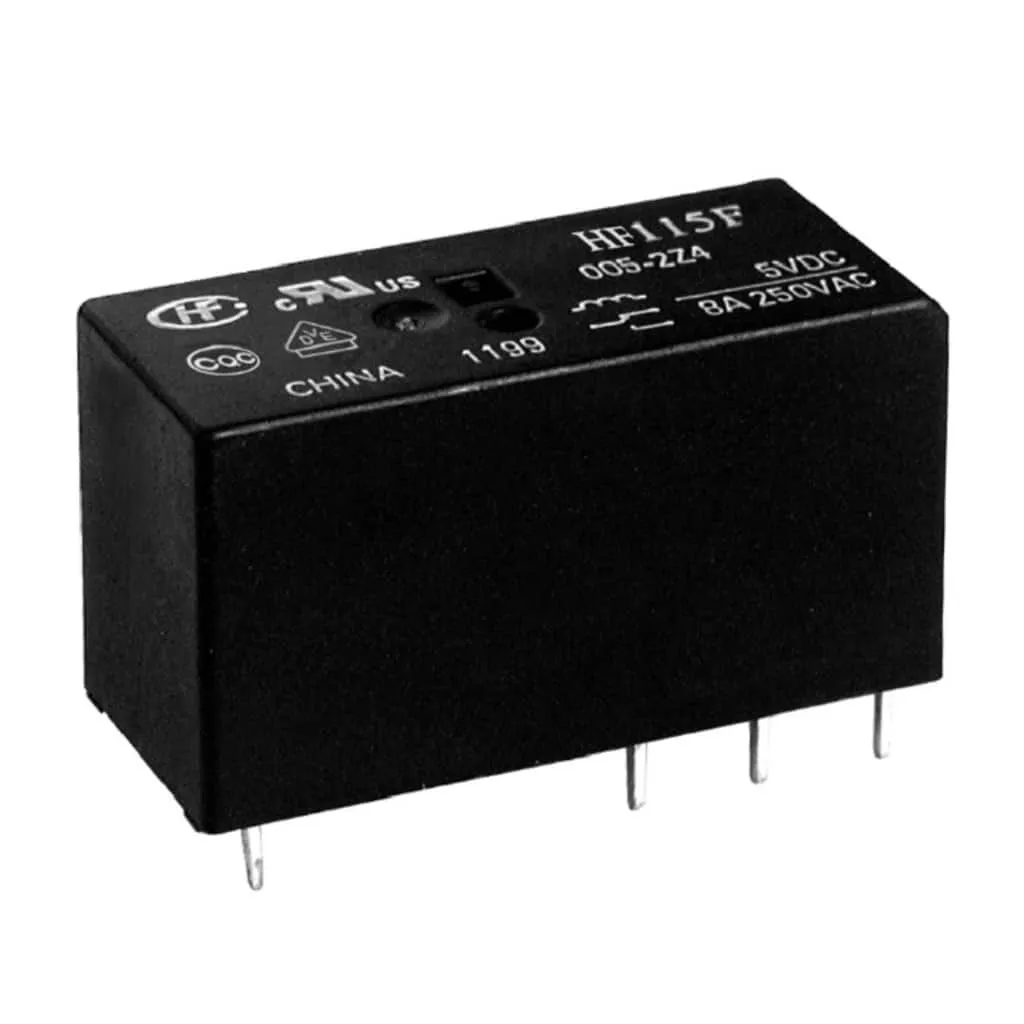

HF115F – DC Power Relay

SKU: HF115F Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc, 60Vdc, 110Vdc

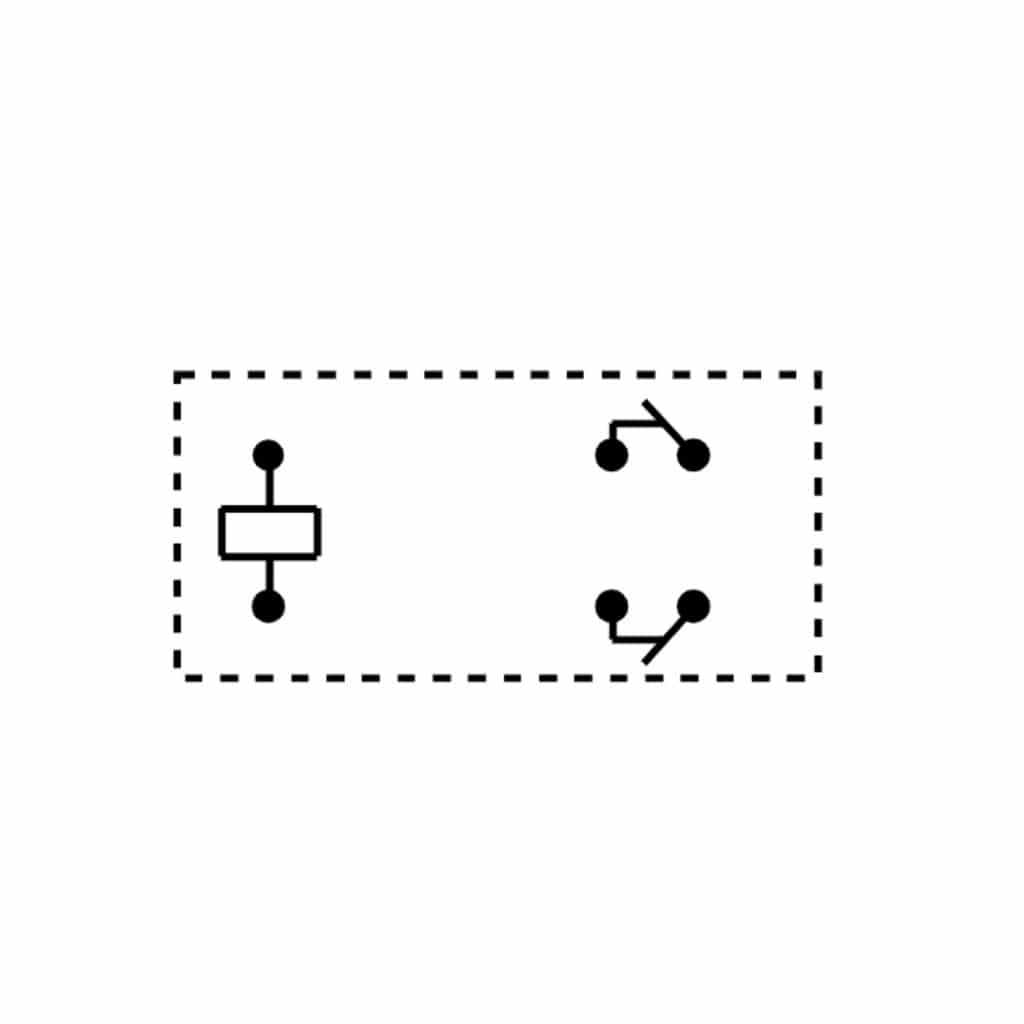

Contact Arrangement

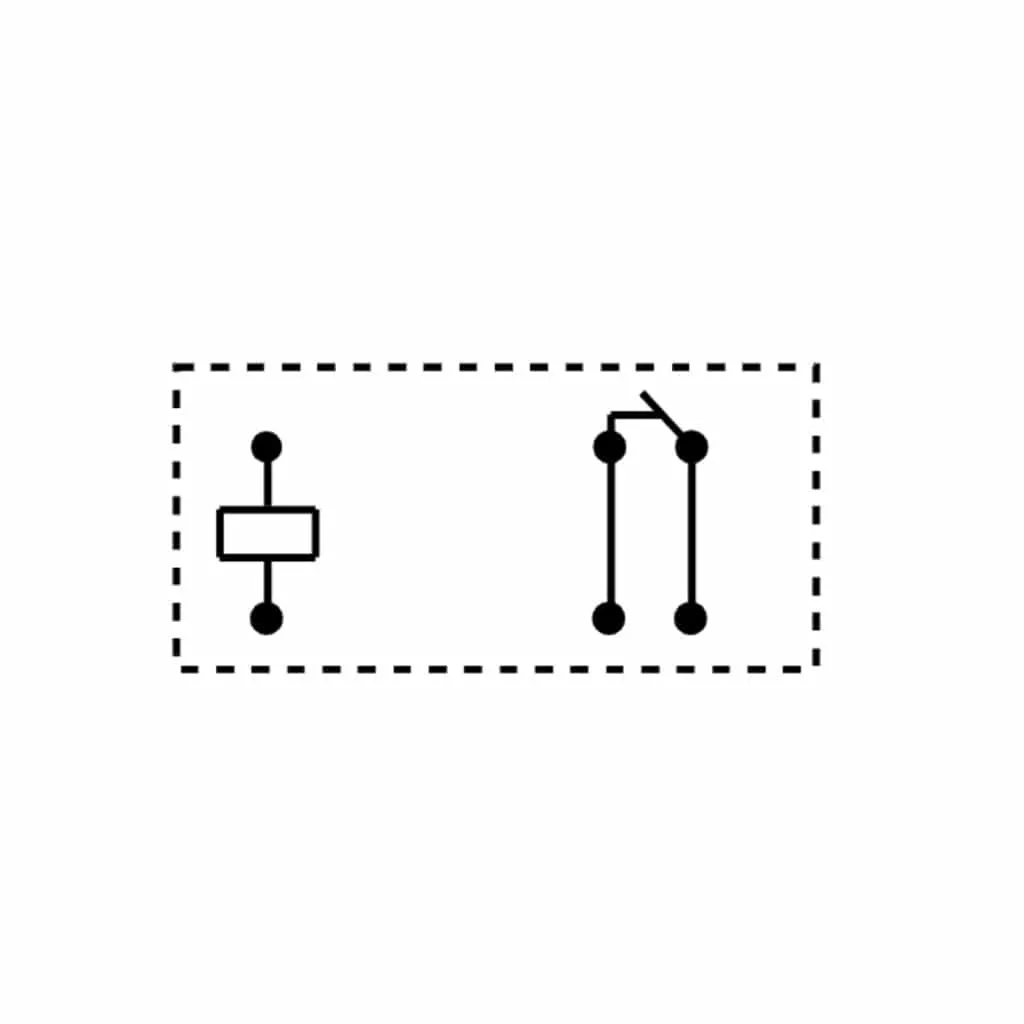

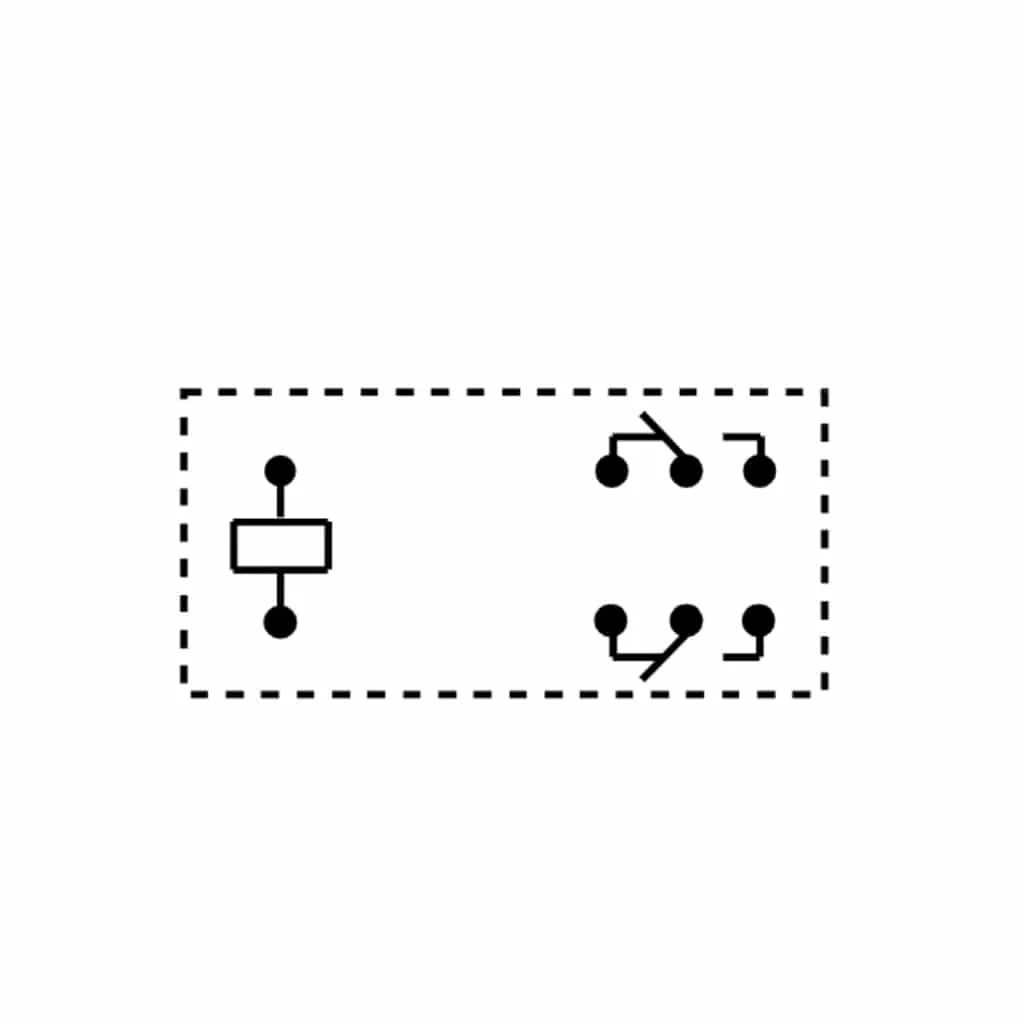

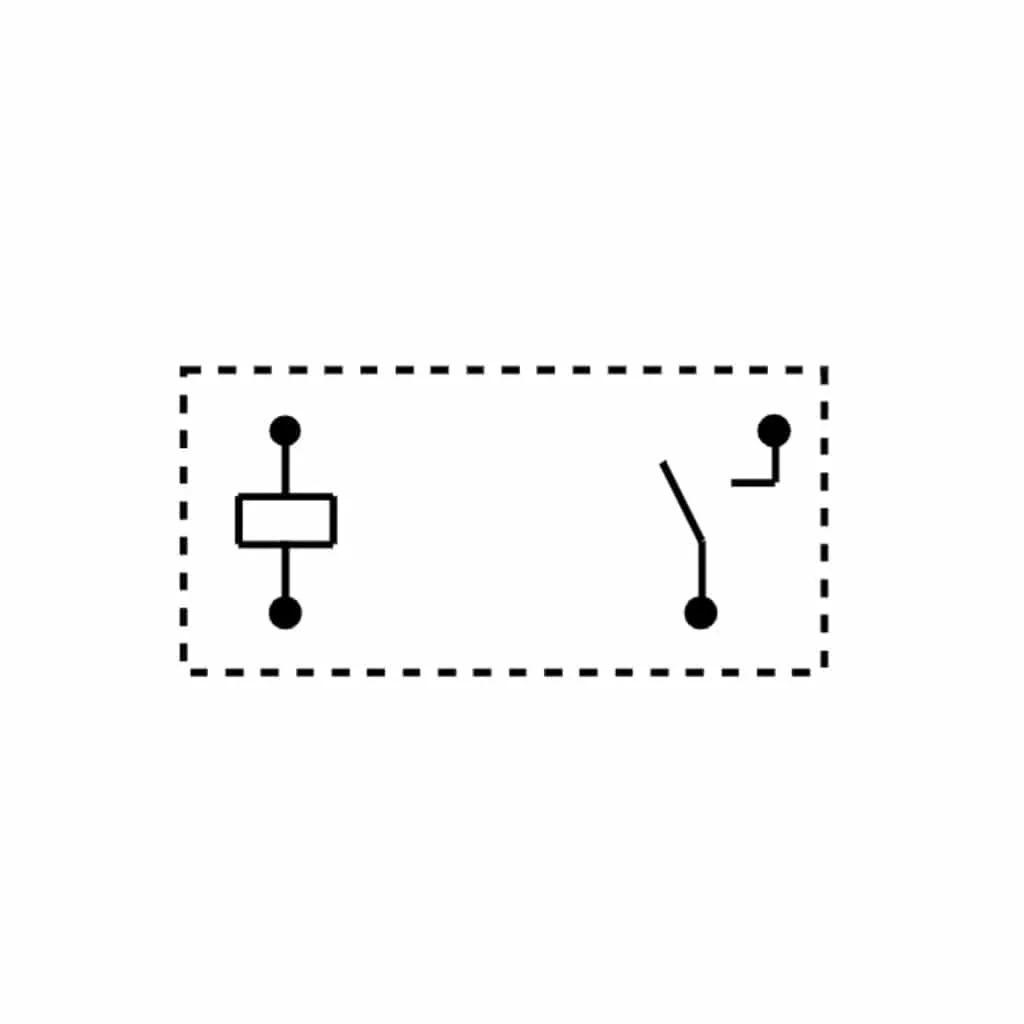

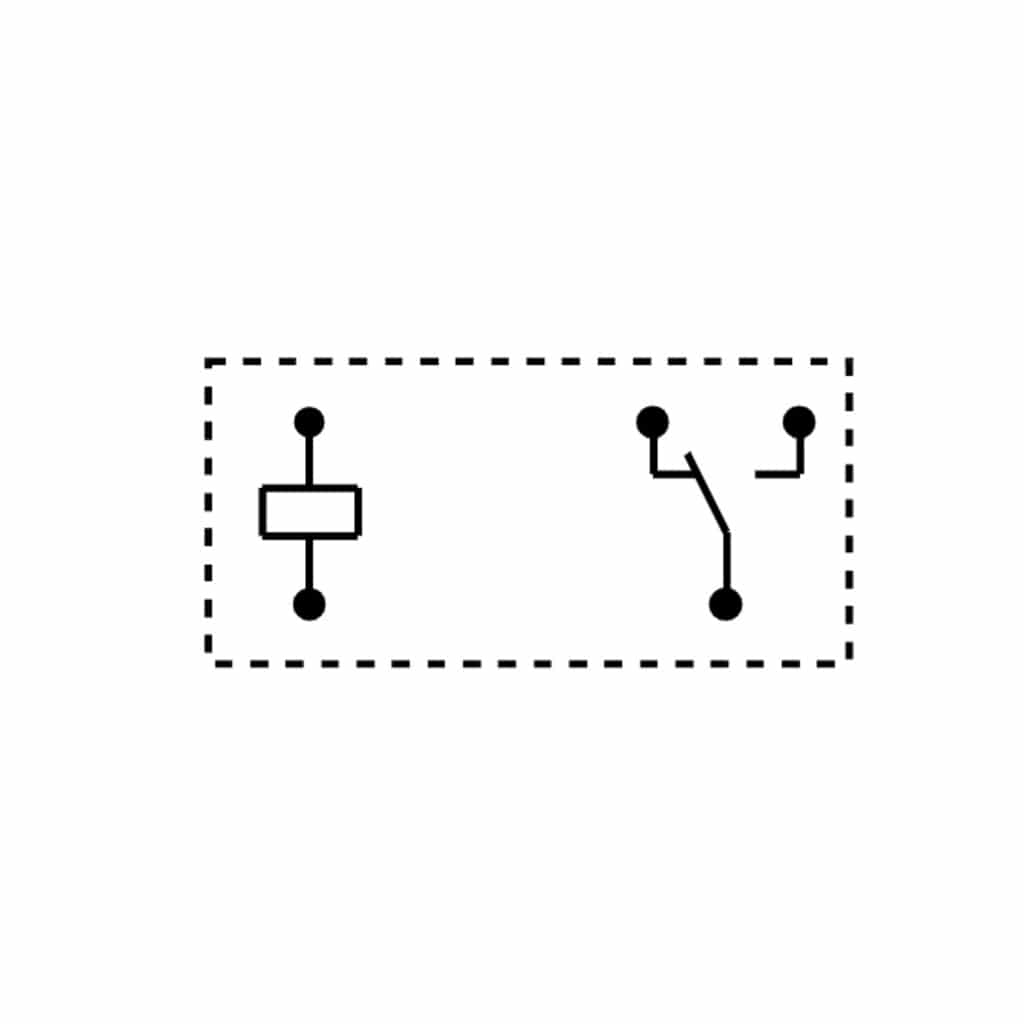

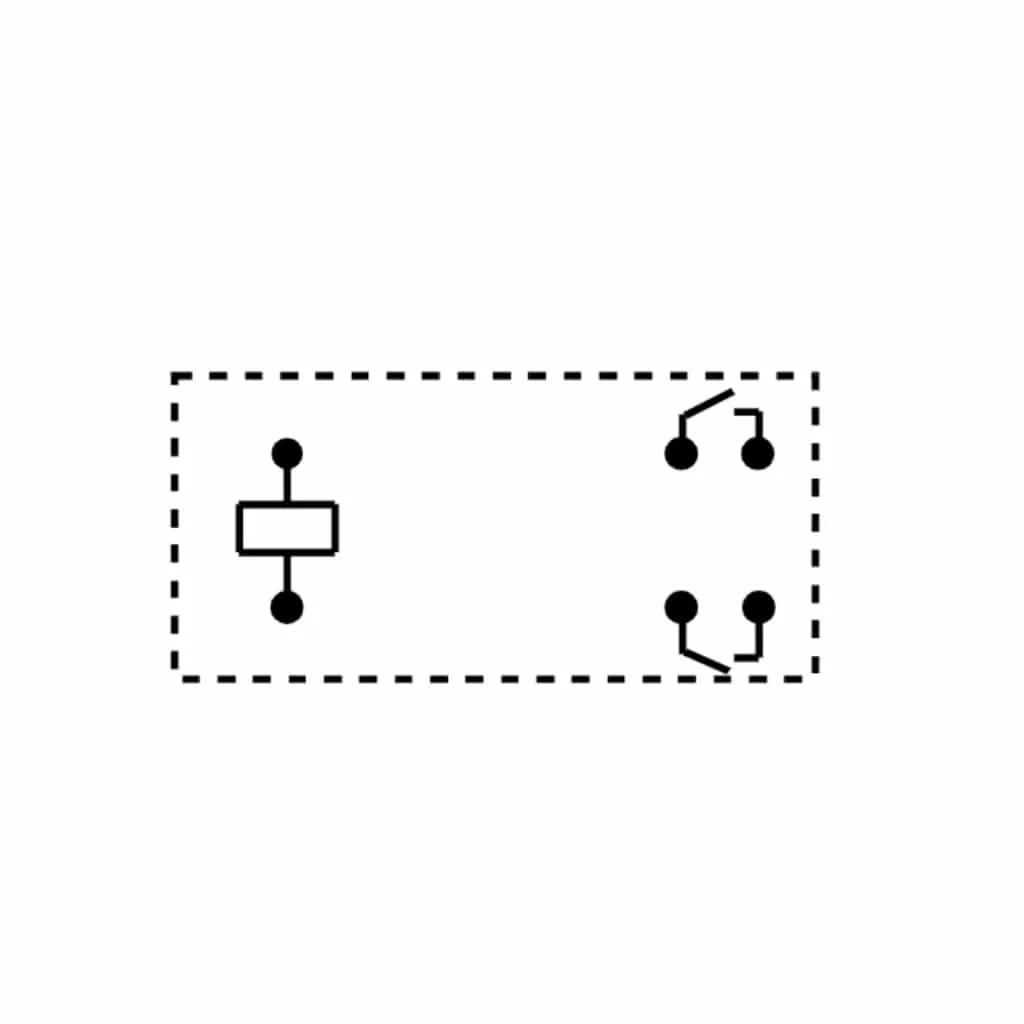

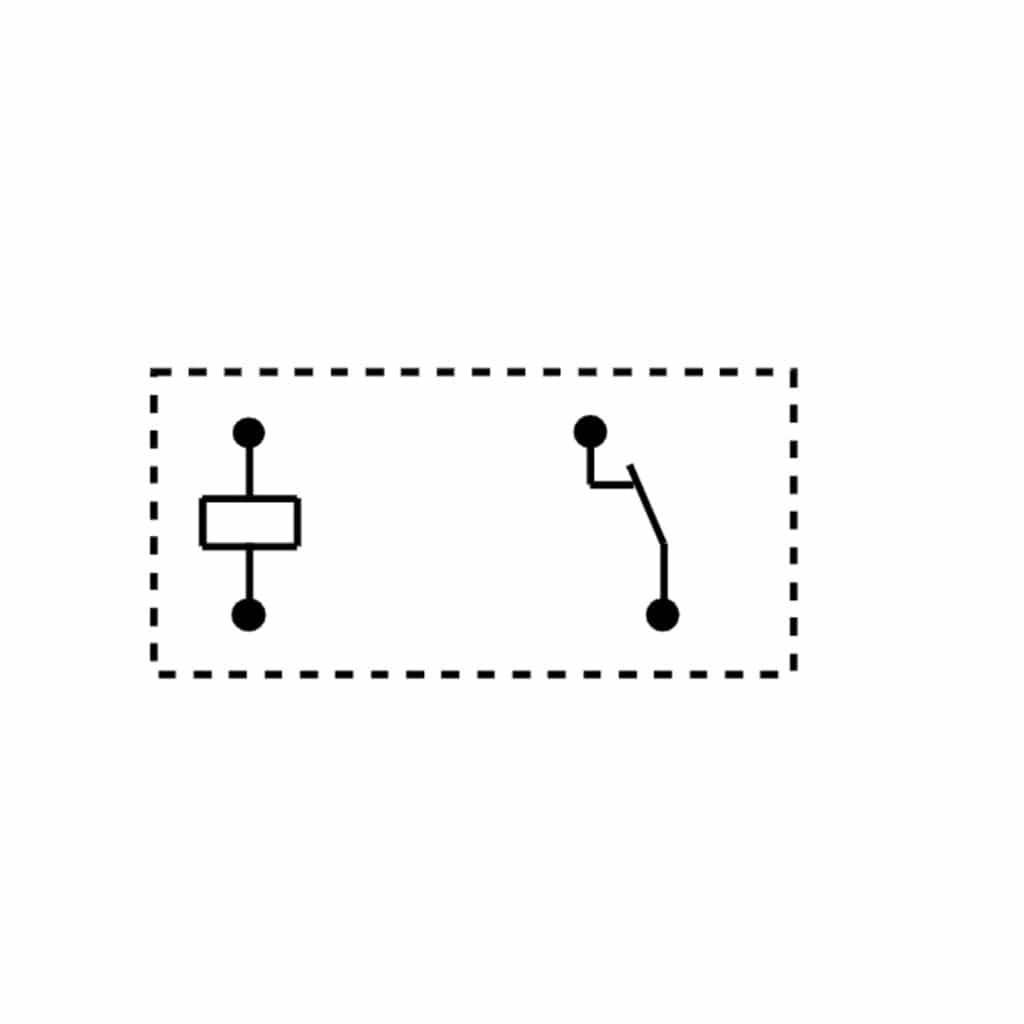

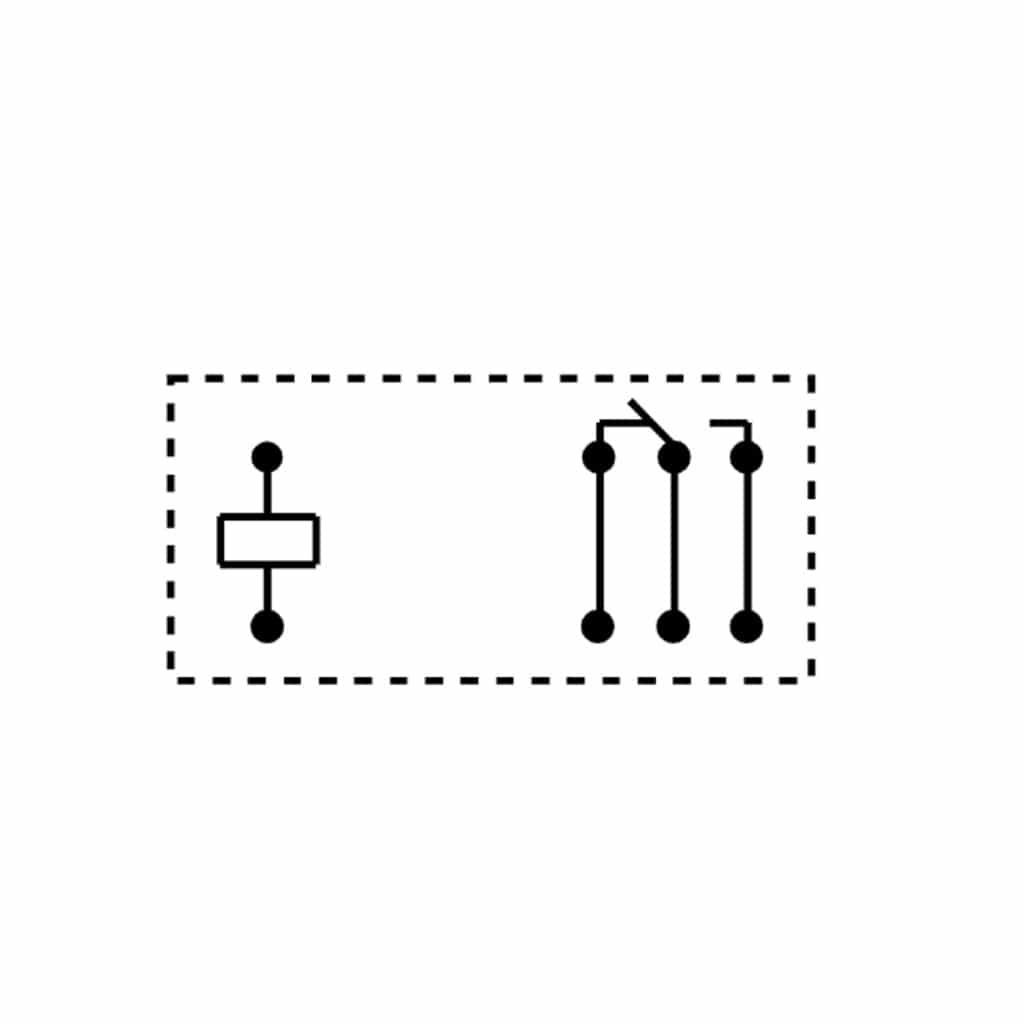

DPST (2NO) -2 Form A, DPST (2NC) -2 Form B, DPDT (2CO) -2 Form C, SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

8A, 12A, 16A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgCdO, AgNi, AgSnO2
Coil Resistance (Ohm)

62Ω, 90Ω, 202Ω, 360Ω, 810Ω, 1440Ω, 5760Ω, 7500Ω, 25200Ω
Mounting

PCB
Type

Power Relay

Product Description

Easby Electronics are able to offer several different variants of the popular HF115f series from HongFa. The HF115F is a DC relay offering 15.7mm height and offering a 10mm creepage clearance.

Other HF115 series cover AC Coils,  105c temperature,  250mw coil, High-Inrush, 125C temperature and Latching.

  • 16A switching capability
  • 5kV dielectric strength     (between coil and contacts)
  • Creepage distance: 10mm
  • Meeting VDE 0700, 0631 reinforce insulation
  • Product in accordance to IEC 60335-1 available
  • Sockets available
  • Plastic sealed and flux proofed types available
  • UL insulation system: Class F available
  • Environmental friendly product (RoHS compliant)
  • Outline Dimensions: (29.0 x 12.7 x 15.7) mm
