HF115F-L Double pole Latching Relay

SKU: HF115F-L 2 Pole Category: Manufacturer:

Product specs

Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc

Contact Arrangement

DPST (2NO) -2 Form A, DPDT (2CO) -2 Form C

Coil Type

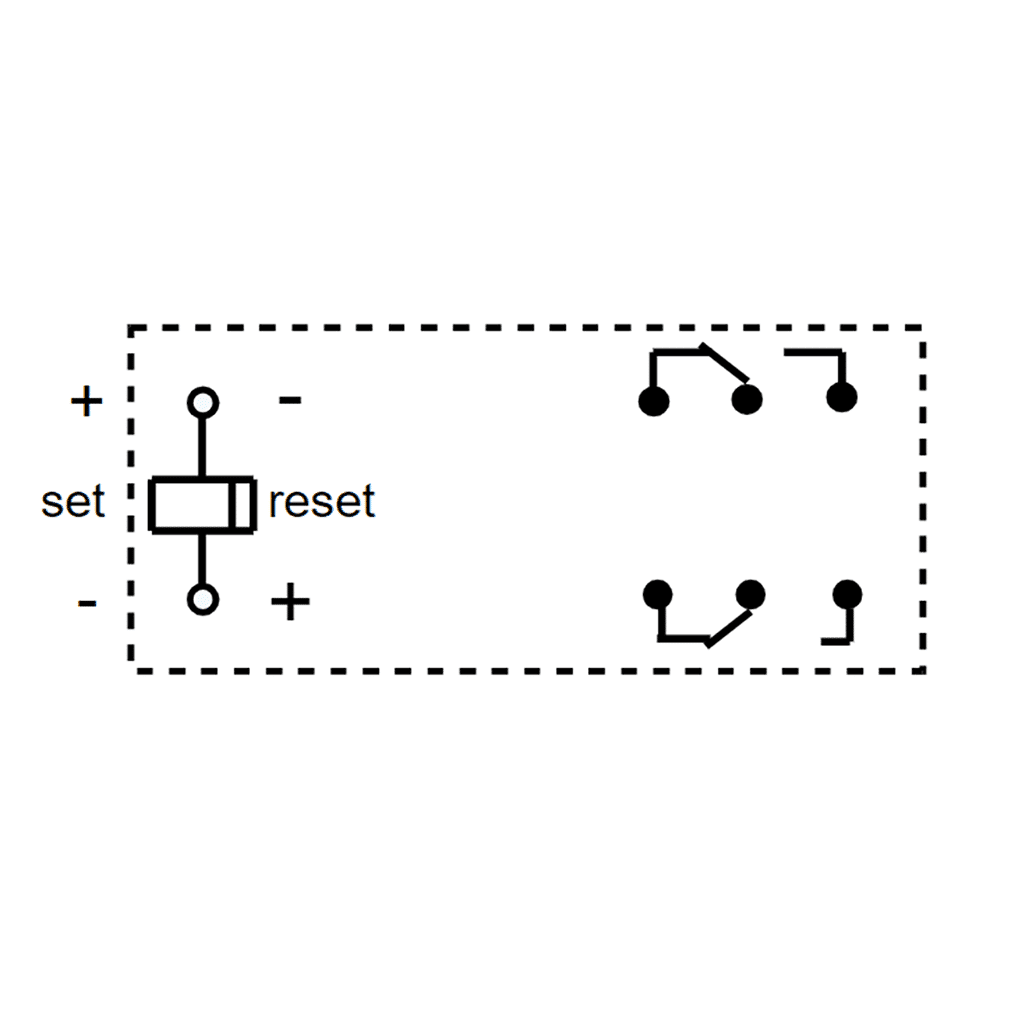

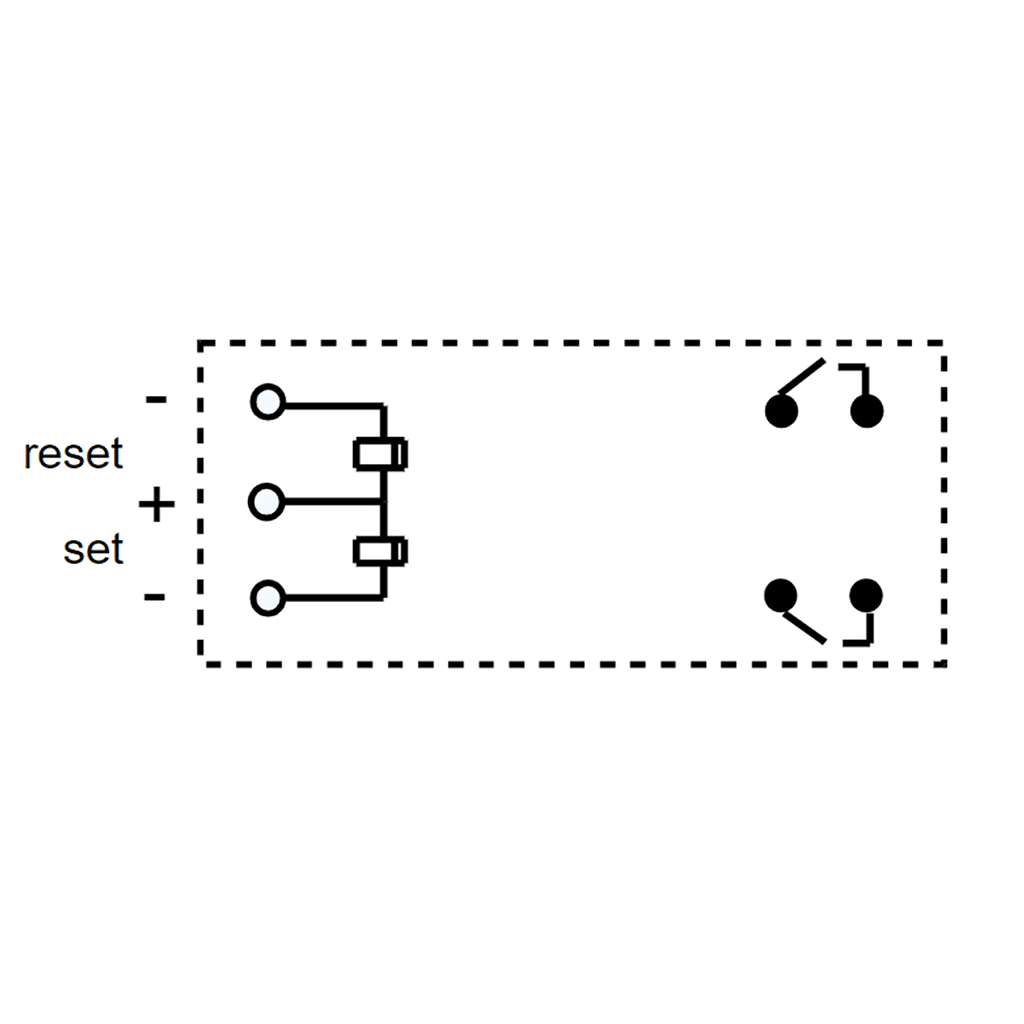

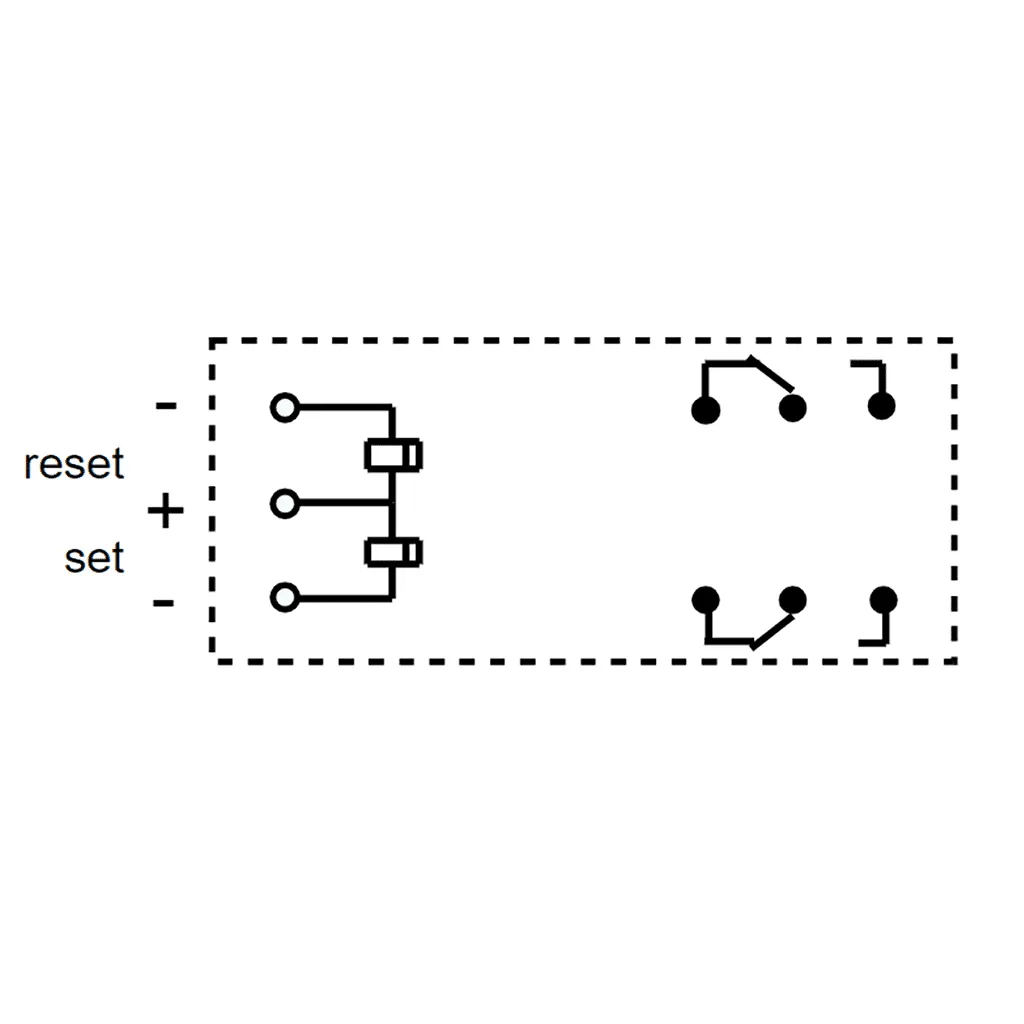

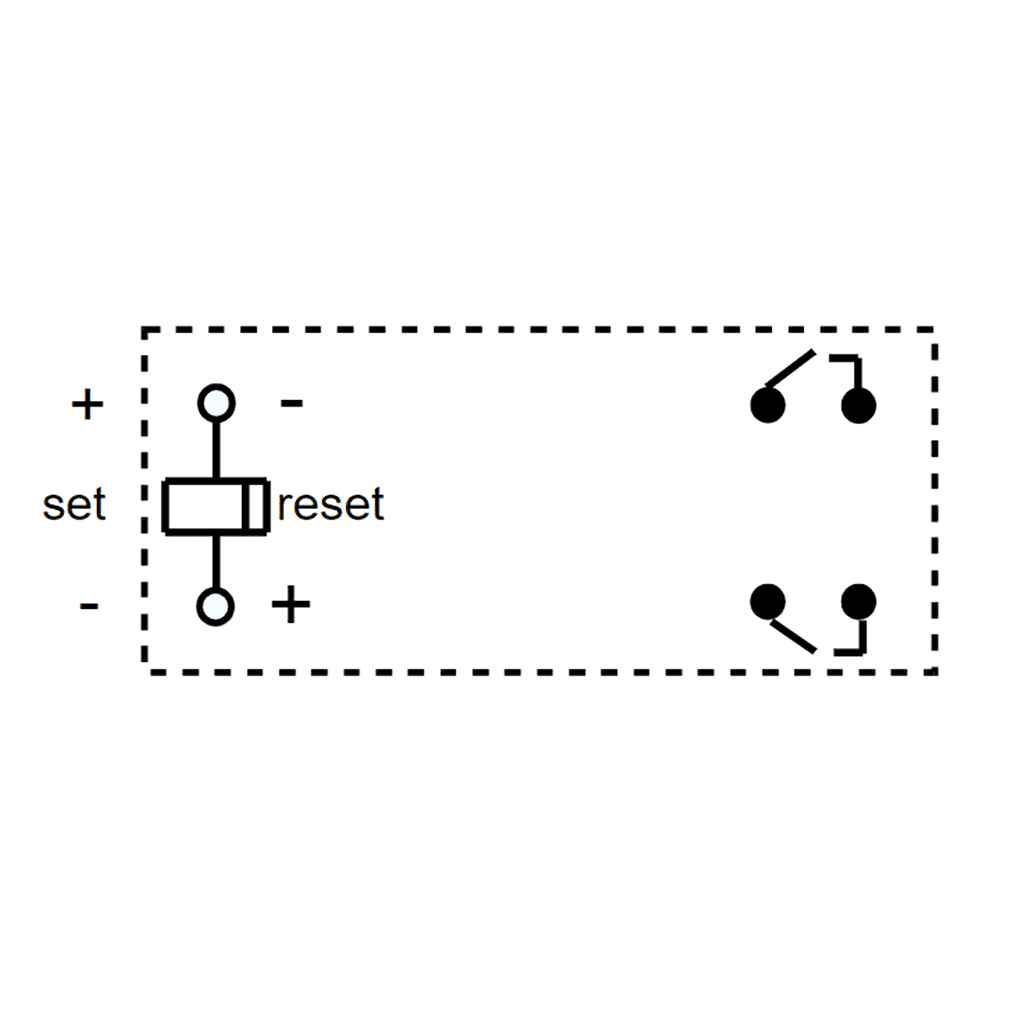

1 Coil Latching, 2 Coil Latching

Contact Rating (Amps)



Flux Proof, Fully Sealed

Contact Material


Coil Resistance (Ohm)

135Ω, 240Ω, 42Ω, 886Ω, 55Ω, 62Ω, 90Ω, 202Ω, 360Ω, 1440Ω




Power Relay

Product Description

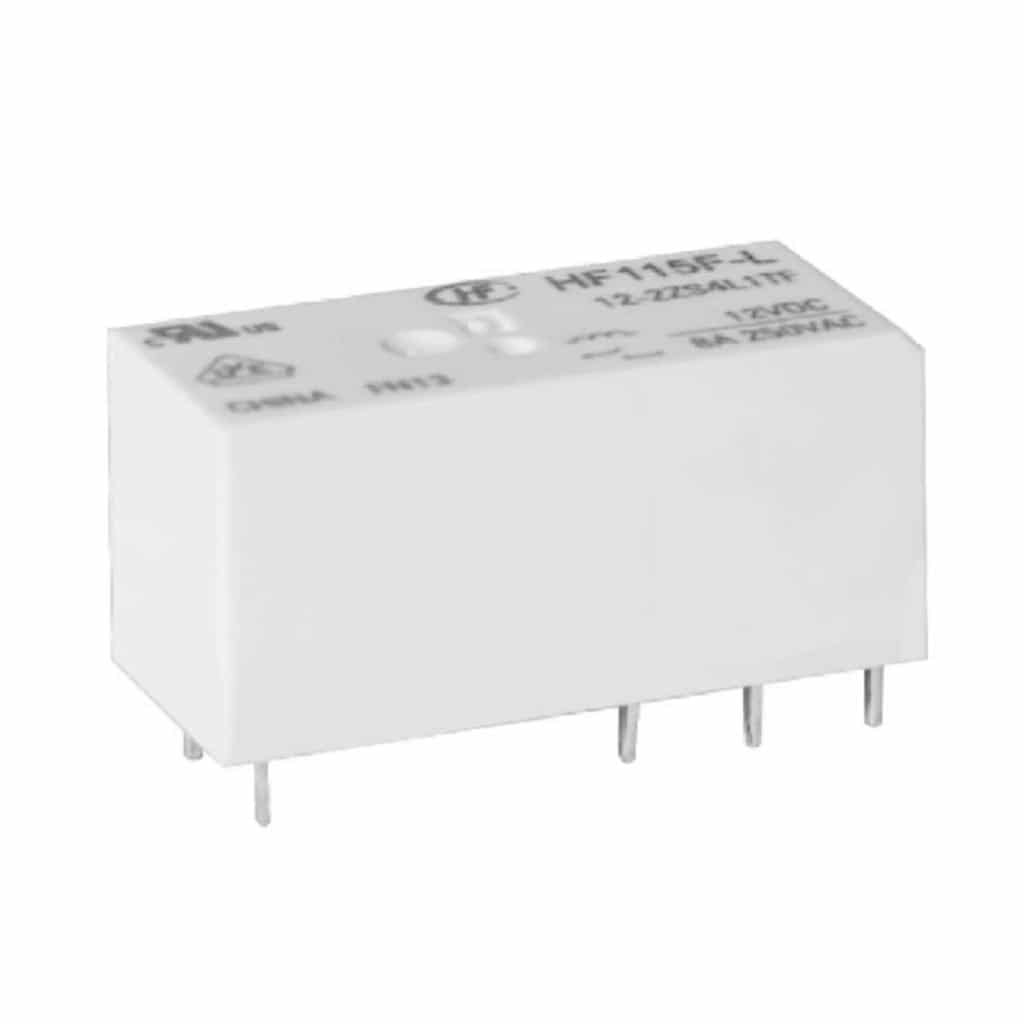

HF115F-L is a Double pole relay from HongFa offering Latching capabilities.

Available from 5vdc upto 24vdc coil voltage.

  • Latching relay
  • Low height: 15.7 mm
  • 10A switching capability
  • 5kV dielectric strength     (between coil and contacts)
  • Creepage distance: 11mm-NO/10mm-CO version
  • Meeting VDE 0700, 0631 reinforce insulation
  • Product in accordance to IEC 60335-1 available
  • UL insulation system: Class F
