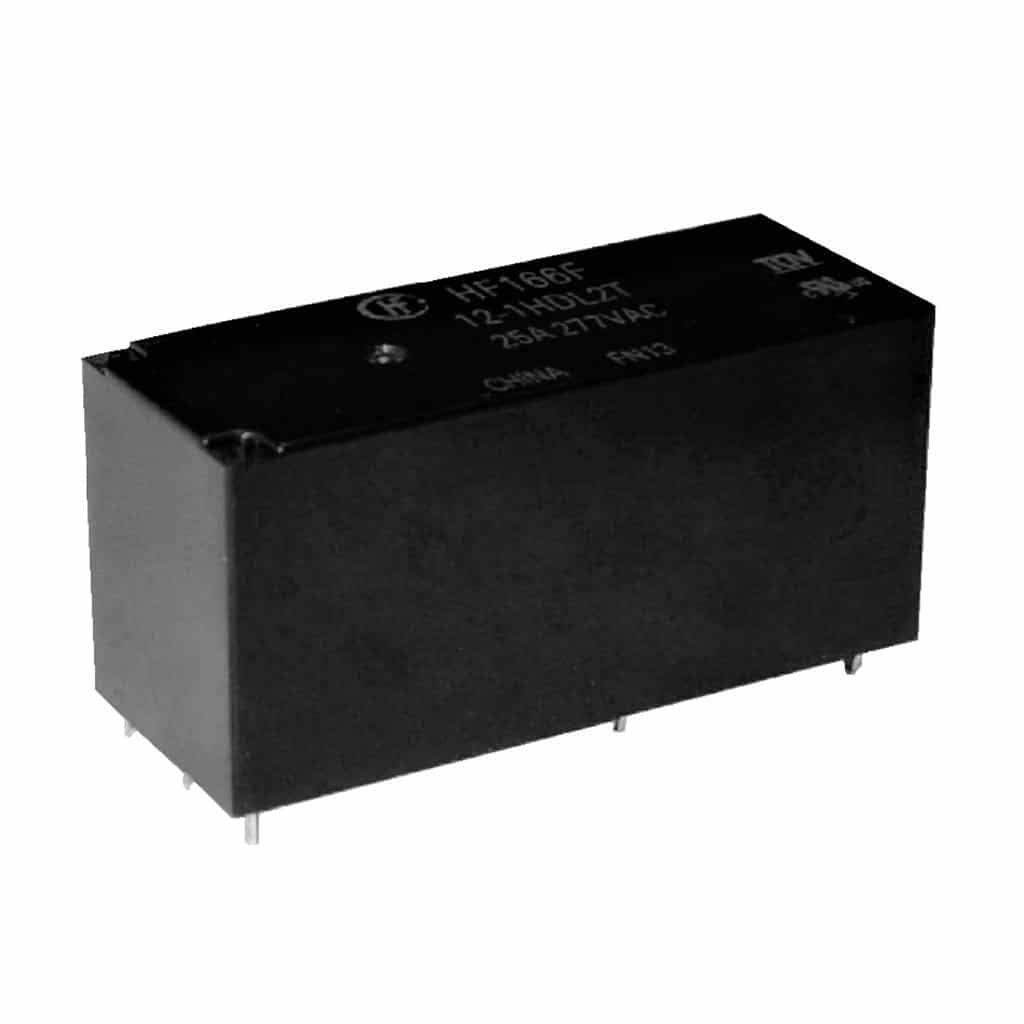

HF166F Miniature High Power Latching Relay
Product specs
| Coil Voltage | 5Vdc, 6Vdc, 12Vdc, 24Vdc, 48Vdc |
|---|---|
| Contact Arrangement | SPST (1NO) + SPST (1NC) |

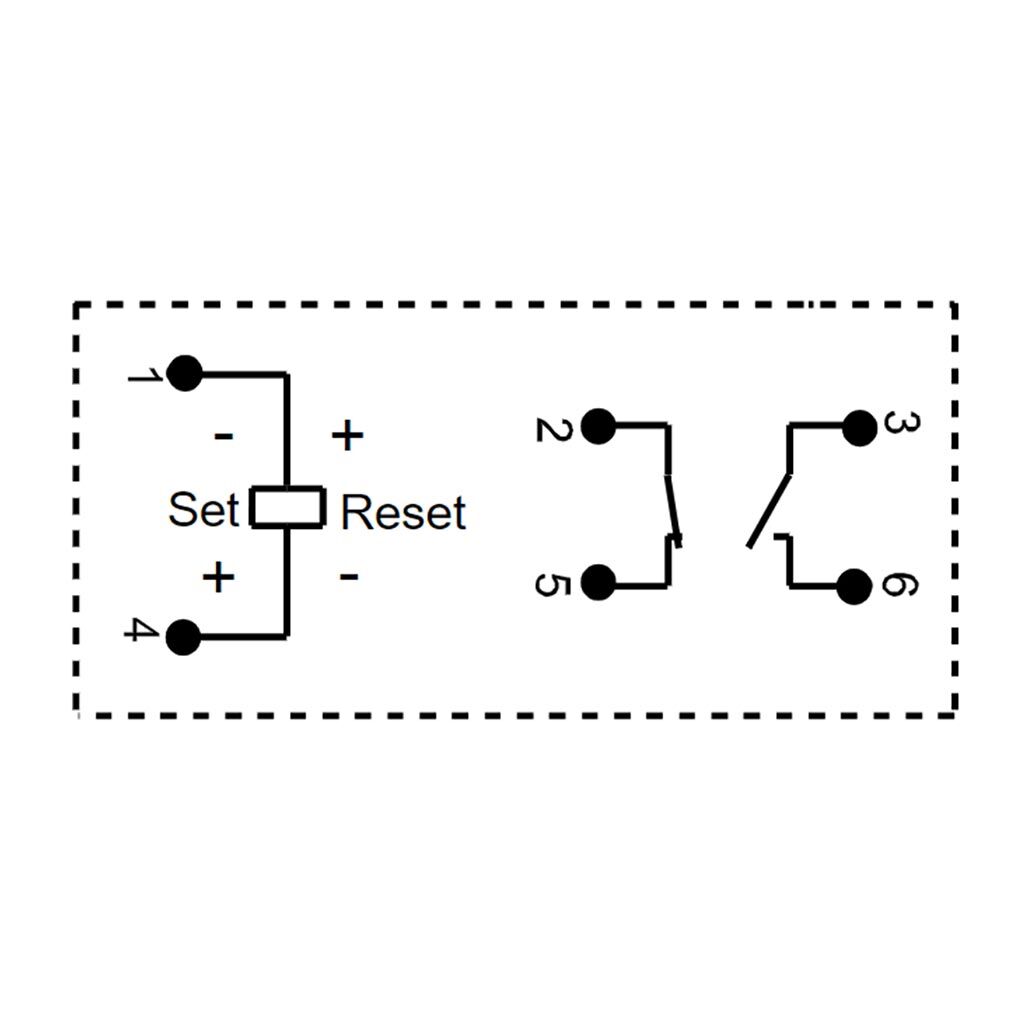

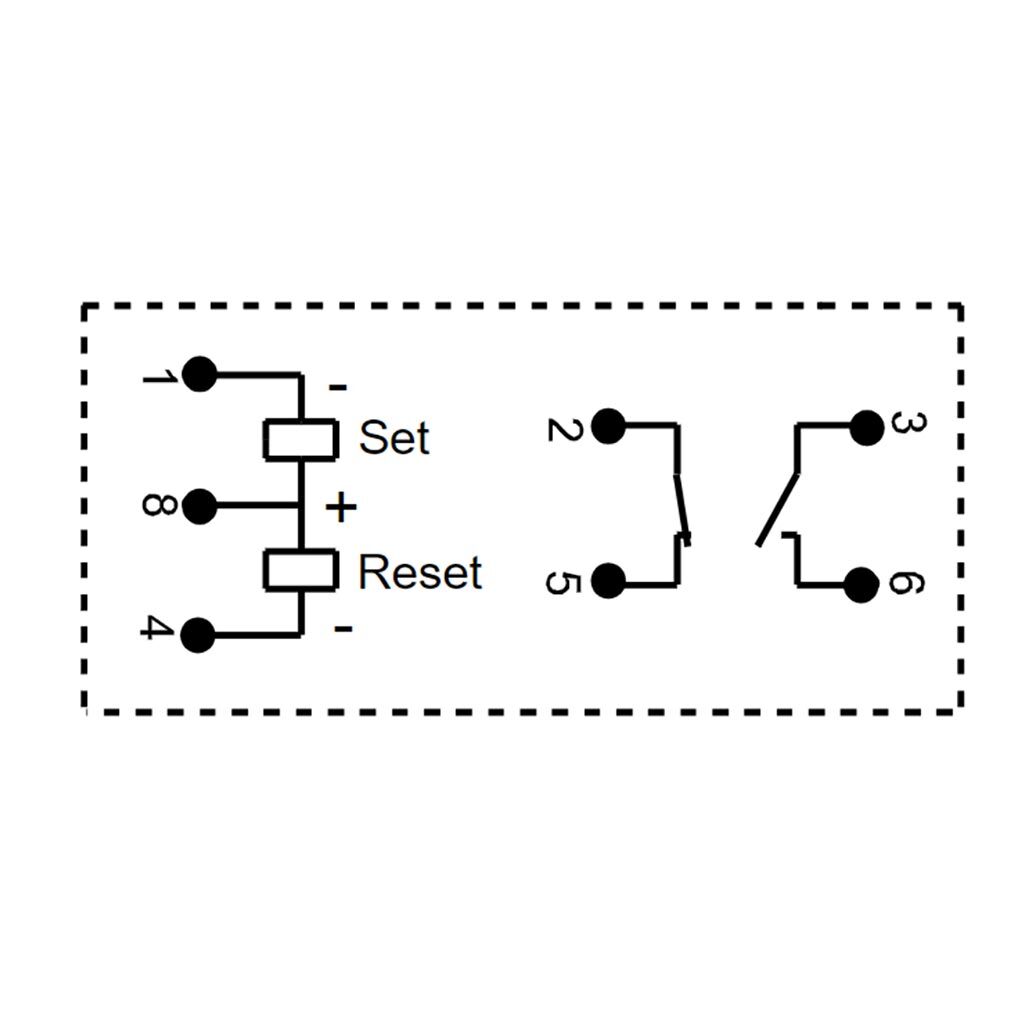

| Coil Type | 1 Coil Latching, 2 Coil Latching |
| Contact Rating (Amps) | 25A |
| Sealing | Flux Proof |
| Contact Material | AgSnO2 |
| Coil Resistance (Ohm) | 10.4Ω, 120Ω, 15Ω, 1920Ω, 20.8Ω, 240Ω, 30Ω, 480Ω, 60Ω, 960Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
HF166F is a Miniature High Power Latching Relay offering 25amp switching. Available with 1 coil or 2 coil Latching with a SPNO and SPNC contact arrangement.
Available from 5vdc upto 48vdc coil voltage.
- Latching relay
- 4mm contact gap available
- 25A switching capability
- 5kV dielectric strength(between coil and contacts)
- Creepage distance between coil and contacts:10mm
- Product in accordance to IEC 60335-1 available
- UL insulation system: Class F
- 1A + 1B configuration for power switching
- Flux proofed type available
