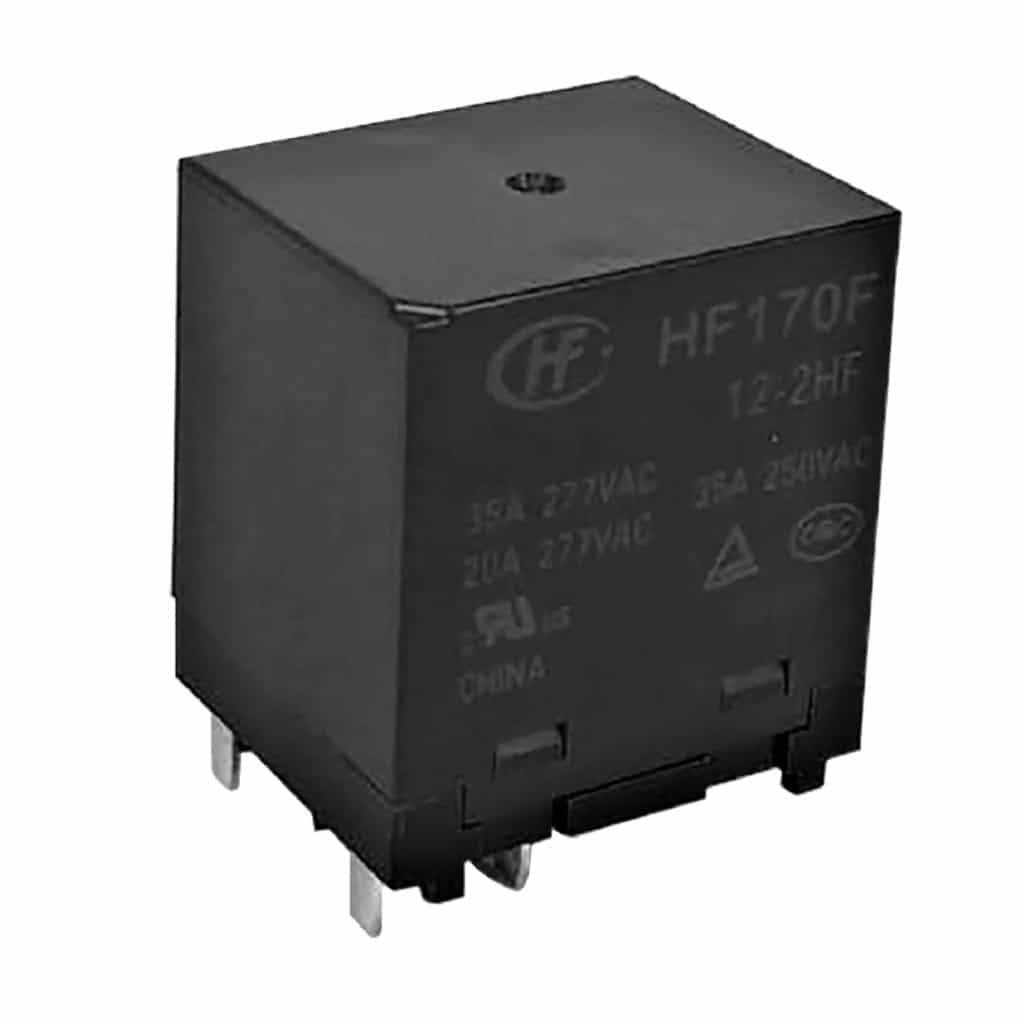

HF170F 35amp Double pole Relay
Product specs
| Coil Voltage | 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc |
|---|---|

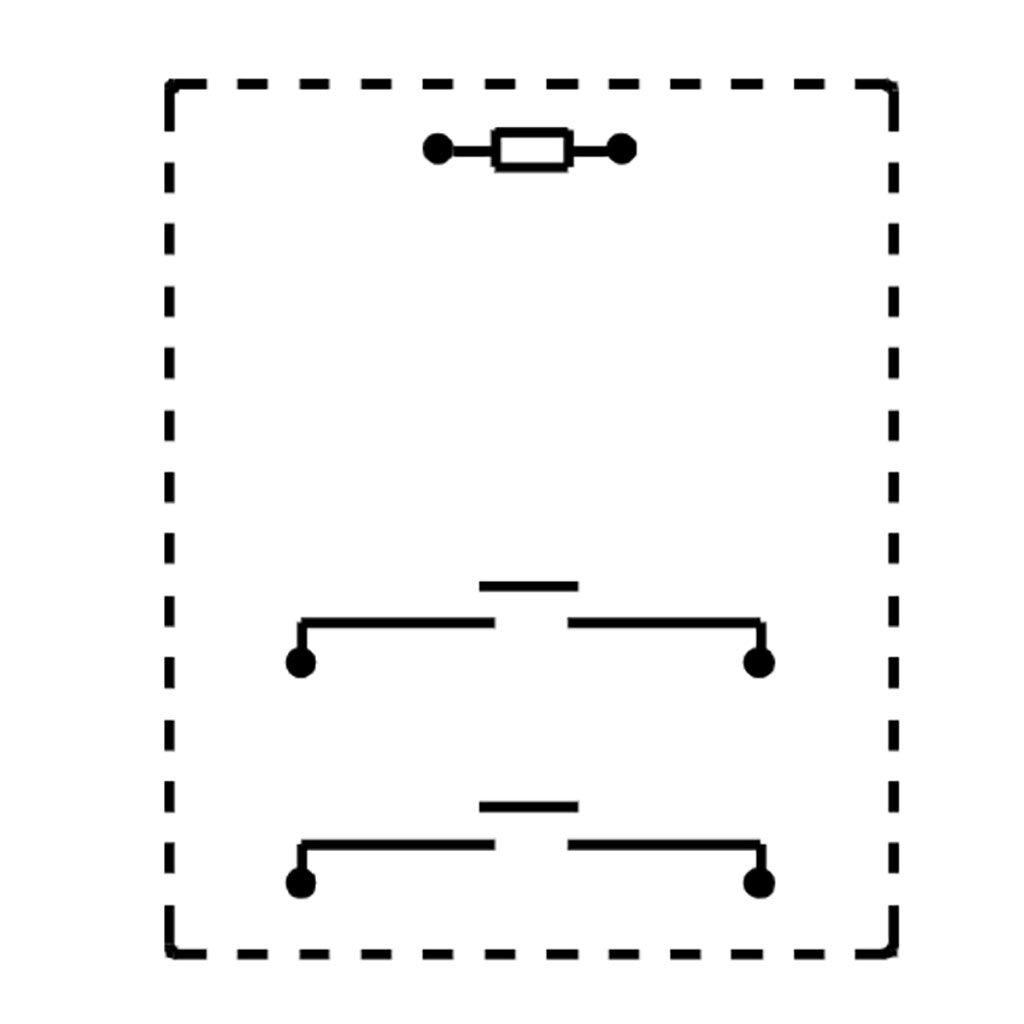

| Contact Arrangement | DPST (2NO) -2 Form A |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 35A |
| Sealing | Flux Proof |
| Contact Material | AgNi, AgSnO2 |
| Coil Resistance (Ohm) | 1225.5Ω, 19.1Ω, 306.4Ω, 43.1Ω, 76.6Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
HF170F from HongFa is DPNO relay with 35amps switching capability.
- 35A switching capability
- Applicable to solar photovoltaic inverter
- 3.6 mm contact gap
- Low coil holding voltage contributes to saving
energy of equipment - UL insulation system: Class F
