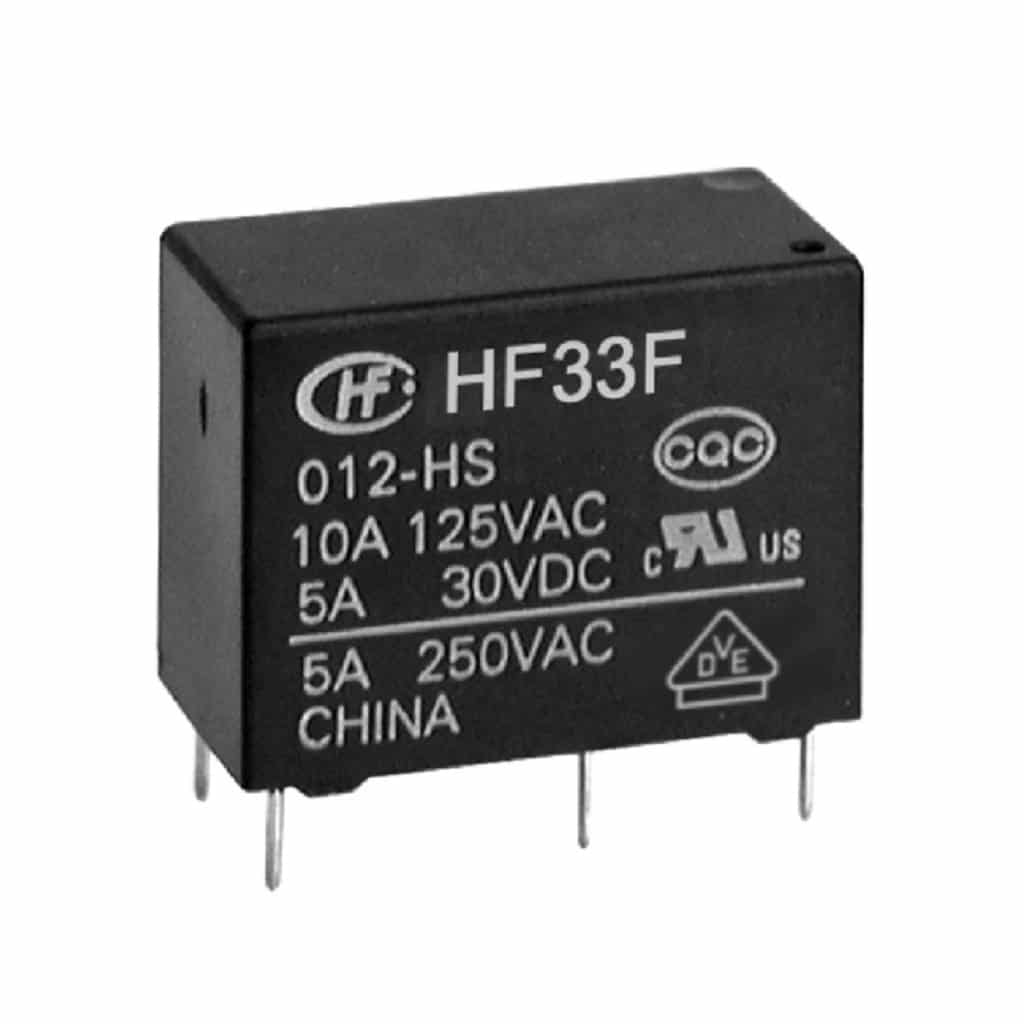

HF33F – 10amp Single Pole Relay

SKU: HF33F Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc
Contact Arrangement

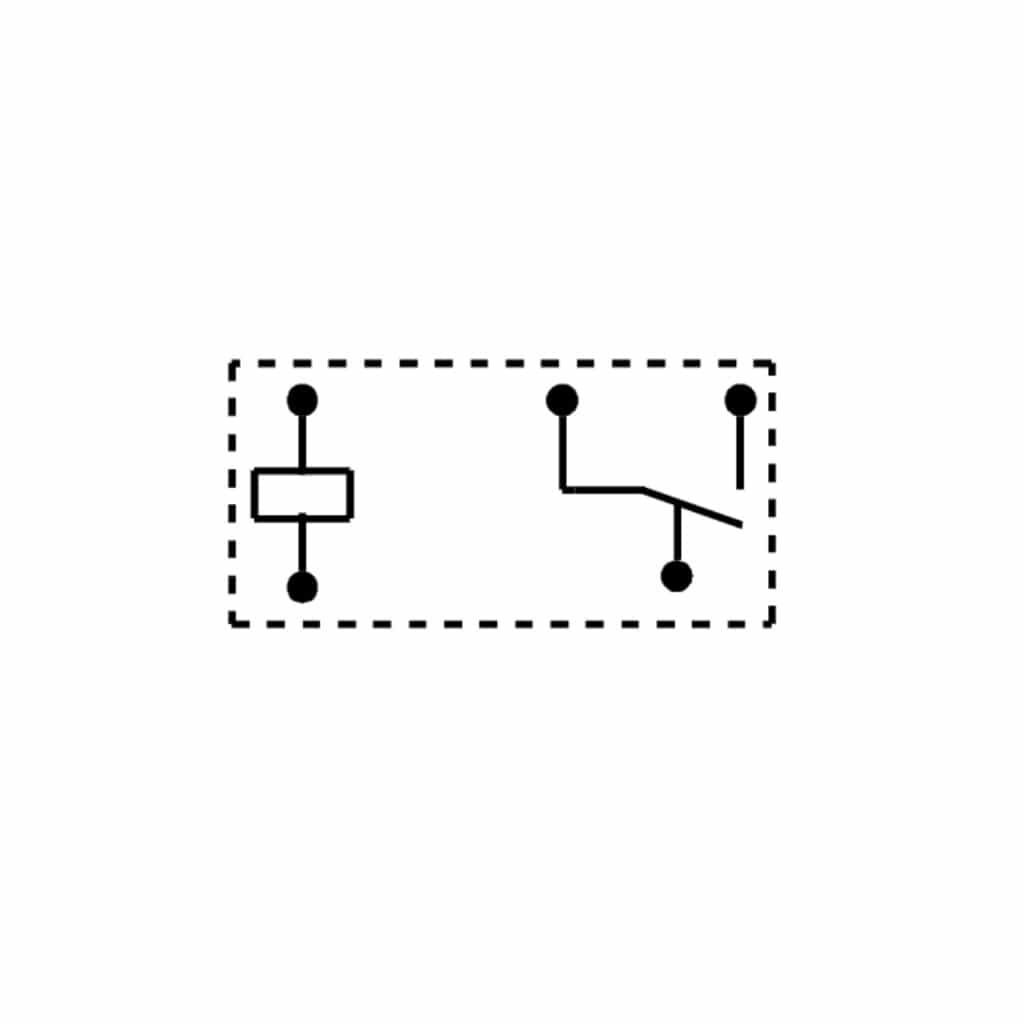

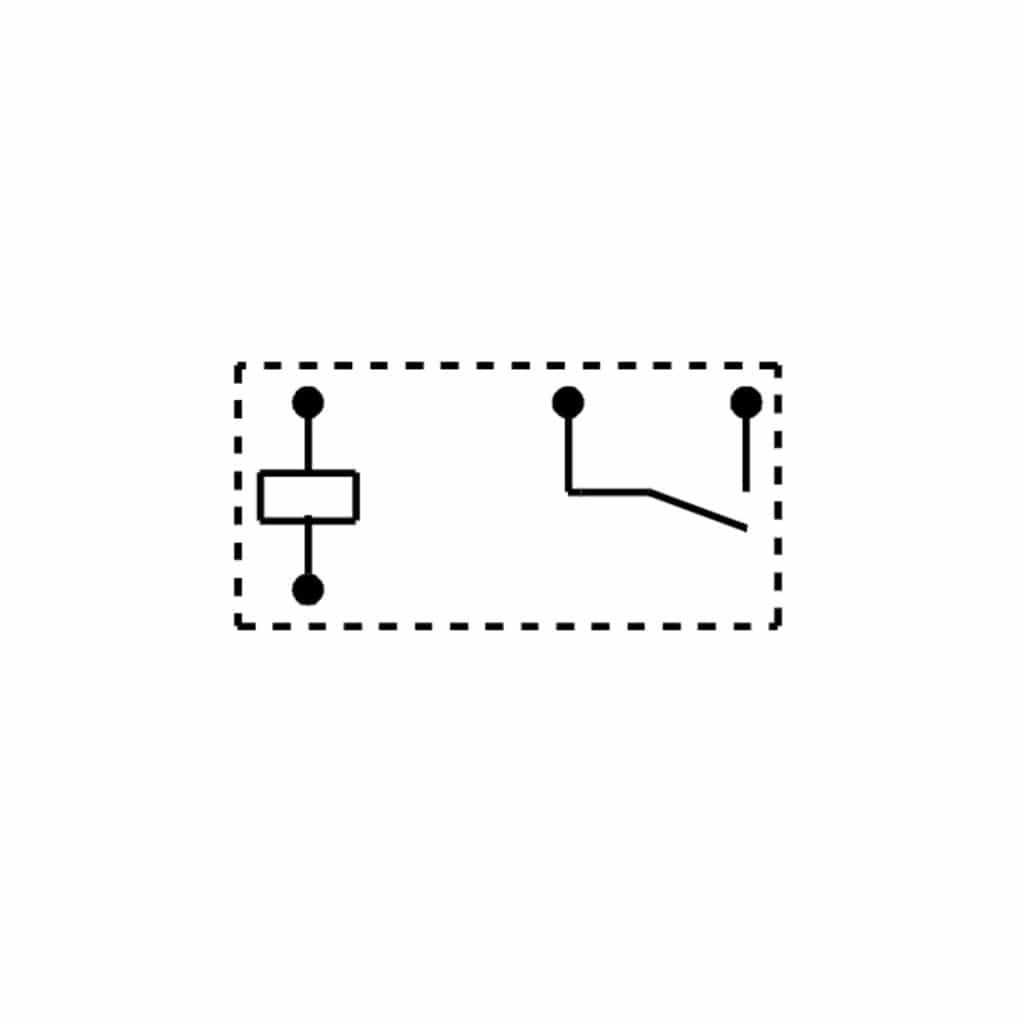

SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

5A, 10A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgCdO, AgNi, AgSnO2
Coil Resistance (Ohm)

20Ω, 45Ω, 55Ω, 80Ω, 125Ω, 320Ω, 400Ω, 1600Ω, 2880Ω, 11520Ω, 1280Ω, 5120Ω
Mounting

PCB
Type

Power Relay

Product Description

HF33F is a popular relay that provides 5amp @ 250vac to meet 300,000 switching capabilities. A very compact relay that offer Class F as standard.





  • Provide 5A 250VAC to meet 300000 switching capability specifications
  • Creepage distance: 8mm (coil & contacts)
  • Clearance distance: NO type 4.5mm, NC type 4mm
  • 1 Form A、1 From B and 1 Form C configurations
  • Plastic sealed and flux proofed types available
  • Class F
  • Product in accordance to IEC 60335-1 available
