HF171F - 6amp Single Pole Relay
HF171F - 6amp Single Pole Relay - Image 2
HF171F - 6amp Single Pole Relay - Image 3

HF171F – 6amp Single Pole Relay

SKU: HF171F Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 36Vdc, 48Vdc
Contact Arrangement

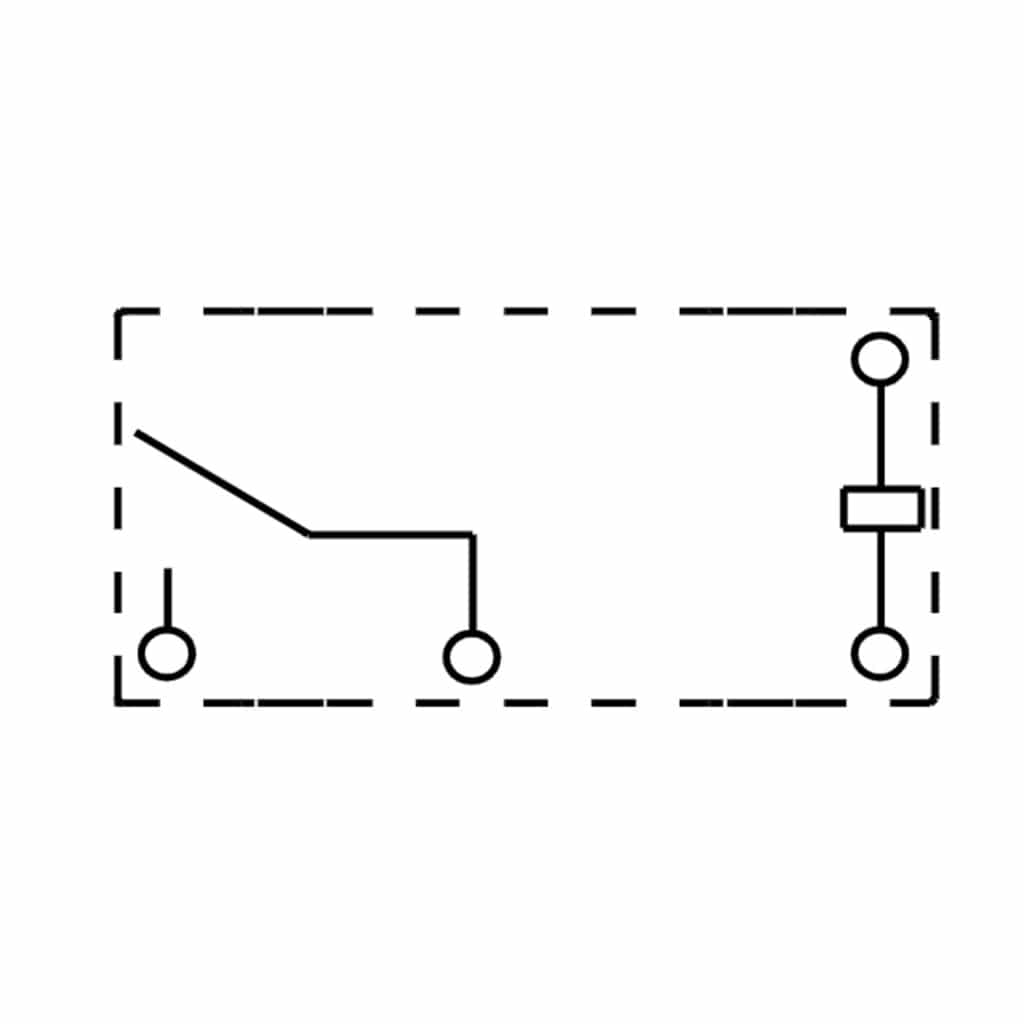

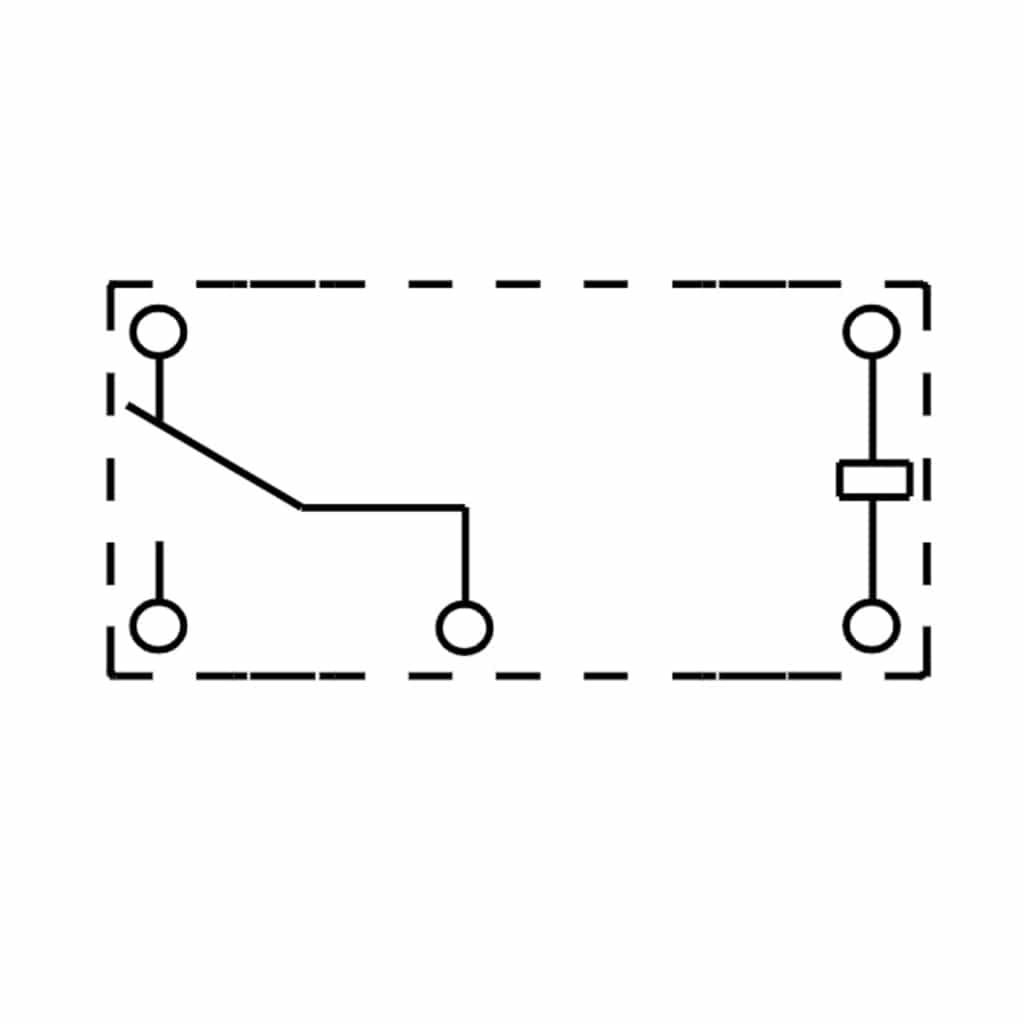

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

6A
Sealing

Flux Proof
Contact Material

AgNi, AgSnO2
Coil Resistance (Ohm)

45Ω, 125Ω, 180Ω, 405Ω, 720Ω, 1600Ω, 2880Ω, 6480Ω, 11520Ω
Mounting

PCB
Type

Power Relay

Product Description

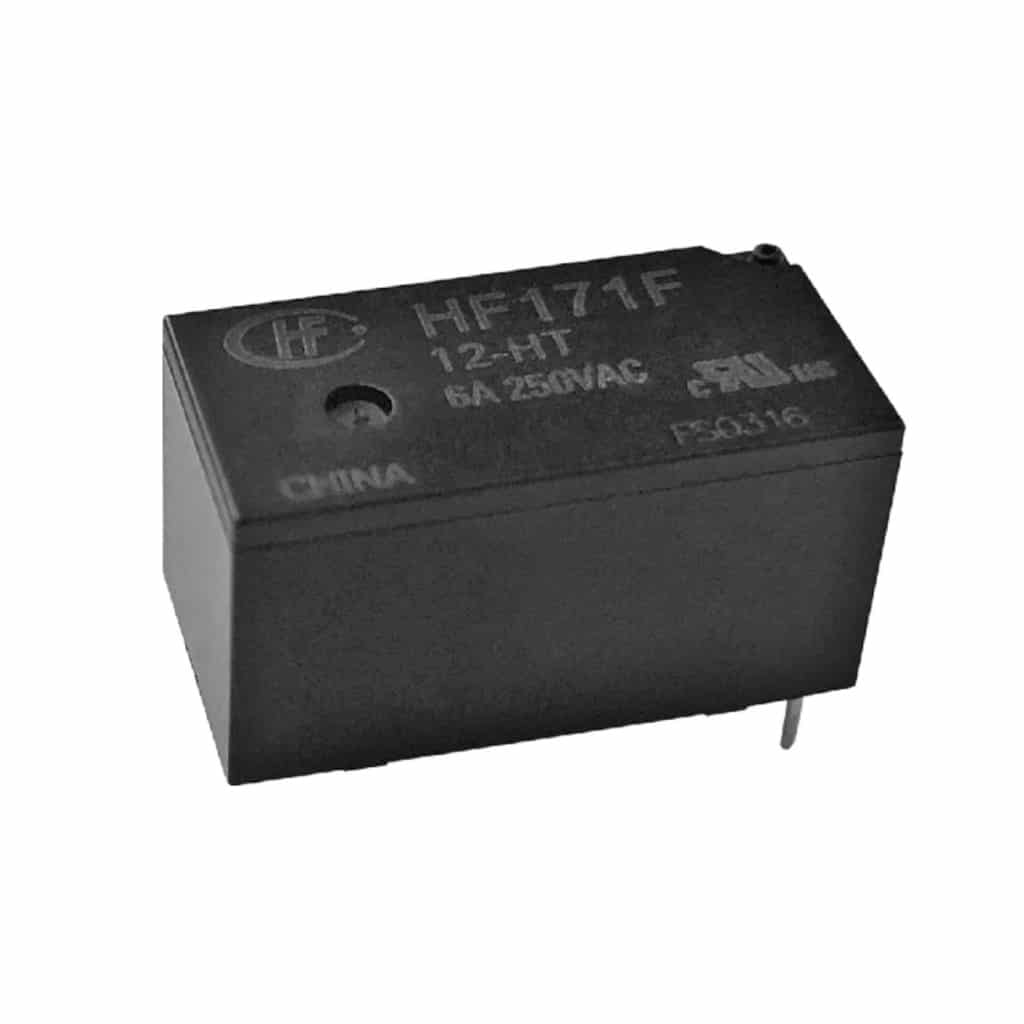

HF171F is a 10.8mm high single pole relay with a footprint of only 20x10mm. Available in SPNO & SPCO configuration it makes this relay very versatile.

Available from 3v upto 48vdc.



  • 8A switching capability
  • 1 form A and 1 form C configurations
  • High sensitivity 200mW
  • Creepage/clearance distance:>6mm,meets VDE 0631 reinforce insulation
  • 5KV dielectric between coil to contacts
  • Class F insulation
