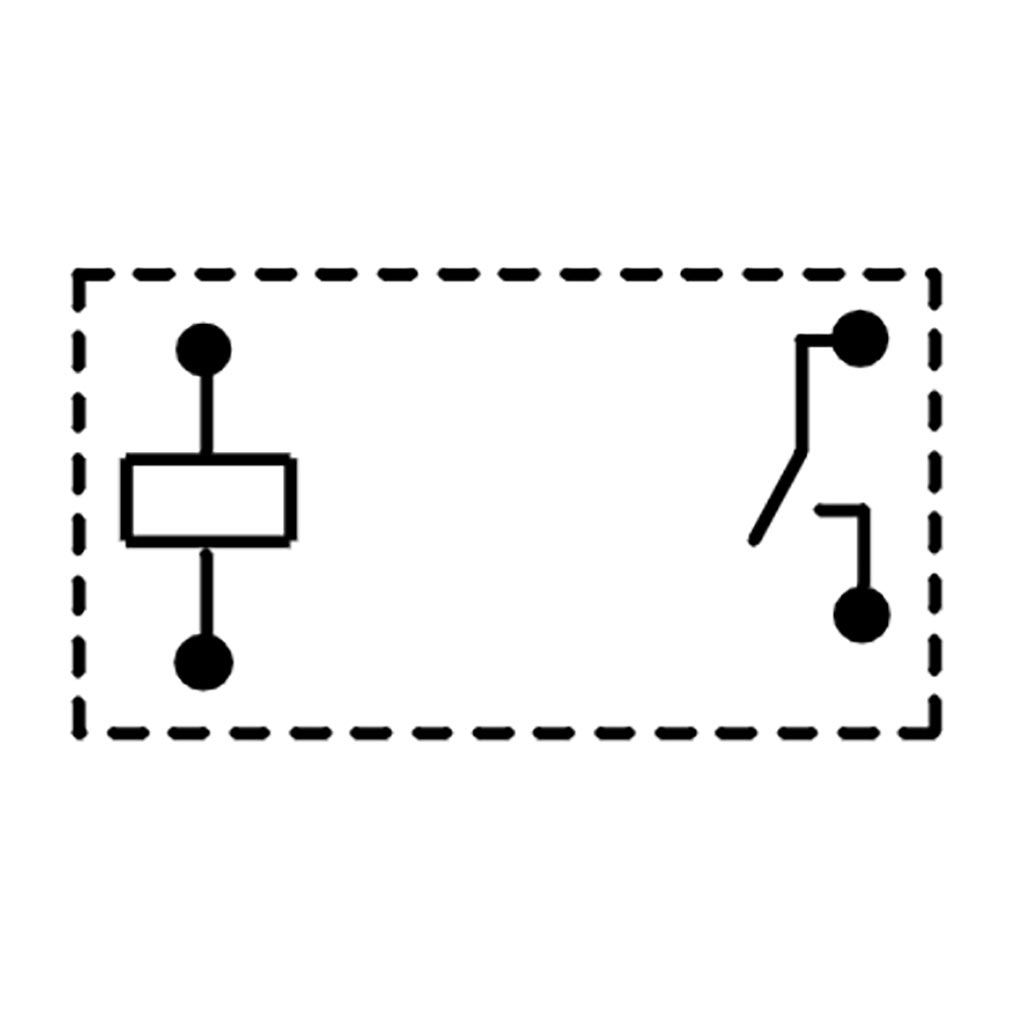

HF32FA Subminiature Power Relay - Image 3
HF32FA Subminiature Power Relay - Image 4

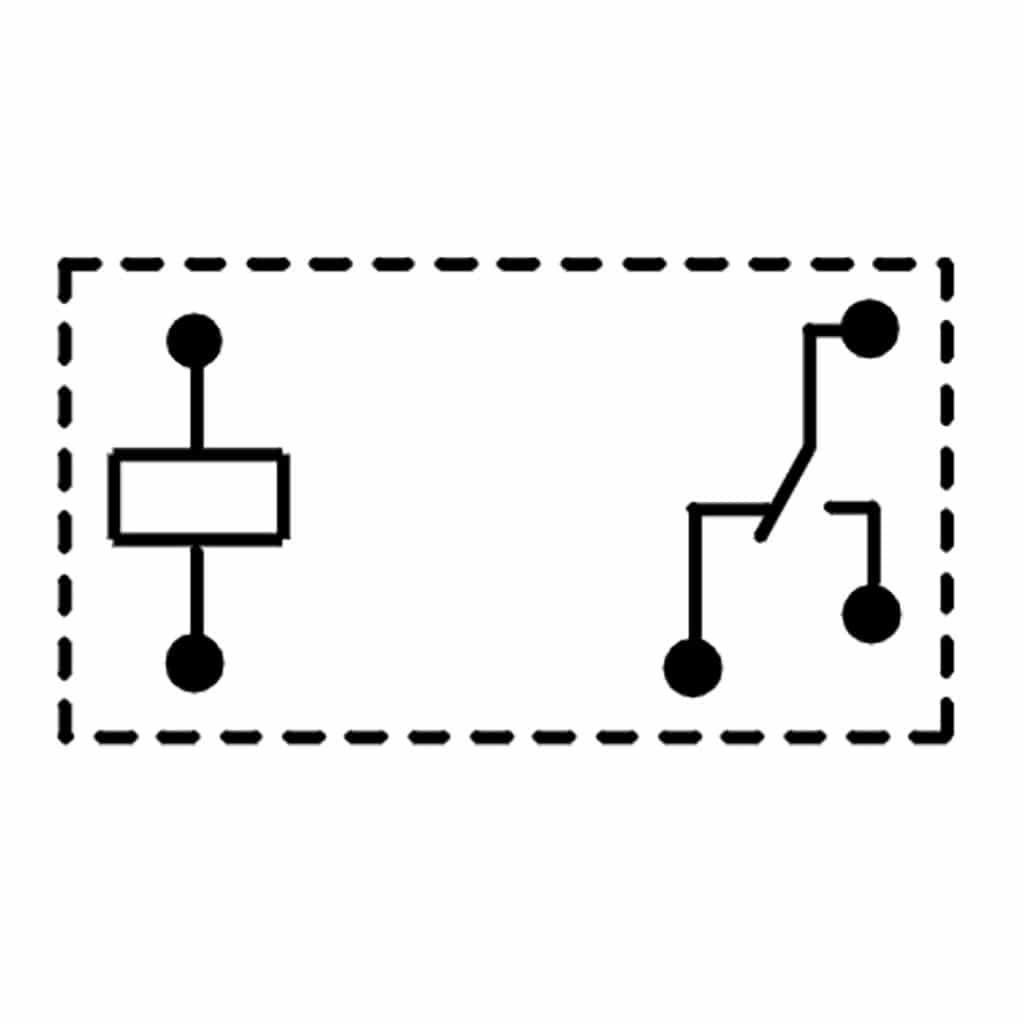

HF32FA Subminiature Power Relay - Image 5

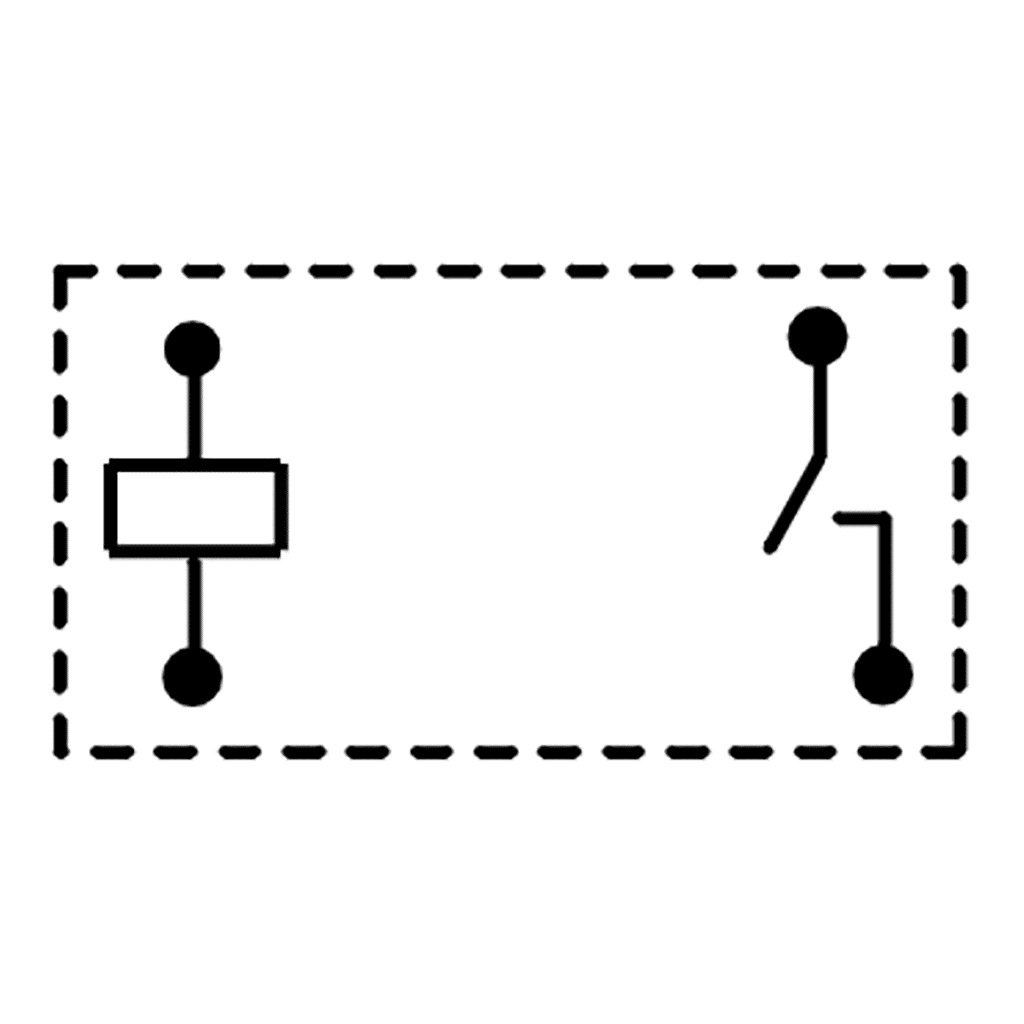

HF32FA Subminiature Power Relay - Image 6
HF32FA Subminiature Power Relay - Image 7

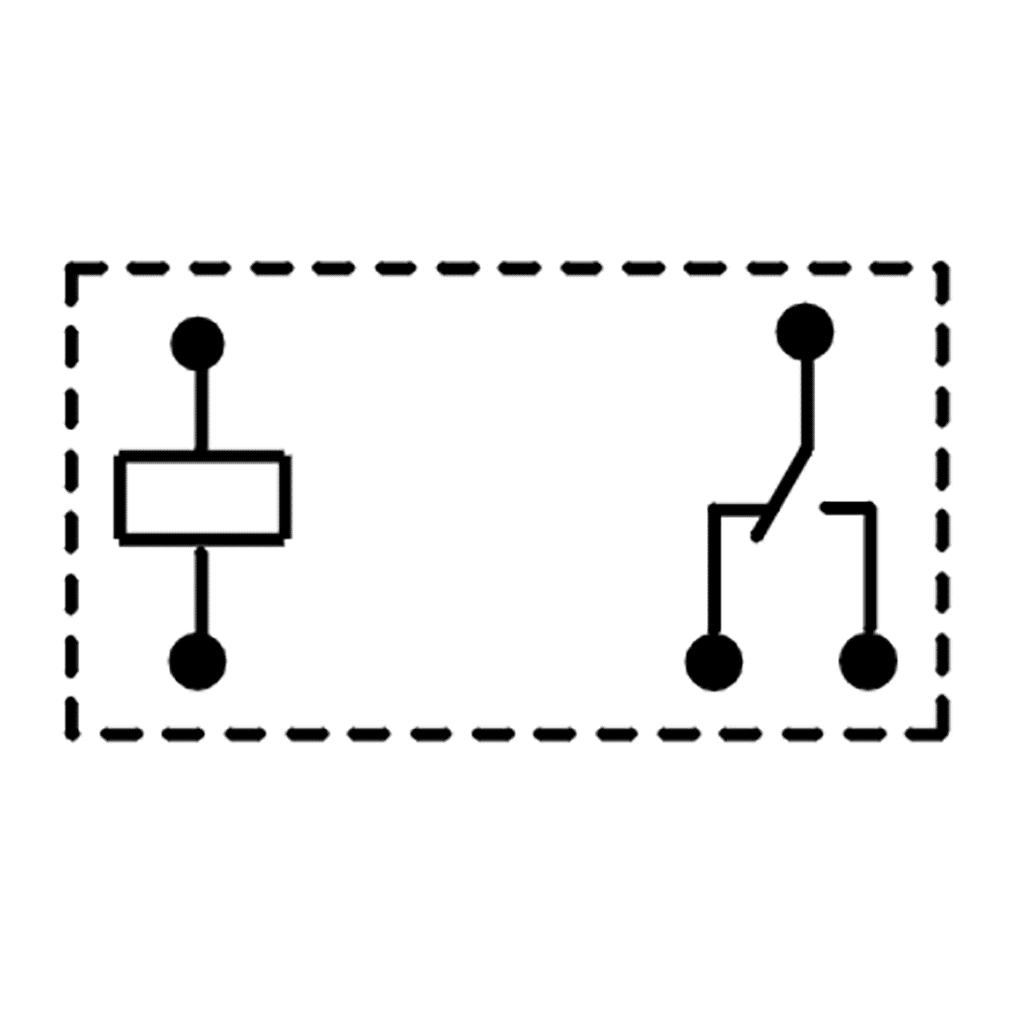

HF32FA Subminiature Power Relay - Image 8
HF32FA Subminiature Power Relay - Image 9

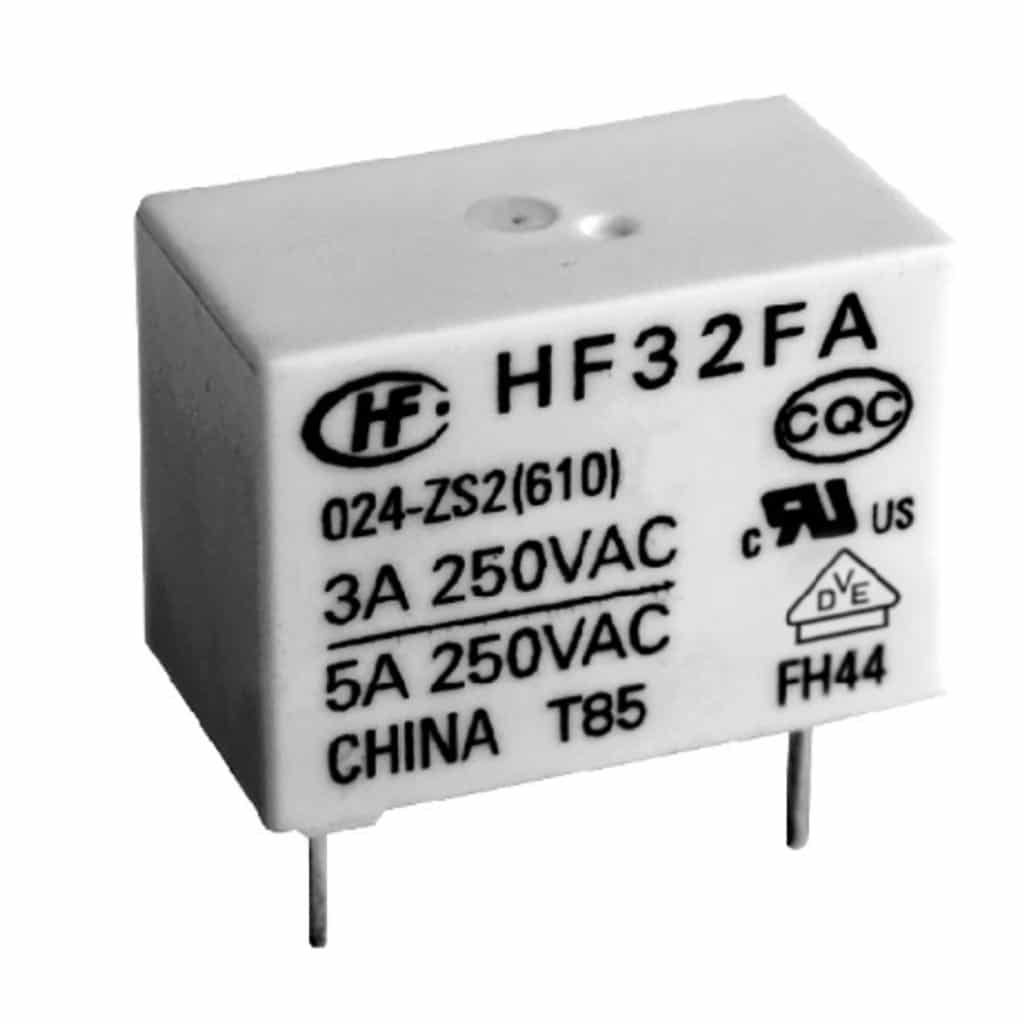

HF32FA Subminiature Power Relay

SKU: HF32FA Category: Manufacturer:
Download PDF

Product specs

Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc
Contact Arrangement

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

3A, 5A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgNi, AgNi+Au Plated
Coil Resistance (Ohm)

2800Ω, 20Ω, 45Ω, 55Ω, 80Ω, 125Ω, 320Ω, 400Ω, 1600Ω, 1280Ω, 5120Ω
Mounting

PCB
Type

Power Relay

Product Description

HF32FA is a single pole relay offering upto 5amps switching. With a size of only 17.6 x 10.2 x 12.7mm it makes it an ideal relay where space is limited.

Available from 3vdc upto 48vdc and in SPNO and SPCO contact arrangements.



  • 5A switching capability
  • Creepage/clearance distance>8mm
  • 5kV dielectric strength (between coil and contacts)
  • 1 Form A meets VDE 0700, 0631 reinforce insulation
  • 1 Form C meets VDE 0631 reinforce insulation
  • UL insulation system: Class F
  • Product in accordance to IEC 60335-1 available
