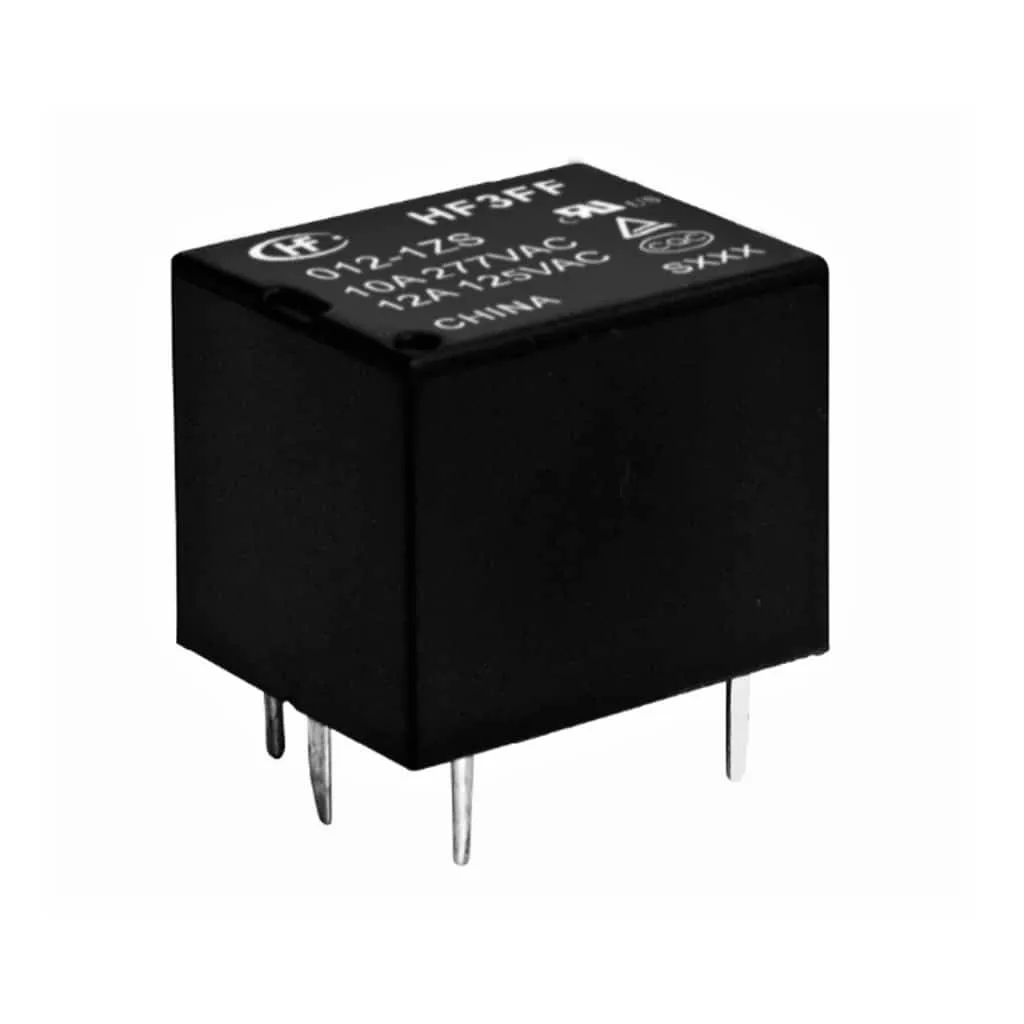

HF3FF - 10A Sugar Cube Relay
HF3FF - 10A Sugar Cube Relay - Image 2
HF3FF - 10A Sugar Cube Relay - Image 3

HF3FF – 10A Sugar Cube Relay

SKU: HF3FF Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc
Contact Arrangement

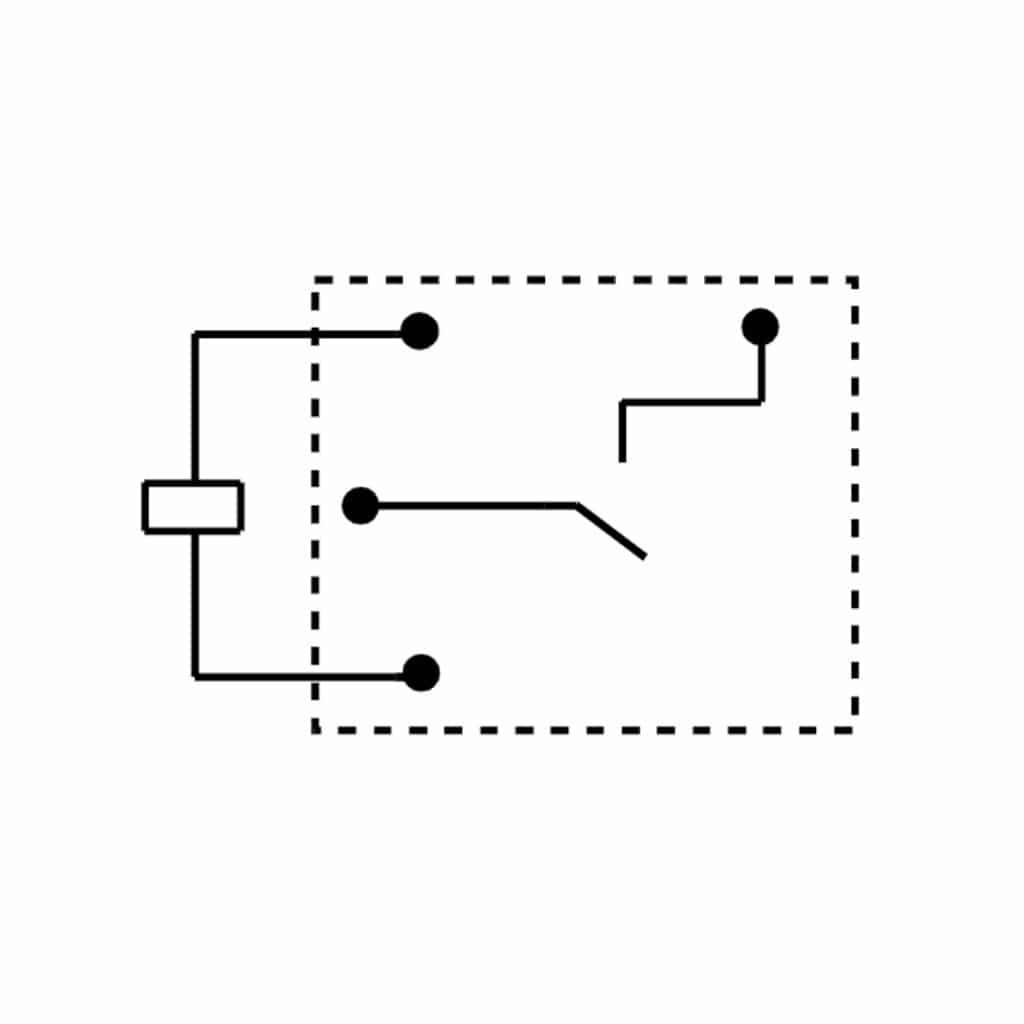

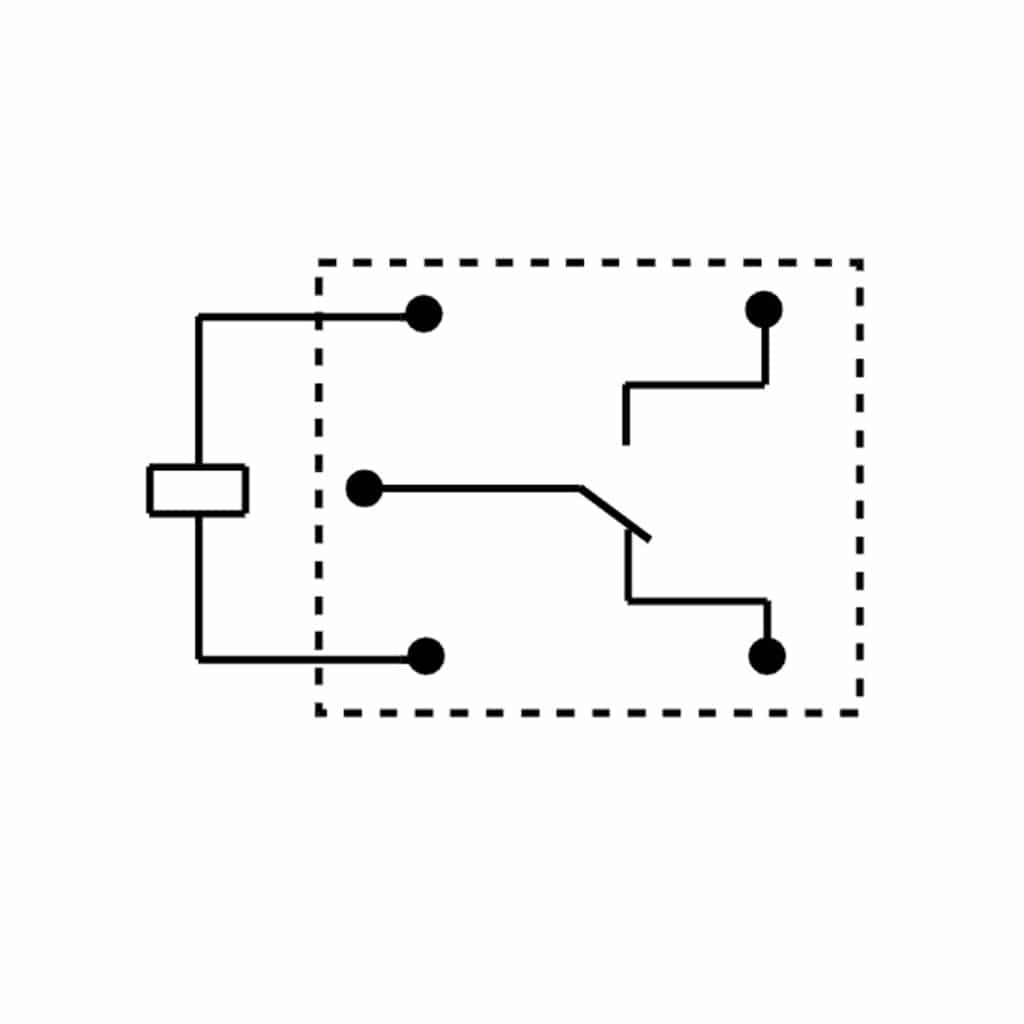

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

10A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgCdO, AgSnO2
Coil Resistance (Ohm)

225Ω, 70Ω, 900Ω, 100Ω, 400Ω, 1600Ω, 4500Ω, 6400Ω
Mounting

PCB
Type

Power Relay

Product Description

HF3FF is one of the most popular relays, known as a “sugar Cube” relay. Available in SPNO & SPCO configuration it makes this relay very versatile.

Available from 5v upto 48vdc.



  • 15A 125VAC\ 10A 250VAC switching capability
  • 1 Form A and 1 Form C configurations
  • Subminiature, standard PCB layout
  • Plastic sealed and  flux proofed types available
  • UL insulation system: Class F available
