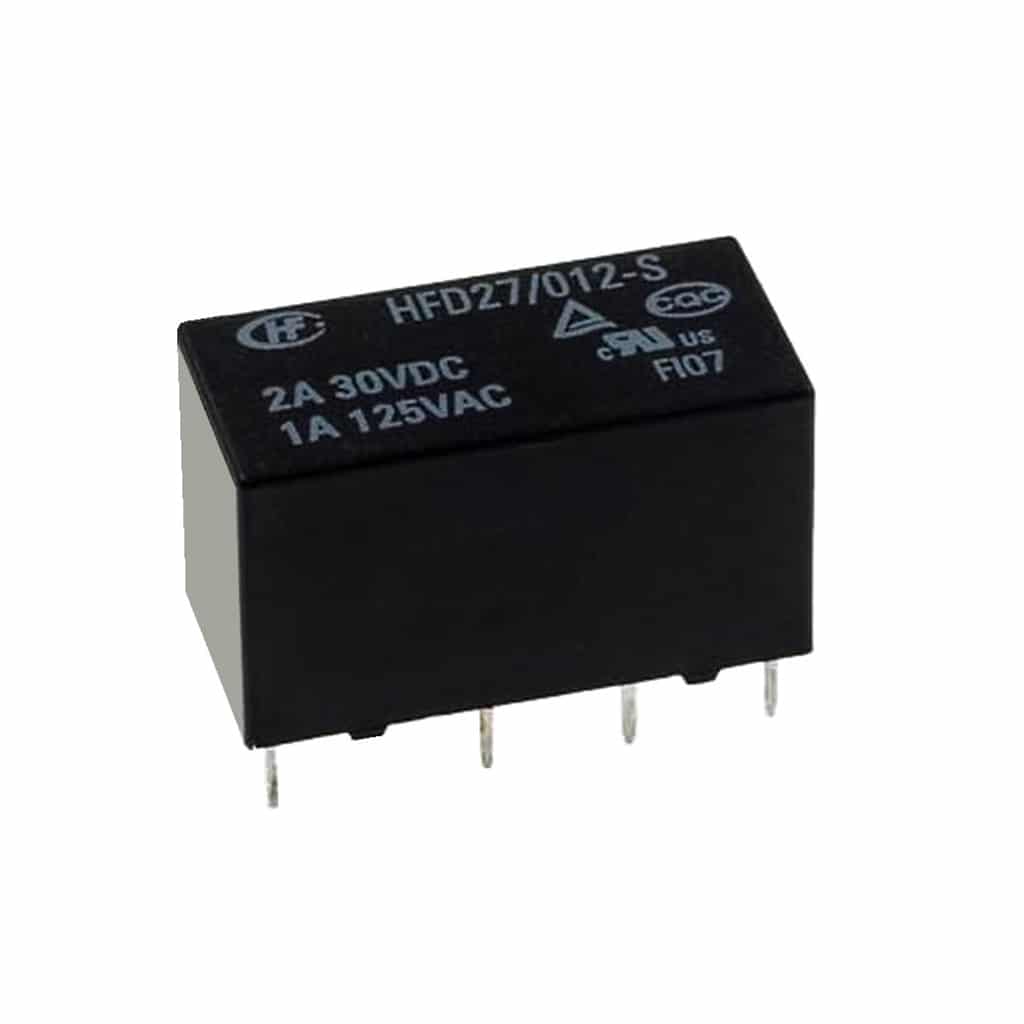

HFD27 – 2amp Double Pole Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 15Vdc, 24Vdc, 48Vdc |

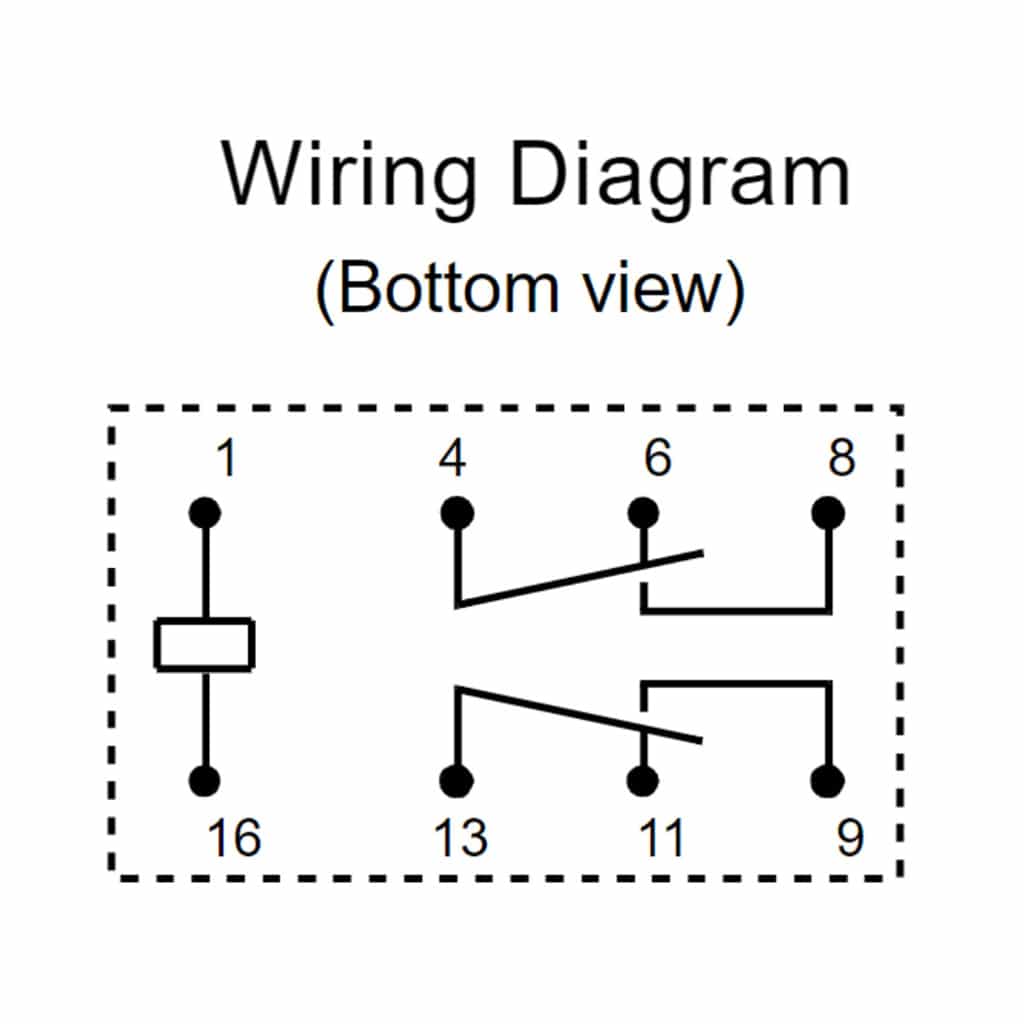

| Contact Arrangement | DPDT (2CO) -2 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 2A |
| Sealing | Fully Sealed |
| Contact Material | AgNi+Au Plated |
| Coil Resistance (Ohm) | 1125Ω, 130Ω, 1500Ω, 167, 240Ω, 280Ω, 30Ω, 3840Ω, 4000Ω, 450Ω, 540Ω, 60Ω, 625Ω, 960Ω, 45Ω, 90Ω, 125Ω, 180Ω, 405Ω, 720Ω, 1600Ω, 2880Ω |
| Mounting | PCB |
| Type | Signal Relay |
Product Description
HFD27 is a common 2 pole relay known as the old style BT47 series. Available in standard, sensitive and high sensitive coils with voltages ranging from 3-24vdc.
- 2 Form C configuration
- High switching capacity: 125VA/60W
- Matching 16 pin IC socket
- Bifurcated contacts
- Epoxy sealed for automatic-wave soldering and cleaning
