HFD4 – PCB and SMD Relay 2amp

This product is currently out of stock and unavailable.

SKU: HFD4 SMD Category: Manufacturer:
Download PDF

Product specs

Coil Voltage

1.5Vdc, 2.4Vdc, 3Vdc, 5Vdc, 4.5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc
Contact Arrangement

DPDT (2CO) -2 Form C
Coil Type

Non Latching, 1 Coil Latching
Contact Rating (Amps)

2A
Sealing

Fully Sealed
Contact Material

AgNi+Au Plated
Coil Resistance (Ohm)

1028Ω, 145Ω, 16Ω, 178Ω, 257Ω, 41Ω, 579Ω, 64.3Ω, 2880Ω
Mounting

PCB, SMD
Type

Signal Relay

Product Description

HFD4 is a miniature 2 pole relay available from HongFa. Footprint is only 10mm x 6.5mm and with a height of only 5.65 makes it one of the smallest available with 2 pole configuration.

Also available latching and covering voltages from 1.5-24vdc.

Available on reels of 900 pcs for -SR ending.

  • Offers excellent board space savings
  • Surge withstand voltage up to 2500V,      meets FCC Part 68 and Telecordia
  • Meets EN60950/EN41003
  • SMT and DIP types available
  • High contact capacity 2A 30VDC
  • Low power consumption

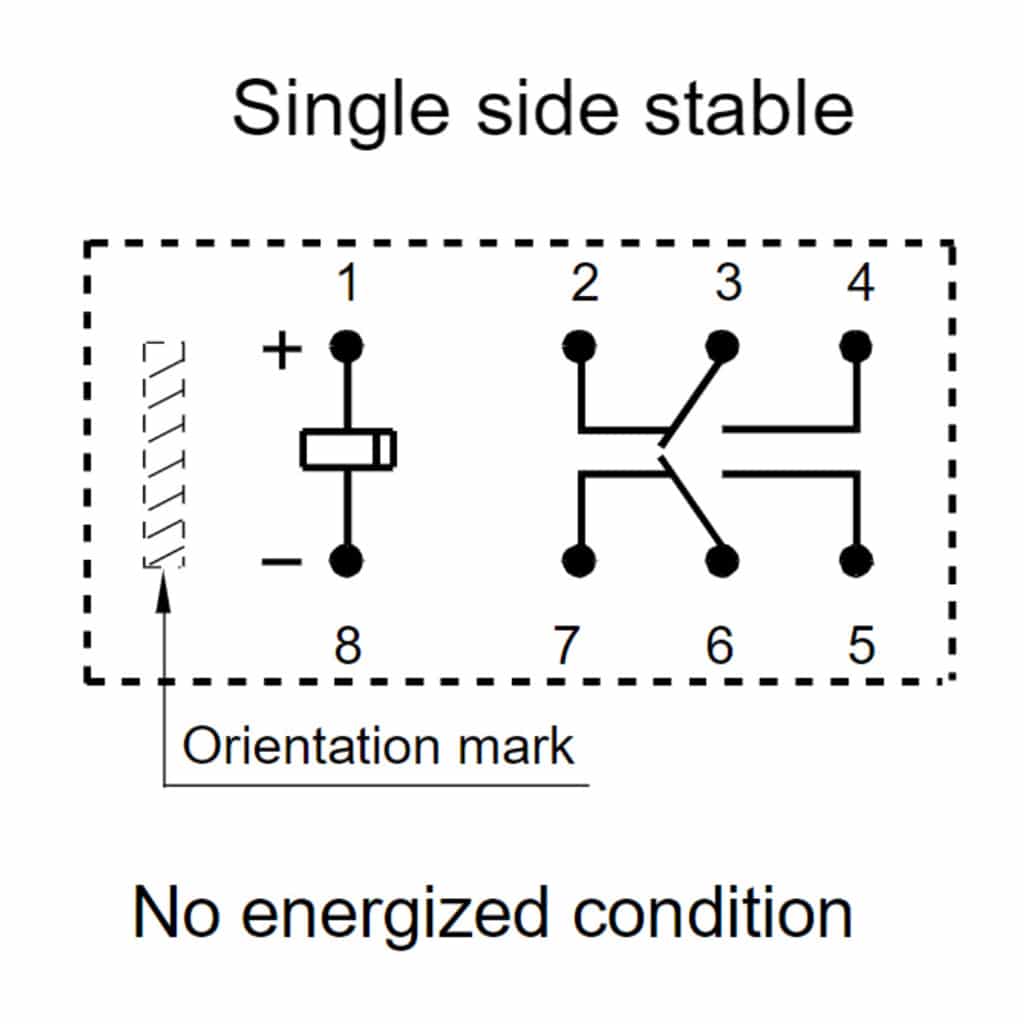

  • Single side stable and latching type available
