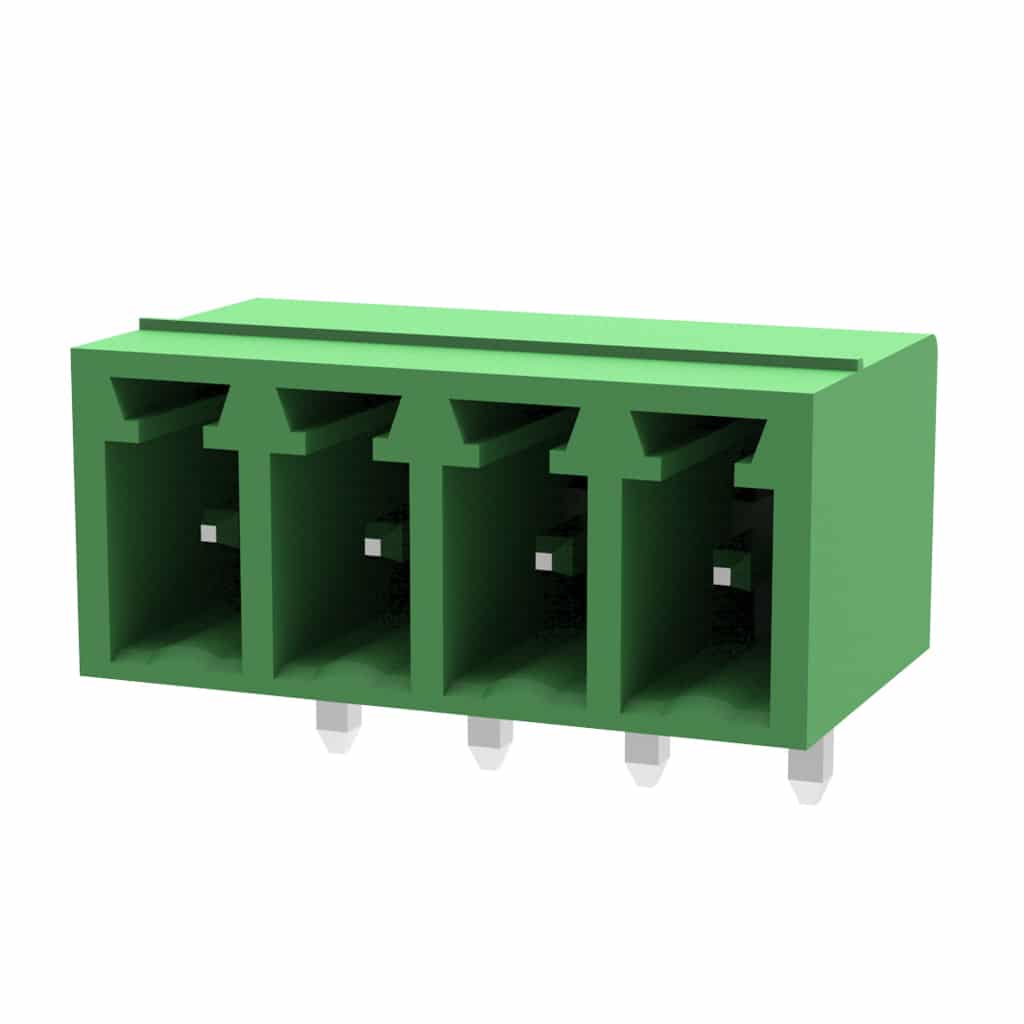

Horizontal Socket- 3.81mm Pitch , 15EDGRC-3.81-xxP-1400AH
Product specs
| Pitch | 3.81mm |
|---|---|
| Height | 7.24mm |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Colour | Green |
Product Description
15EDGRC-3.81 is a 3.81mm horizontal socket from Degson. Product is available in multiple poles and different colours upon request. Product is compatible with a number of plugs but the most common being the 15EDGK-3.81 , the socket is also available in a vertical version 15EDGVC-3.81
15EDGRC-3.81 series is UL (E228872) , VDE (40025627) & CE
- Pitch 3.81mm
- 7.24mm High – 9.2mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- UL file number E228872 – 8A @ 300v
- VDE file number 40025627 – 7A @ 250v
