IM – PCB and SMD Relay 2amp

SKU: IM Range Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

1.5Vdc, 2.4Vdc, 3Vdc, 5Vdc, 4.5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc
Contact Arrangement

DPDT (2CO) -2 Form C
Coil Type

Non Latching, 1 Coil Latching
Contact Rating (Amps)

2A, 5A
Sealing

Fully Sealed
Contact Material

AgNi+Au Plated, PdRu+Au Plated
Coil Resistance (Ohm)

1028Ω, 145Ω, 178Ω, 1880Ω, 203Ω, 500Ω, 574Ω, 64Ω, 2880Ω
Mounting

PCB, SMD
Type

Signal Relay

Product Description

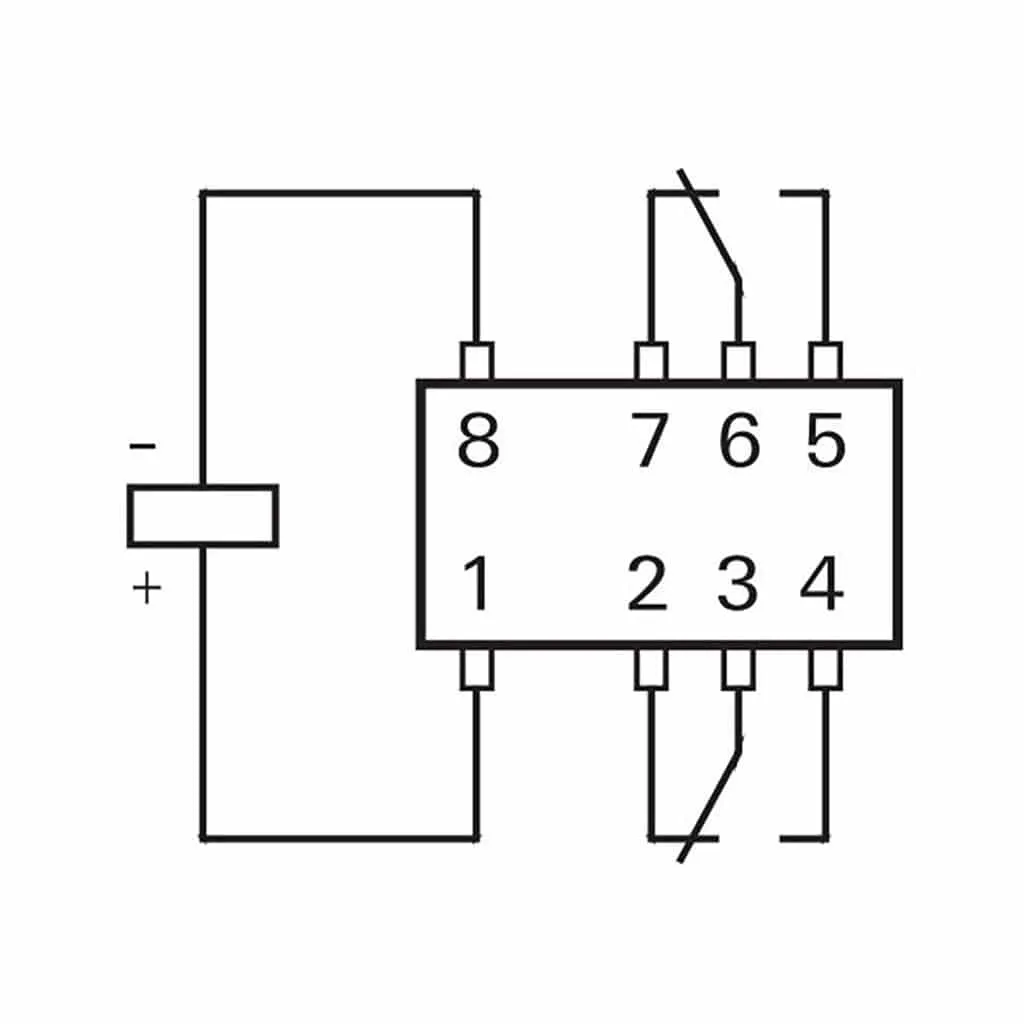

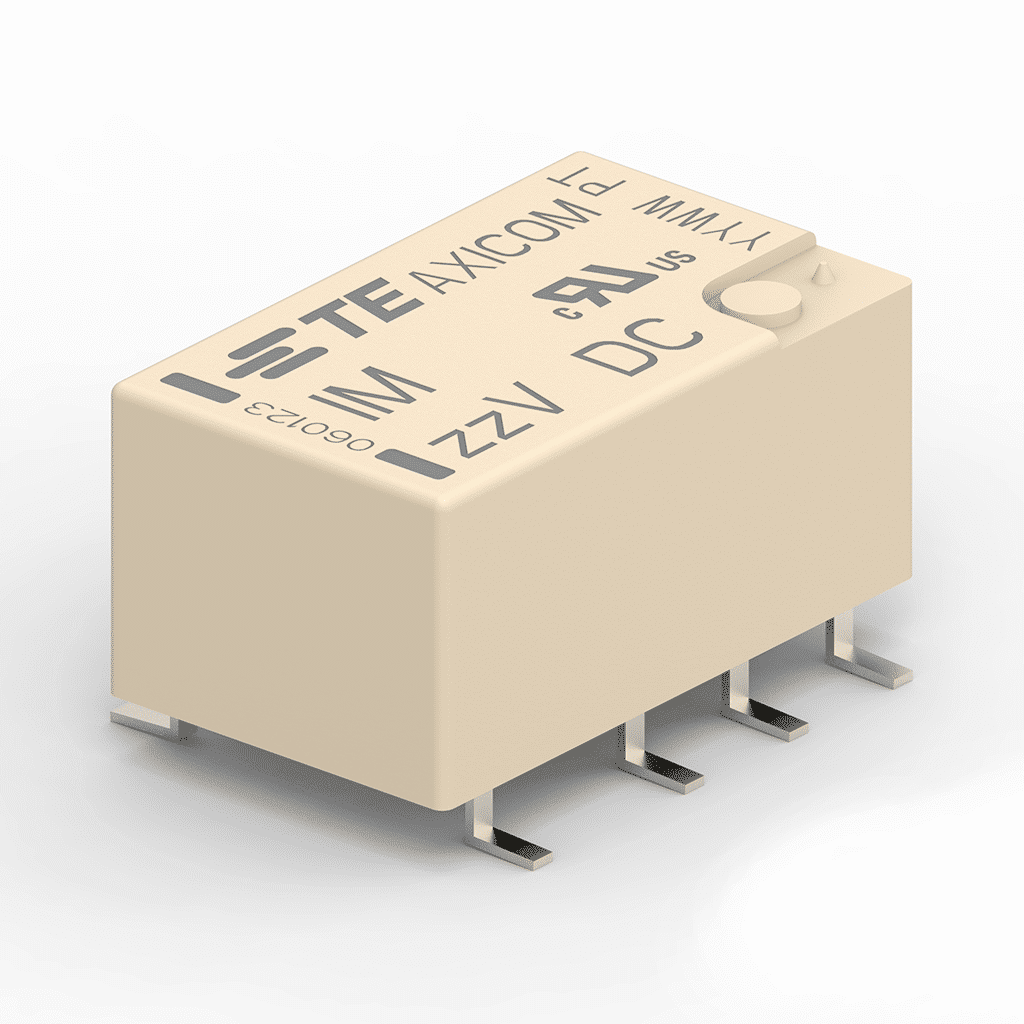

IM is a miniature 2 pole relay available from Te Connectivity. Maximum footprint is only 10mm x 6mm and with a height of only 5.65 makes it one of the smallest available with 2 pole configuration.

Also available latching and covering voltages from 1.5-24vdc.

5A Current available on request.

Available on reels of 1000 pcs for -GR and -JR endings.

  • Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2
  • Switching current 2/5A, switching power 60W/62.5VA and
    switching voltage 220VDC/250VAC
  • Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra
    high sensitive version and 100mW for bistable version
  • High dielectric and surge capability up to 2500Vrms between open
    contacts and 2500Vrms between coil and contacts
  • High mechanical shock resistance up to 50g functional
