Leaf Spring , 5.0mm Pitch , DG167-5.0-xxP

SKU: DG167-5.0-xxP Categories: , , Manufacturer:

Product specs

Height

14mm

Pitch

5mm

Wire Orientation

Horizontal

Poles

2, 3, 4, 5, 6, 7, 8, 12

Clamp Type

Leaf Spring

Colour

Grey – Dark, Green

Product Description

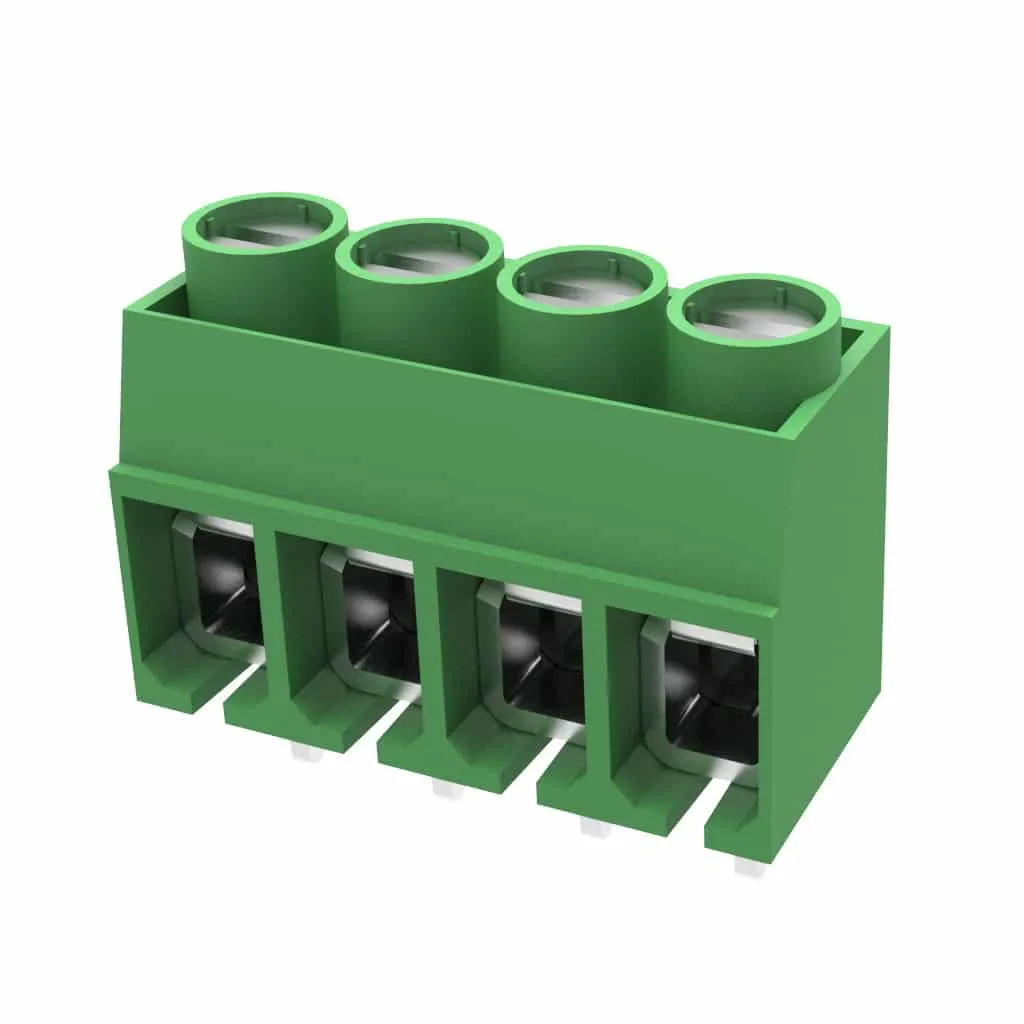

DG167-5.0 series is a popular leaf spring connector from Degson. Product is available in multiple poles and different colours upon request. Product is end stackable so although they cannot be locked together they can be placed together on the PCB.

DG167 series is UL (E228872) approved and PA66 material offering the highest V0 flammability rating.



  • Pitch 5.0mm
  • 14mm High – 8.5mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • Screw – M2.5 slotted
  • UL File number E228872 – 12-22 Awg – 15A @ 300v
  • End-Stackable
  • Colour Green as standard
