Leaf Spring , 5.0mm Pitch , DG300R-5.0-xxP-1300AH
Product specs
| Pitch | 5mm |
|---|---|
| Poles | 2, 3, 5 |
| Height | 9mm |
| Wire Orientation | Vertical |
| Clamp Type | Leaf Spring |
| Colour | Black |
Product Description

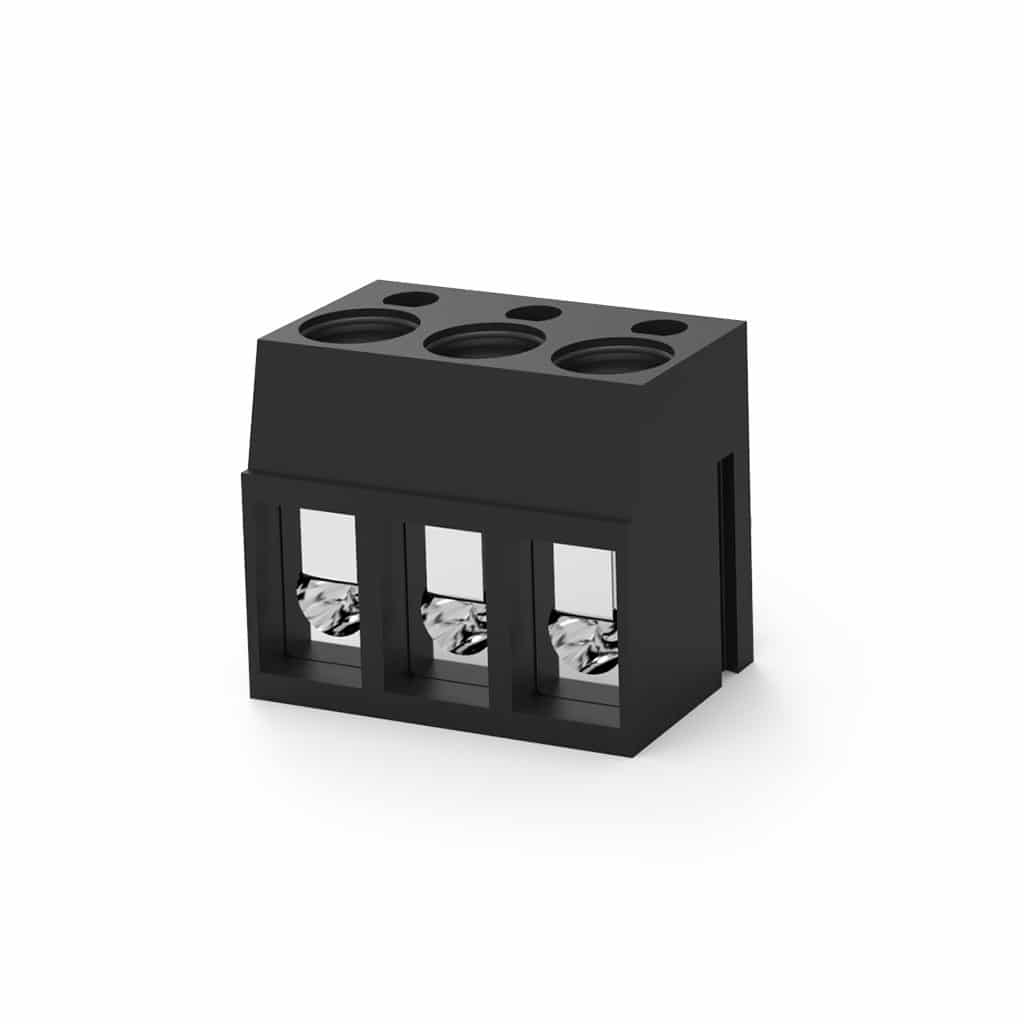

DG300R is a 90 Degree – Vertical wire insertion style leaf spring connector from Degson. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of ways can be assembled by using a 2 & 3 way.
DG300 series is UL (E228872) and VDE (40022125) approved.
- Pitch 5.0mm
- 90 Degree
- Leaf Spring
- 9mm High – 12.6mm Depth
- Ambient Temperature – -30 + 120C
- Housing – PBT
- Screw – M3 slotted
- UL File number E228872 – 14-22 Awg – 10A
- VDE File number 40022125 – 1-2.5mm2 – 24A
- Black colour stocked
