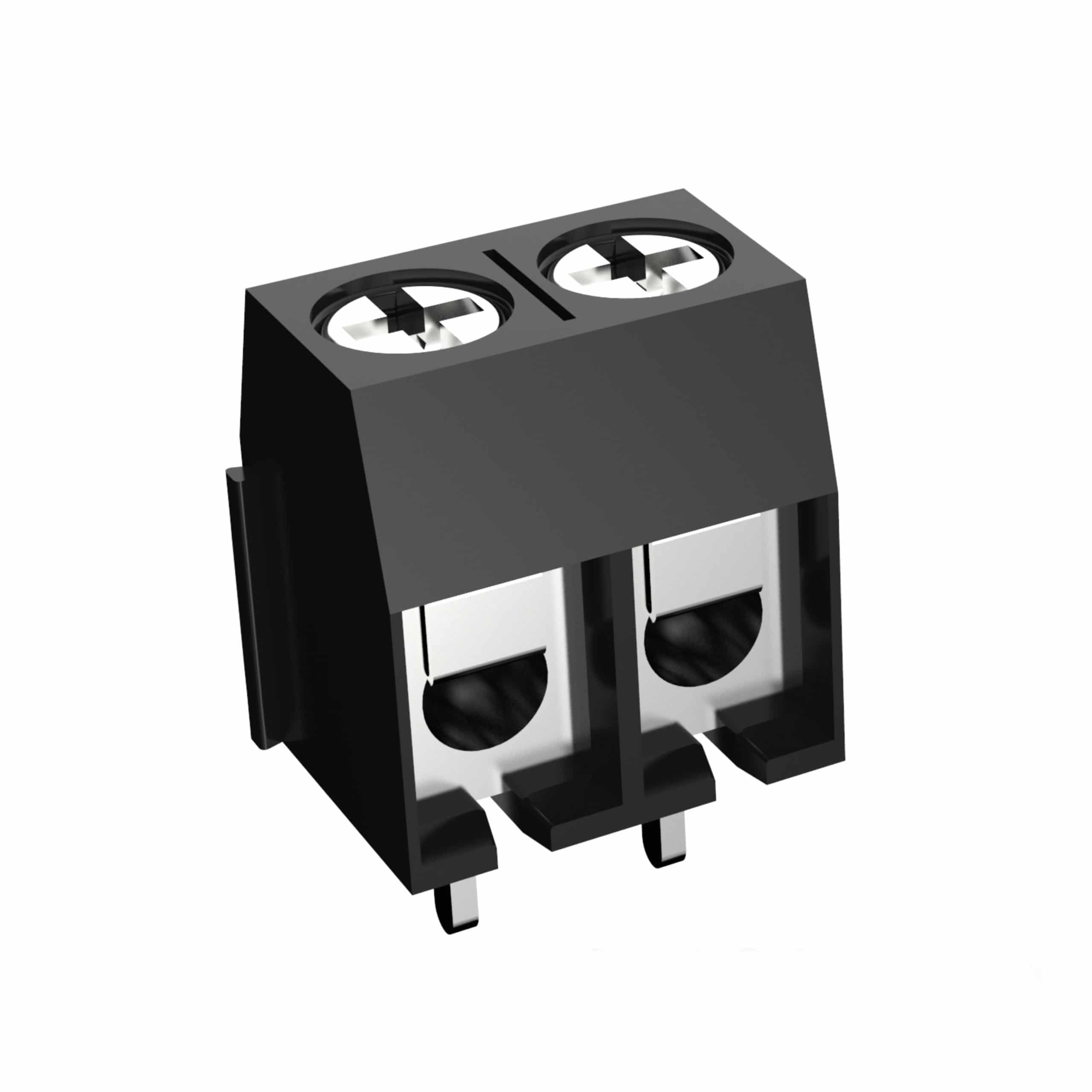

Leaf Spring , 5.0mm Pitch , DG301-5.0-xxP-1310AH
Product specs
| Pitch | 5mm |
|---|---|
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Clamp Type | Leaf Spring |
| Colour | Black |
Product Description
DG301-5.0 series is a leaf spring connector from Degson with a height of only 10mm. Product is available in multiple poles and different colours upon request. Product is interlocking so can be made up using any number of ways.
DG301 series is UL (E228872) approved.
- Pitch 5.0mm
- 10mm High – 7.6mm Depth
- Ambient Temperature – -30 + 120C
- Housing – PBT
- Screw – M2.5 Combi
- UL File number E228872 – 14-22 Awg – 15A
- Interlocking
