Leaf Spring – 5.0mm Pitch , DG306-5.0-xxP-1300AH

SKU: DG306-5.0-xxP-1300AH Categories: , , Manufacturer:

Product specs

Height

10mm

Pitch

5mm

Wire Orientation

Horizontal

Poles

2, 3

Clamp Type

Leaf Spring

Colour

Blue, Black

Product Description

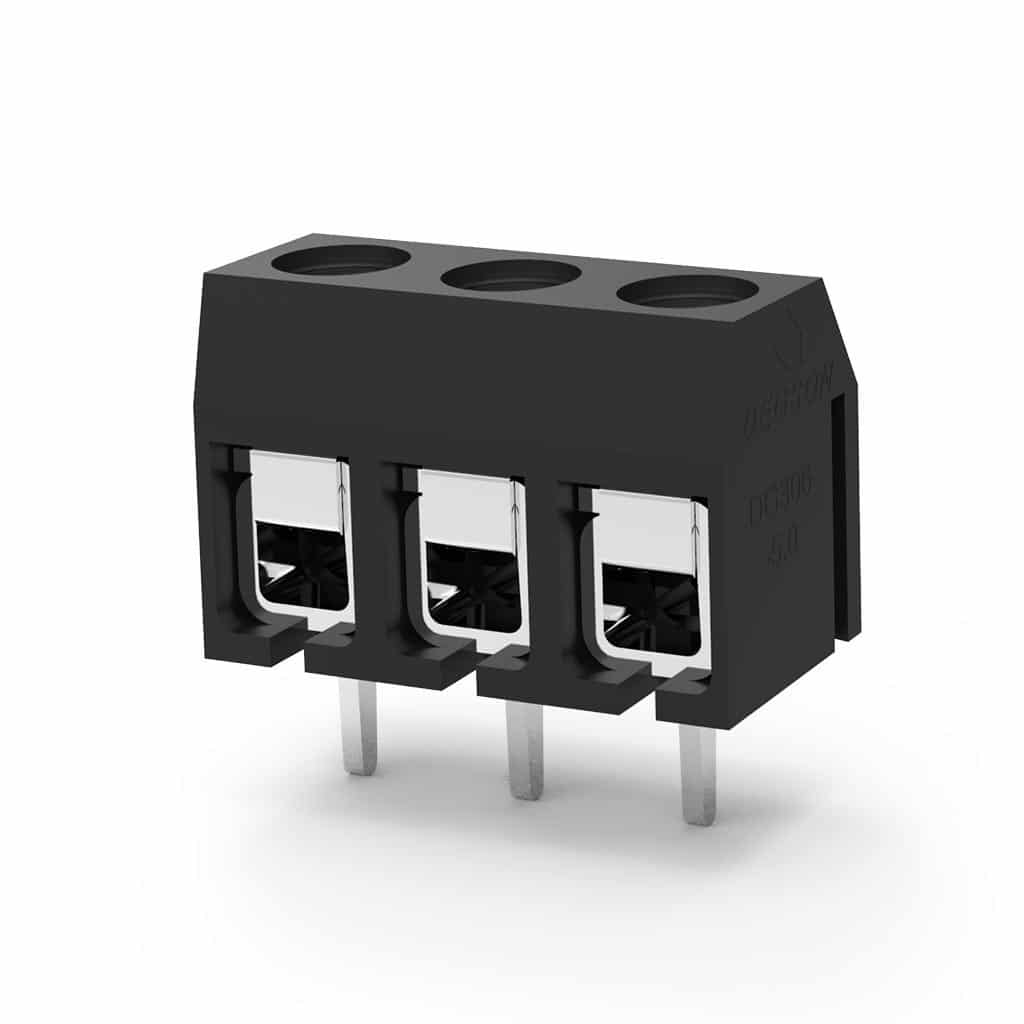

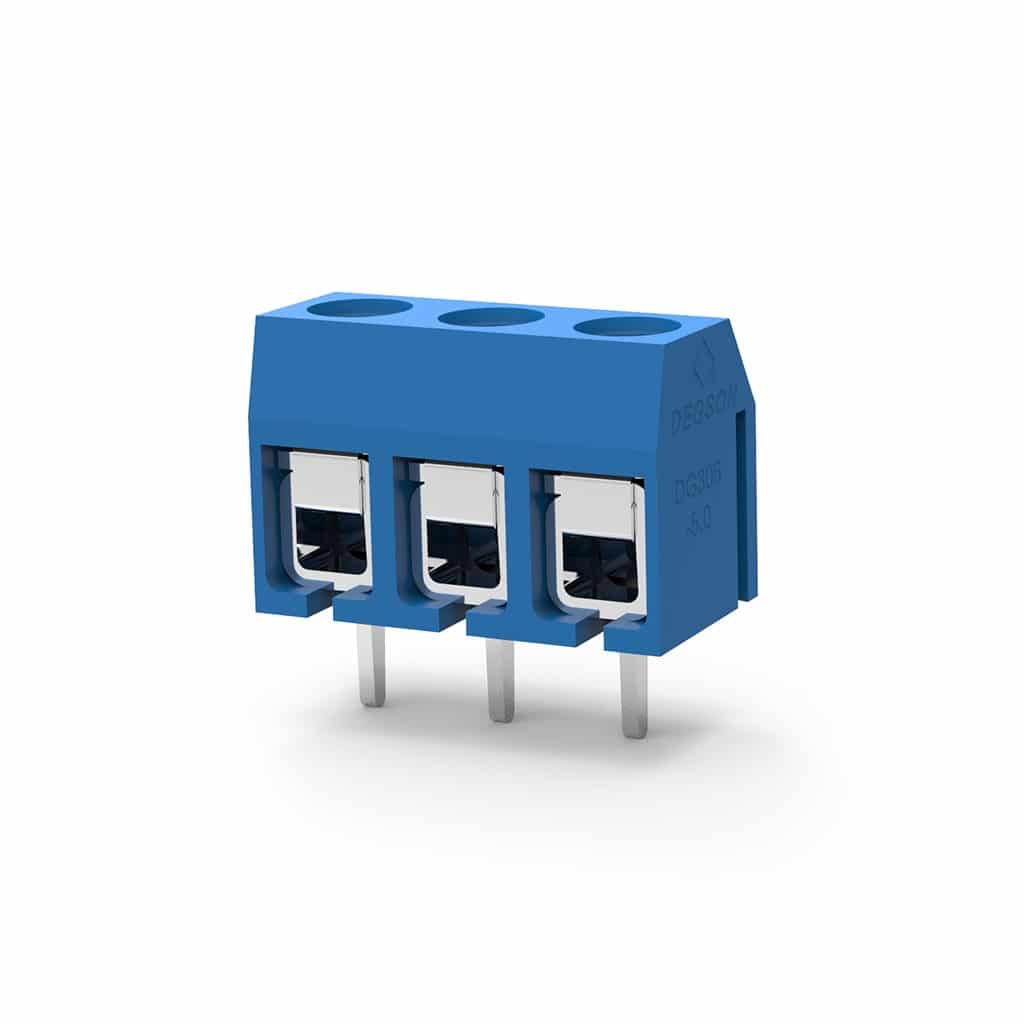

DG306-5.0 series is a square cage leaf spring connector with a height of only 10mm. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of ways can be made up with a 2 & 3 way combination.

DG306 series is UL (E228872)



  • Pitch 5.0mm
  • 10mm High – 7.6mm Depth
  • Ambient Temperature – -30 + 120C
  • Housing – PBT
  • Screw – M2.5 slotted
  • UL file number E228872 – 14-22awg – 10A @ 300v
  • Interlocking
