PCB Mount 47000 Series 10w Regulated

SKU: 47000-10 Category: Manufacturer:

Product specs

Weight 80.2 g
Dimensions 48 × 40 × 26 mm
Input Range

85-265Vac, 120-370Vdc


3.3V, 5V, 9V, 12V, 15V, 18V, 24V




420mA, 560mA, 670mA, 830mA, 1.1A, 2A, 3A

Min-Max Tamb (°C)

-25°C, +60°C

Product Description

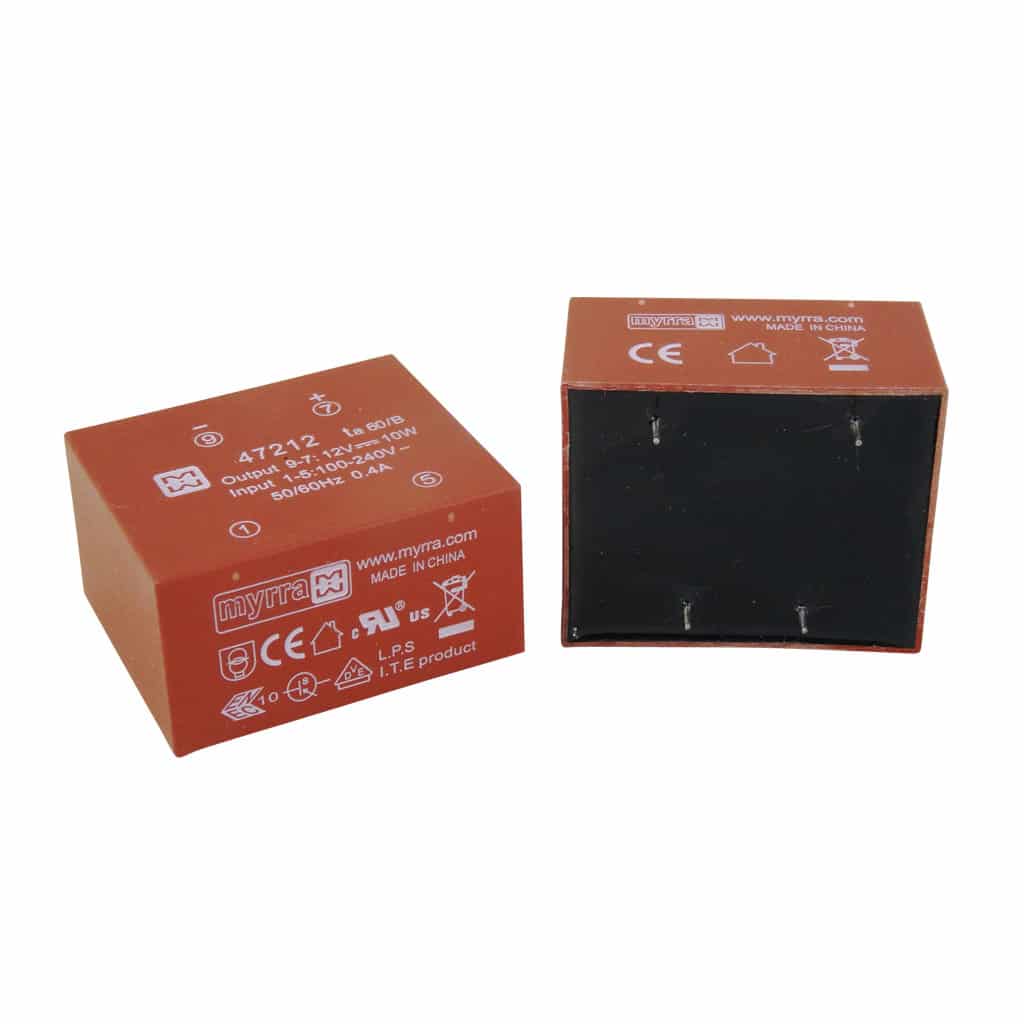

Myrra 47000 Series Power Supply. Single output 10W regulated.

Available from 3.3v to 24v.

  • 10W Small Compact Size – PCB Mount
  • Single Output – Regulated
  • Output Range : 3.3VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.1W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star And EC Code Of Conduct
  • Encapsulated Design And Same Footprint As EI48 Transformer: Upgrade Your Application Without Redesign Of PCB
  • Safety :Meets IEC/EN61558-2-16,IEC/EN60950,IEC/EN60335, UL/CUL60950,CE,VDE,ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55032,EN55014 And FCC Part 15, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
