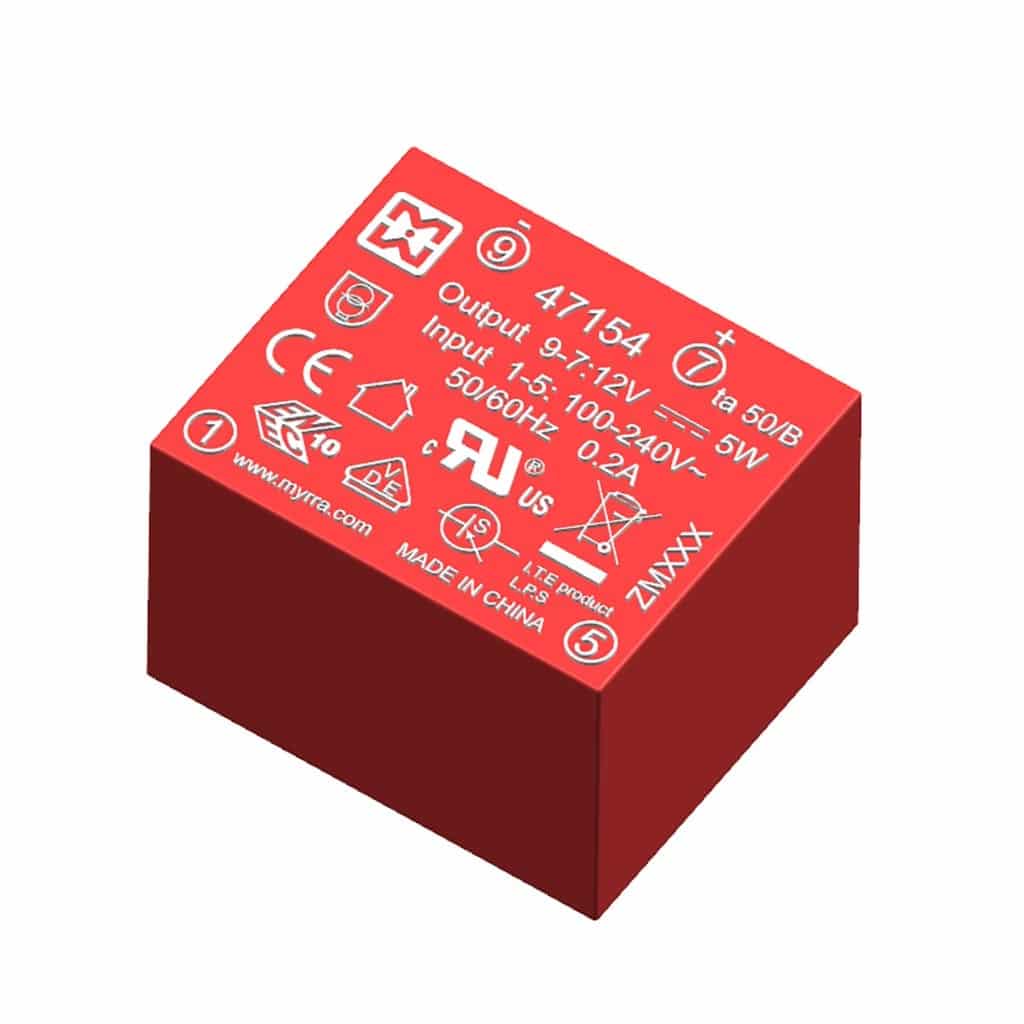

PCM Mount 47000 Series 1 Output 2.5W TO 5W – Regulated

PCM Mount 47000 Series 1 Output 2.5W TO 5W – Regulated

SKU: 47000-2.5-5 Categories: , , Manufacturer:

Product specs

Weight 30 g
Dimensions 32.3 × 27.3 × 21.8 mm
Input Range

85-265Vac, 120-370Vdc
Output

3.3V, 5V, 9V, 12V, 15V, 24V
Power

2.5W, 2.75W, 4.5W, 5W
Current

110mA, 170mA, 210mA, 270mA, 320mA, 420mA, 550mA, 750mA, 900mA, 1.35A
Min-Max Tamb (°C)

-25°C, +50°C, +70°C

Product Description

Myrra 47000 Series Power Supply.

Single output 2.5W~5W Regulated.

  • 2.5 To 5W Small Compact Size – PCB Mount
  • Single Output – Regulated
  • Output Range : 3.3VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.2W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star and EC Code Of Conduct
  • Encapsulated Design And Same Footprint As EI30 Transformer: Upgrade Your Application Without Redesign Of PCB
  • Safety : Meets All Requirements of: IEC/EN61558-2-16, IEC/EN60950,IEC/EN60335, UL/CUL60950, CE,VDE,ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55014 , EN55032, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
