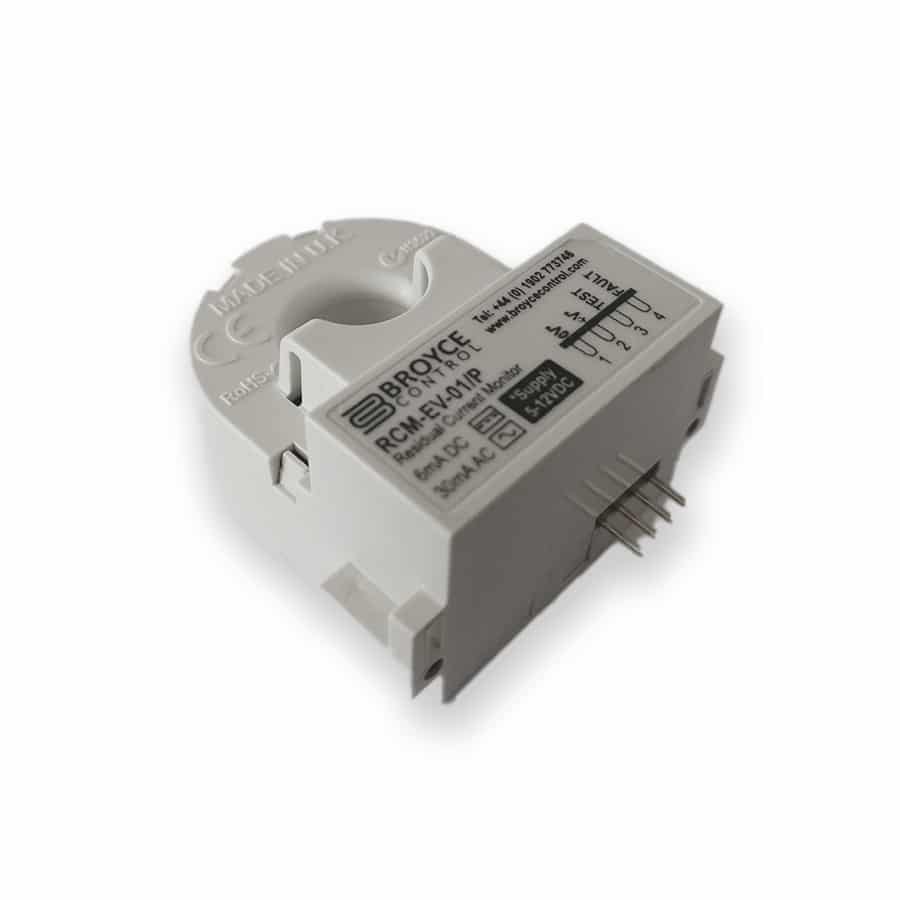

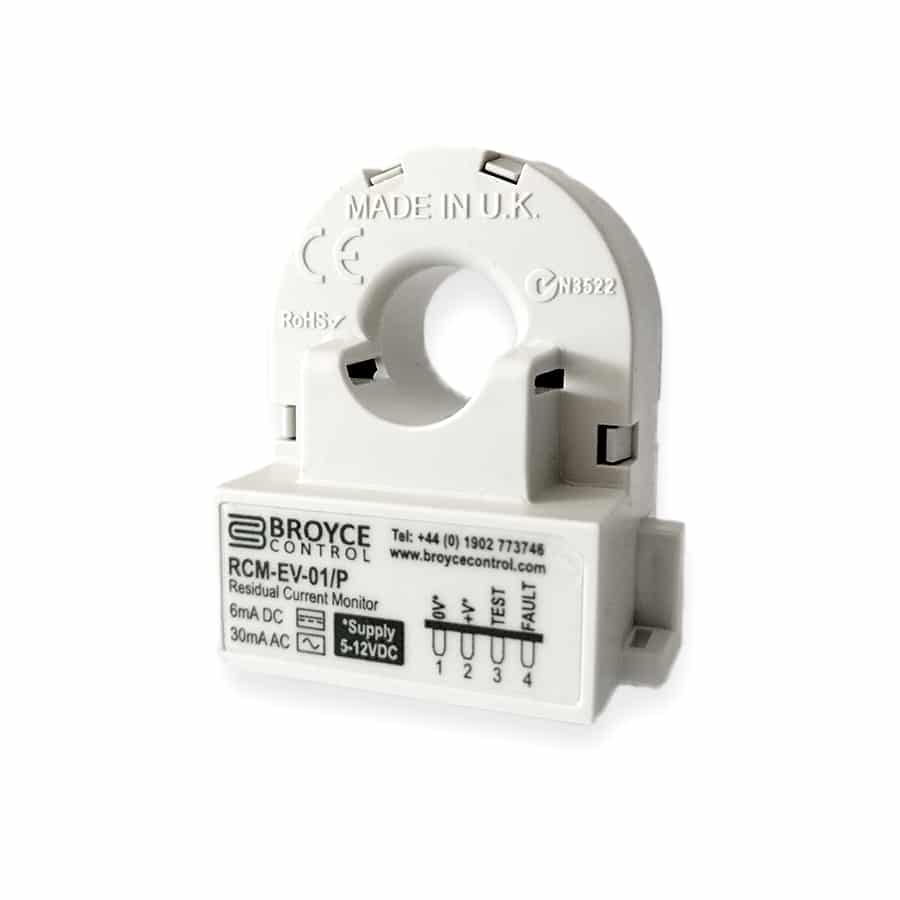

RCM-EV-01 Residual Current Monitor

SKU: RCM-EV-01 Categories: , Manufacturer:

Product specs

Weight 32 g
Dimensions 26.5 × 42.5 × 45.5 mm
Residual Current Monitor

6mA DC/30mA AC (Combined Single Output)

Product Description

  • Designed for Mode 2 Electric Vehicle charging systems (as per IEC 62752)
  • Fixed 6mA DC and 30mA AC trip levels
  • 3000A surge withstand capability
  • Suitable for single phase or three phase loads rated up to 32A
  • Built-in current sensor with 13.5mm dia. aperture
  • Universal mounting/securing options:
    • Direct to PCB and secured in place using fixing screws
    • Attaching to cable using a cable tie and slots provided
  • 4-way (2.54mm pitch) connector – with two options available
    • Male pin header exiting at the underside of the housing (product part no. RCM-EV-01/P)
    • Latching right-angle pin header exiting at the rear of the housing (product part no. RCM-EV-01/S)
  • Operates from 5 – 12V DC
  • “Test” input
  • “Fault” output – Open collector
