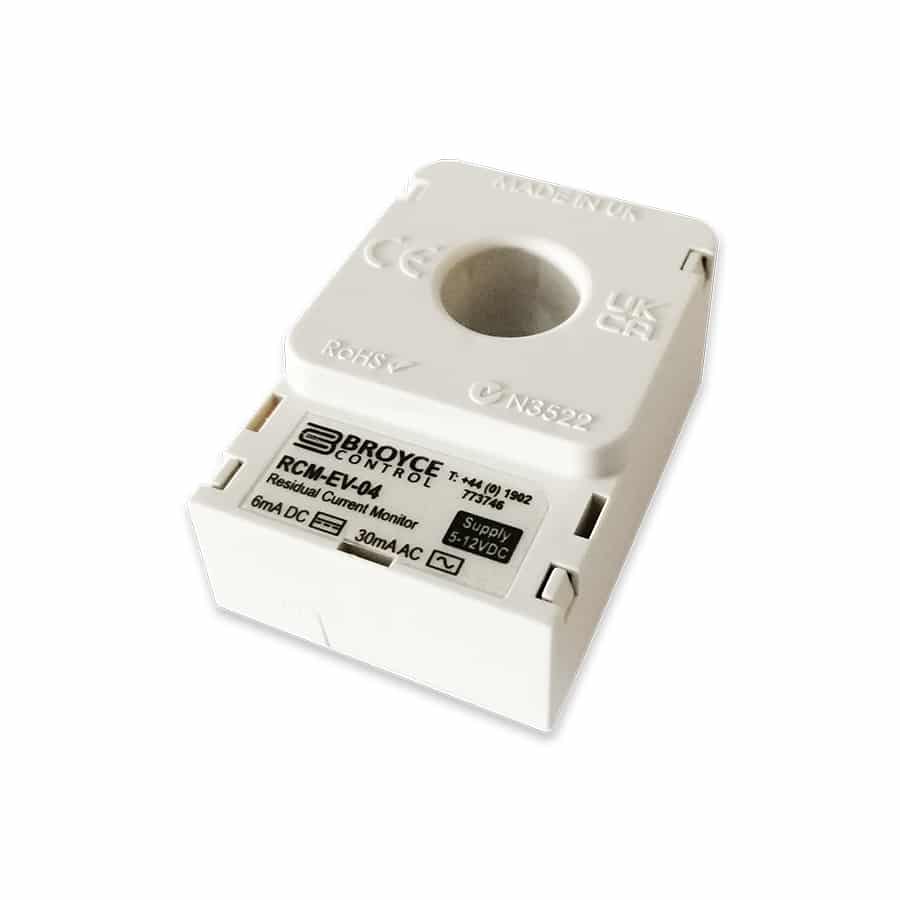

RCM-EV-04 Residual Current Monitor

SKU: RCM-EV-04 Categories: , Manufacturer:

Product specs

Weight 40 g
Dimensions 49 × 34 × 20 mm
Residual Current Monitor

6mA DC/30mA AC (Separate Outputs)

Product Description

  • Designed for Mode 2 Electric Vehicle charging systems (as per IEC 62752)
  • Fixed 6mA DC and 30mA AC trip levels
  • 3000A surge withstand capability
  • Suitable for single-phase or three-phase loads rated up to 32A
  • Built-in current sensor with 13.5mm dia. aperture
  • Designed for direct mounting to PCB and secured in place using 4 solderable pins
  • 2 x 4-way male pin header connector exiting on the underside of housing
  • Operates from 5 – 12V DC
  • “Test” input
  • 3 Open collector outputs – “6mA”, “30mA” and “Fault”
  • PWM output for monitoring purposes
  • Auto-resets when fault removed
