PCM Mount 47000 Series 1 Output 2.4W~5W – Non-Regulated

SKU: 47000-3.2-5 Categories: , , Manufacturer:

Product specs

Weight 30 g
Dimensions 32.3 × 27.3 × 21.8 mm
Input Range

85-265Vac, 120-370Vdc


5V, 9V, 12V, 18V, 24V


2.4W, 2.5W, 3.2W, 5W


130mA, 180mA, 200mA, 210mA, 270mA, 280mA, 360mA, 420mA, 500mA, 560mA, 900mA

Min-Max Tamb (°C)

-25°C, +50°C, +70°C

Product Description

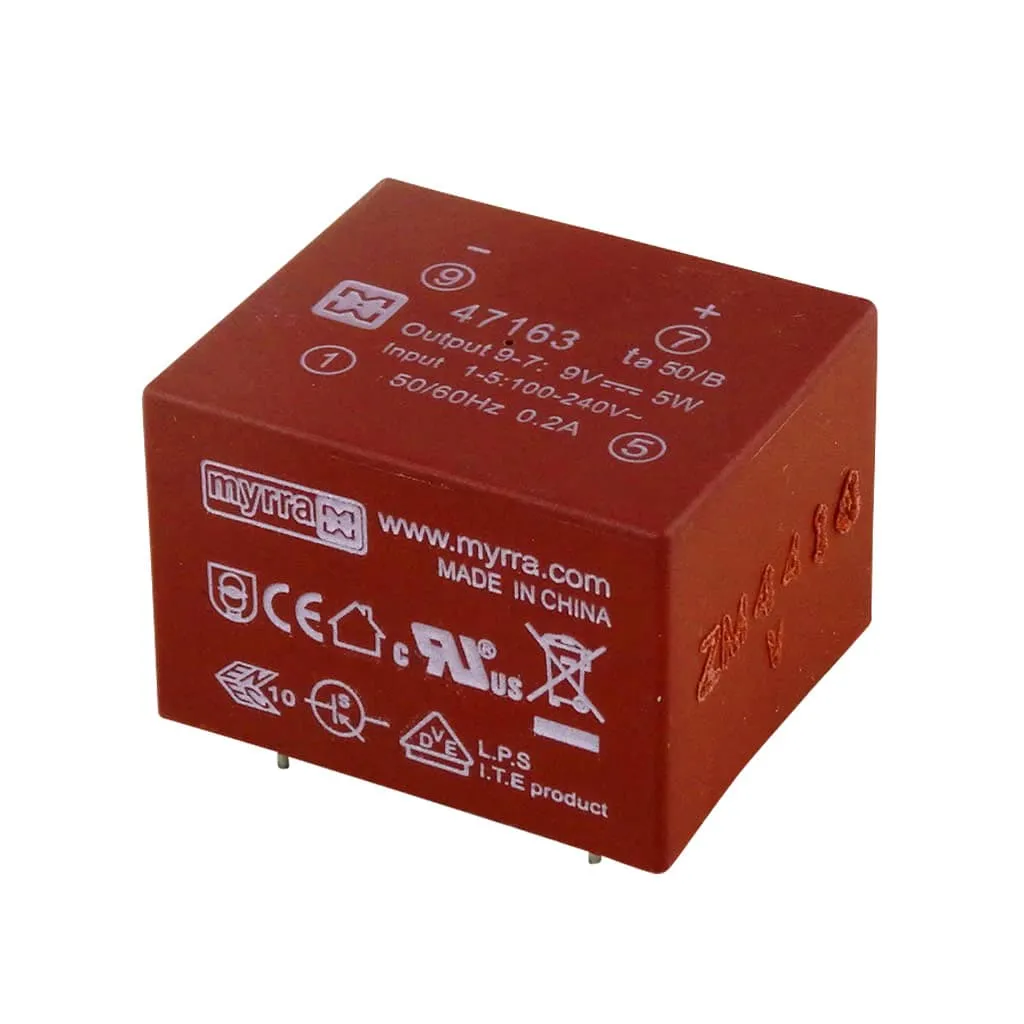

Myrra 47000 Series Power Supply. Single output 3.2W~5W Non-Regulated.

Available from 5v to 24v.

  • 2.4 To 5W Small Compact Size – PCB Mount
  • Single Output – Non Regulated
  • Output Range : 5.0VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.3W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star and EC Code Of Conduct
  • Encapsulated Design And Same Footprint As EI30 Transformer. Upgrade Your Application Without Redesign Of PCB
  • Safety : Meets All Requirements of: IEC/EN61558-2-16, IEC/EN60950,IEC/EN60335, UL/CUL60950, CE,VDE,ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55014 , EN55032, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
