PCB Mount 47000 Series 40w Regulated

SKU: 47000-40 Category: Manufacturer:

Product specs

Weight 150 g
Dimensions 81 × 40 × 26.5 mm
Input Range

85-305Vac, 120-370Vdc


5V, 9V, 12V, 15V, 18V, 24V


30W, 36W, 40W


1.7A, 2.2A, 2.7A, 3.3A, 4A, 6A

Min-Max Tamb (°C)

-25°C, +50°C

Product Description

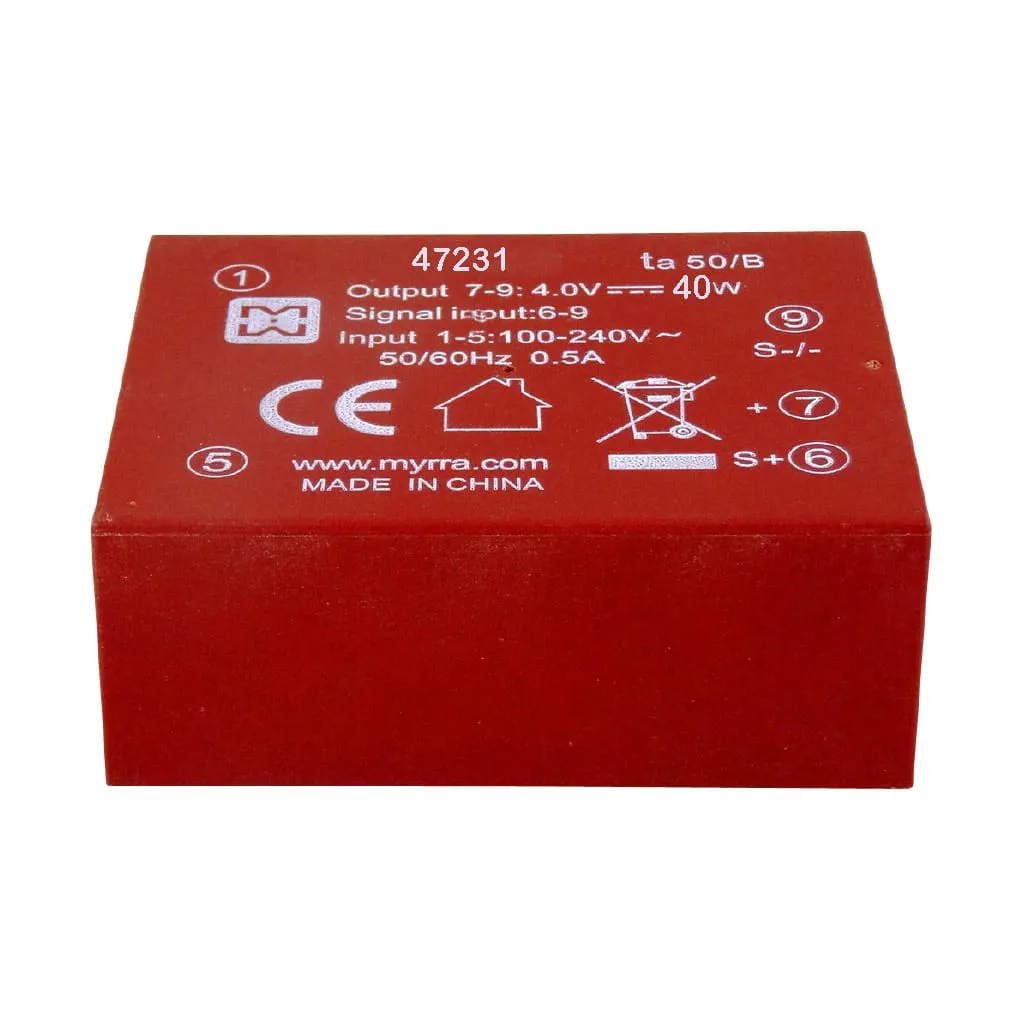

Myrra 47000 Series Power Supply. Single output 40W regulated.

Available from 5v to 24v.

  • 40W Small Compact Size – PCB Mount
  • Single Output – Regulated
  • Output Range : 5VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.15W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star And EC Code Of Conduct
  • Safety :Meets IEC/EN61558-2-16, IEC/EN 62368,IEC/EN60335,UL/CUL 62368,CE,VDE,ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55032,N55014 And FCC Part 15, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
