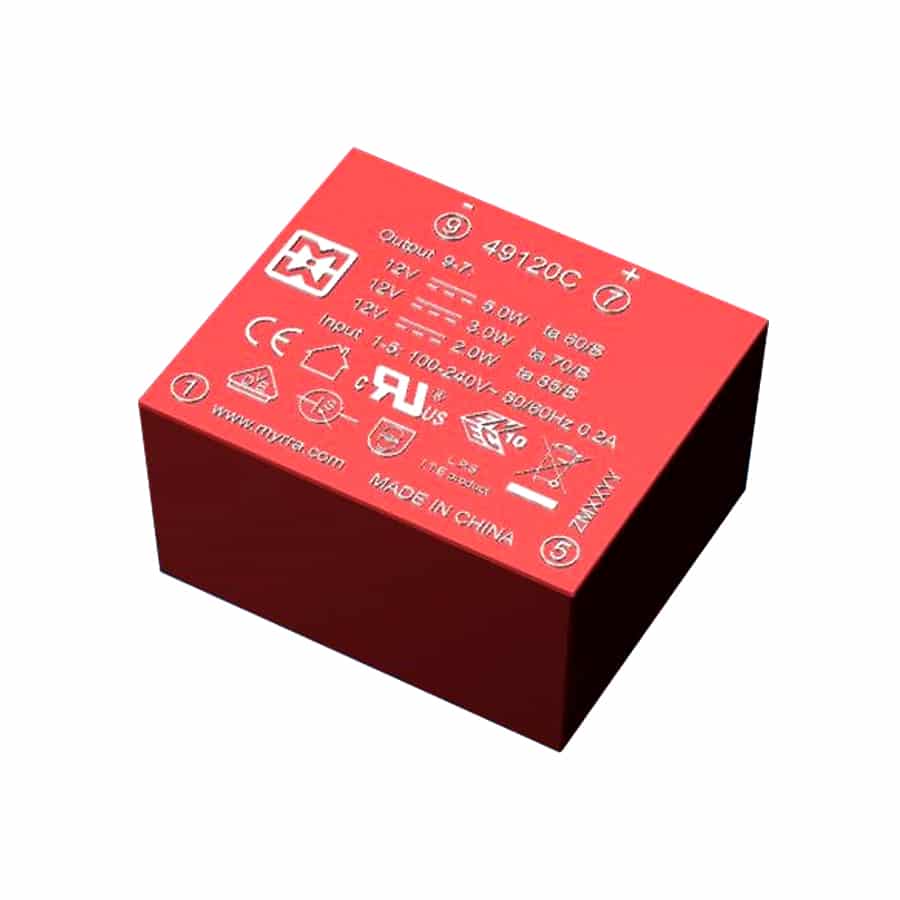

AC/DC Converter 5W Regulated 49 Series

AC/DC Converter 5W Regulated 49 Series

SKU: 49 Series Categories: , , Manufacturer:
Download PDF

Product specs

Weight 30 g
Dimensions 27.3 × 32.2 × 21.8 mm
Input Range

85-265Vac, 120-370Vdc
Output

3.3V, 5V, 9V, 12V, 15V, 18V, 24V
Power

5W
Current

210mA, 280mA, 300mA, 420mA, 560mA, 1000mA, 1500mA
Min-Max Tamb (°C)

-25°C, +85°C

Product Description

  • 2W to 5W Small Compact Size – PCB Mount
  • Single Output – Secondary Side Regulated
  • Output Range : 3.3VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC -370VDC
  • Very Low Standby Power Consumption ≤ 0.1W
  • High Energetic Efficiency: Meets Requirements Of Energy Star and EC Code Of Conduct
  • Encapsulated Design and same Footprint as an EI30 Transformer: Upgrade Your Application without redesigning the PCB
  • Safety: Meets All Requirements of IEC/EN61558-2-16, IEC/EN60335, IEC/EN62368, UL/CUL62368
  • Materials: Uses UL 94-VO Plastic And Resin
  • EMC: Conducted And Radiated Emission conform To EN55032, FCC Part 15, CLASS B without any additional components
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
