PCB Mount 47000 Series 60w Regulated

SKU: 47000-60 Category: Manufacturer:

Product specs

Weight 235 g
Dimensions 94.7 × 47.5 × 29.5 mm
Input Range

85-305Vac, 120-370Vdc
Output

5V, 9V, 12V, 15V, 18V, 24V
Power

50W, 60W
Current

2.5A, 3.3A, 4A, 5A, 6.6A, 10A
Min-Max Tamb (°C)

-25°C, +50°C

Product Description

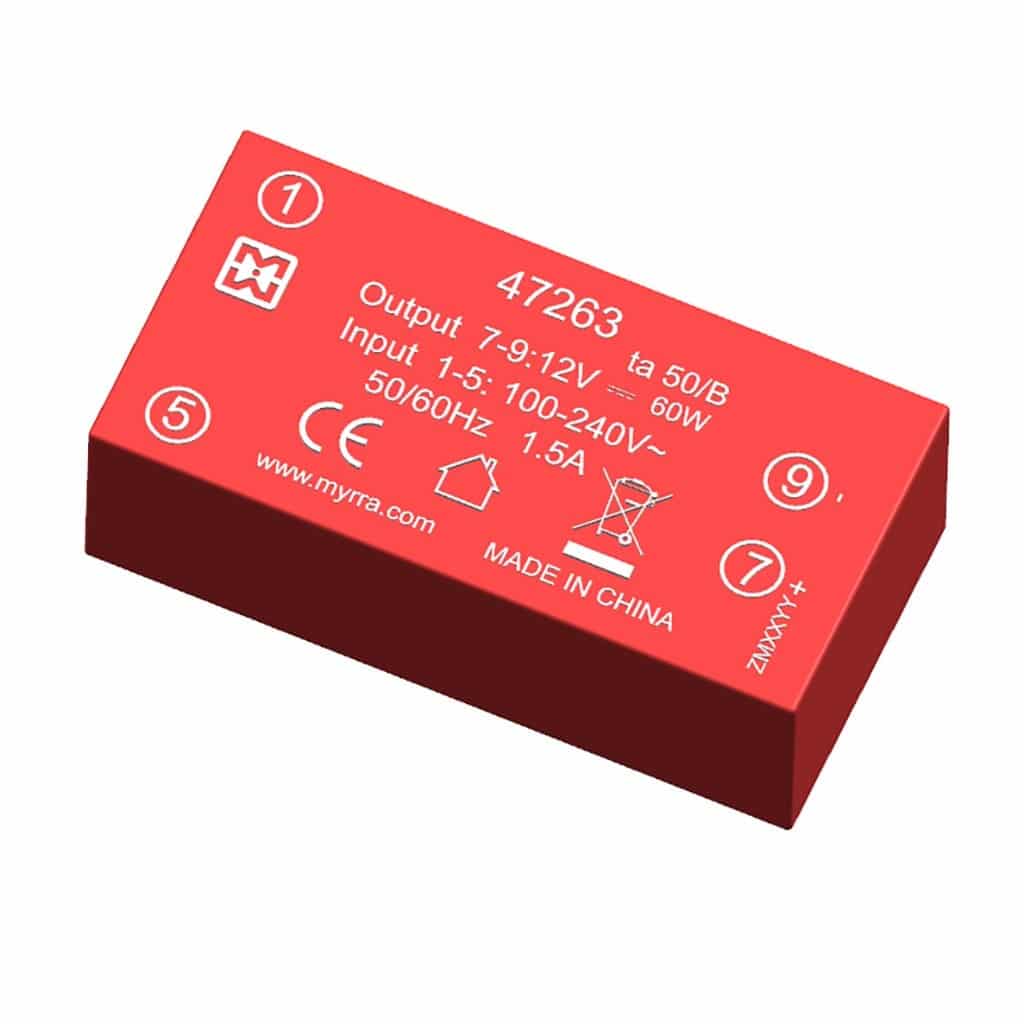

Myrra 47000 Series Power Supply. Single output 60W regulated.

Available from 5v to 24v.

  • 60W Small Compact Size – PCB Mount
  • Single Output – Regulated
  • Output Range : 5VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.15W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star And EC Code Of Conduct
  • Safety :Meets IEC/EN61558-2-16, IEC/EN 62368,IEC/EN60335,UL/CUL 62368,CE,VDE,ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55032,N55014 And FCC Part 15, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
