Plug – 3.5mm Pitch , 15EDGK-3.5-xxP-1400AH
Product specs
| Pitch | 3.5mm |
|---|---|
| Height | 11.1mm |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Colour | Green |
Product Description

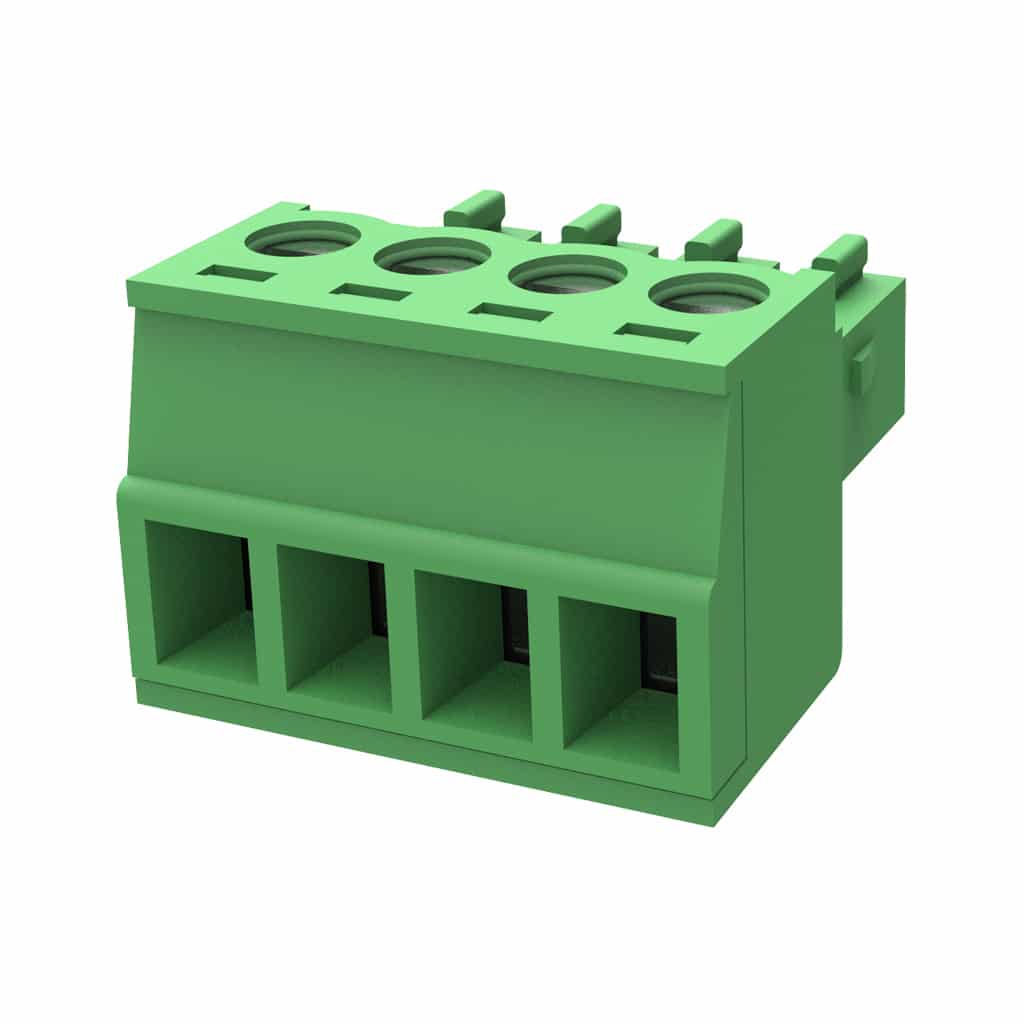

15EDGK-3.5 is a screw type plug available from Degson. Product is available in multiple poles and different colours upon request. Product is compatible with a number of sockets but the most common being the vertical 15EDGVC-3.5 series and horizontal 15EDGRC-3.5.
15EDGK-3.5 series is UL (E228872) , VDE (40025627) & CE
- Pitch 3.5mm
- 11.1mm High – 15.6mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2 slotted
- UL file number E228872 – 16-28awg – 8A @ 300v
- VDE file number 40025627 – 1.5mm2 – 7A @ 250v
