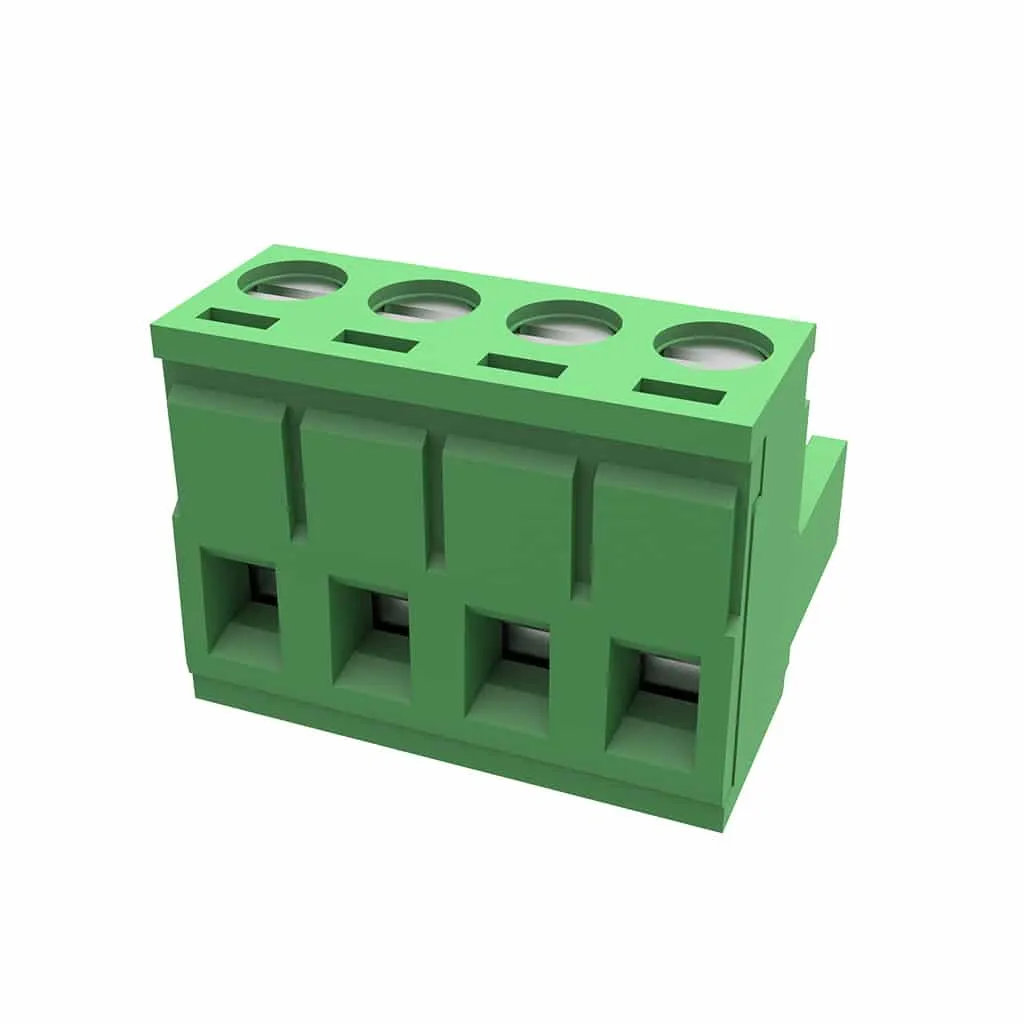

Plug -5.0mm Pitch , 2EDGK-5.0-xxP-1400AH
Product specs
| Pitch | 5mm |
|---|---|
| Height | 15mm |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Colour | Green |
Product Description
2EDGK-5.0 is a 5mm Plug from Degson. Product is available upto 24 poles and different colours upon request. Product is compatible with a number of sockets, the most common being the vertical closed socket 2EDGVC-5.0, horizontal closed socket 2EDGRC-5.0, vertical open socket 2EDGV-5.0 and the horizontal open socket 2EDGR-5.0
2EDGK-5.0 series is UL (E228872) , VDE (40022408) & CE
- Pitch 5mm
- Plug
- 15mm High – 18.2mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw M3 – Slotted
- UL file number E228872 – 12-28awg – 15A @ 300v
- VDE file number 40022408 – 2.5mm2 – 20A @ 320v
