REA012864L series 128×64 COG on PCB OLED (1.28″)
Product specs
| Dimensions | 35.5 × 32.0 mm |
|---|---|
| Pixels | 128×64 |
| Interface | I2C |
| Construction | COG+PCB |
Product Description
The REA012864L series is a 1.28″ Chip-On-Glass on PCB OLED offering 128×64 pixels, with an active area of 29.42mm x 14.2mm within a viewable area of 31.32mm x 15.62mm, it comes with an integrated SH1106 IC and is available in Blue, White or Yellow.
This device is I2C interface
- 128×64 OLED on PCB

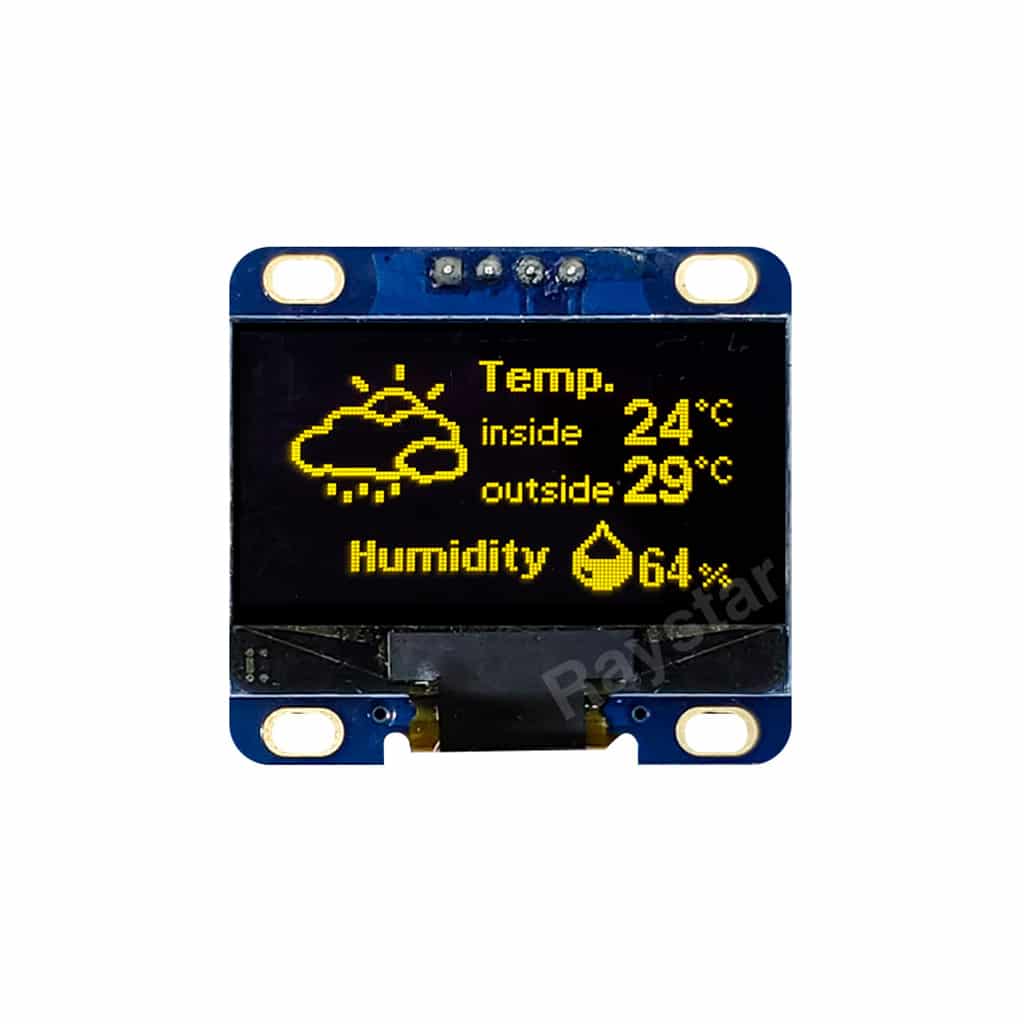

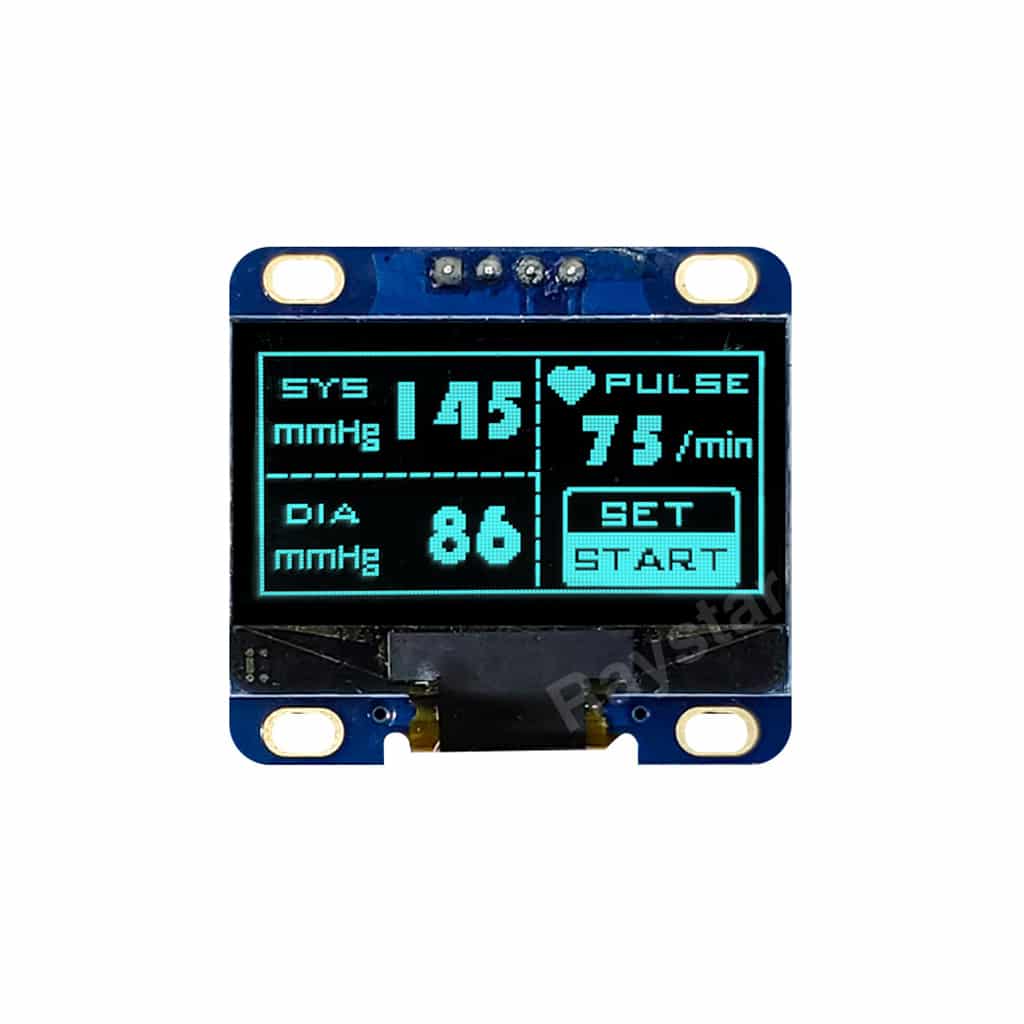

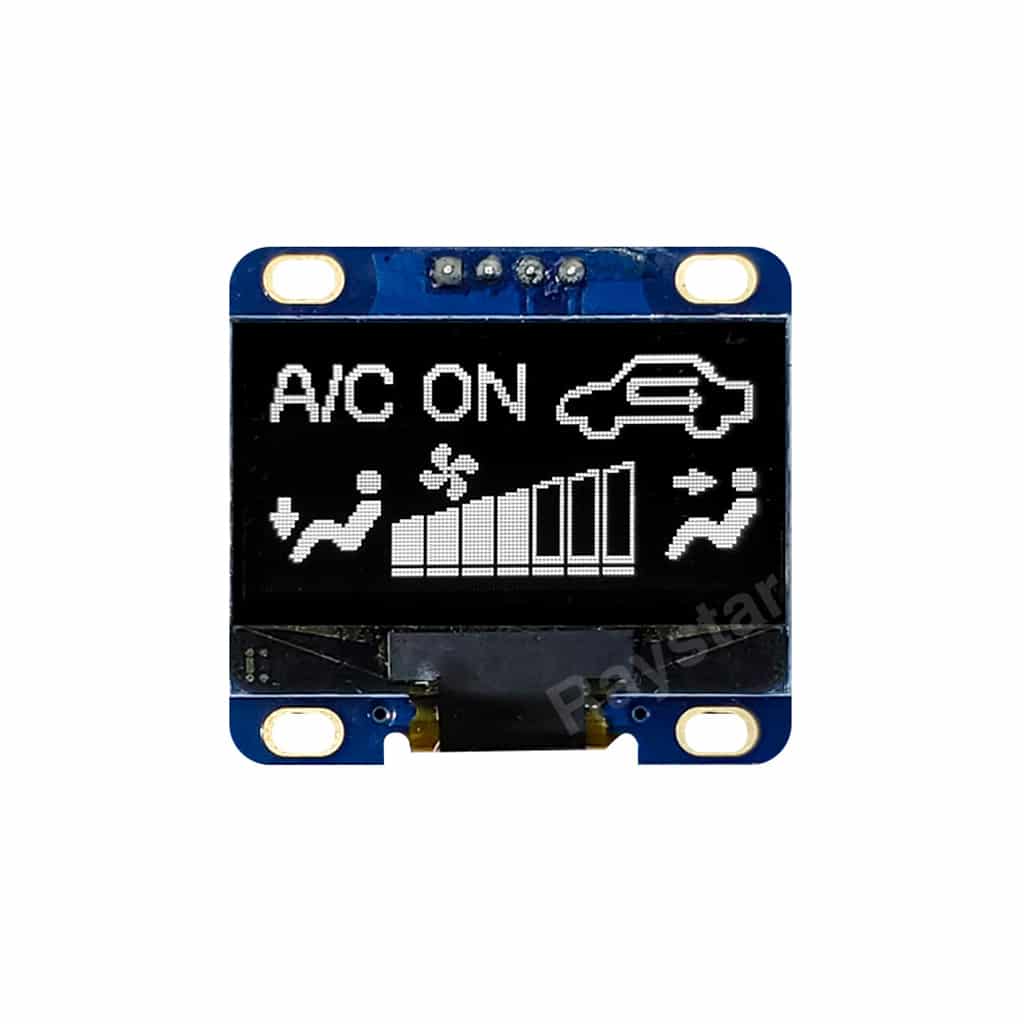

- Available in Blue, White or Yellow
- Dimensions: 35.5mm x 32.0mm
- Viewing Area: 31.32mm x 15.62mm
- Active Area: 29.42mm x 14.2mm
- Dot Size: 0.205mm x 0.197mm
- Dot Pitch: 0.23mm x 0.222mm
- IC on-board: SH1106
- I2C Interface
- Power Supply: 3V
- Standard Operating Temperature of -40°C to +80°C
