REC001601B series 16×1 Character OLED (80.0mm x 36.0mm)

SKU: REC001601B Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 80 × 36 mm
Characters

16×1
Emitting Colour

Blue, Green, White, Yellow
Interface

6800, 8080, SPI
Construction

COB

Product Description

The REC001601B series Chip-On-Board Passive Matrix OLED offers 16×1 characters .With an active area of 56.95mm x 5.55mm within a viewable area of 66.0mm x 16.0mm

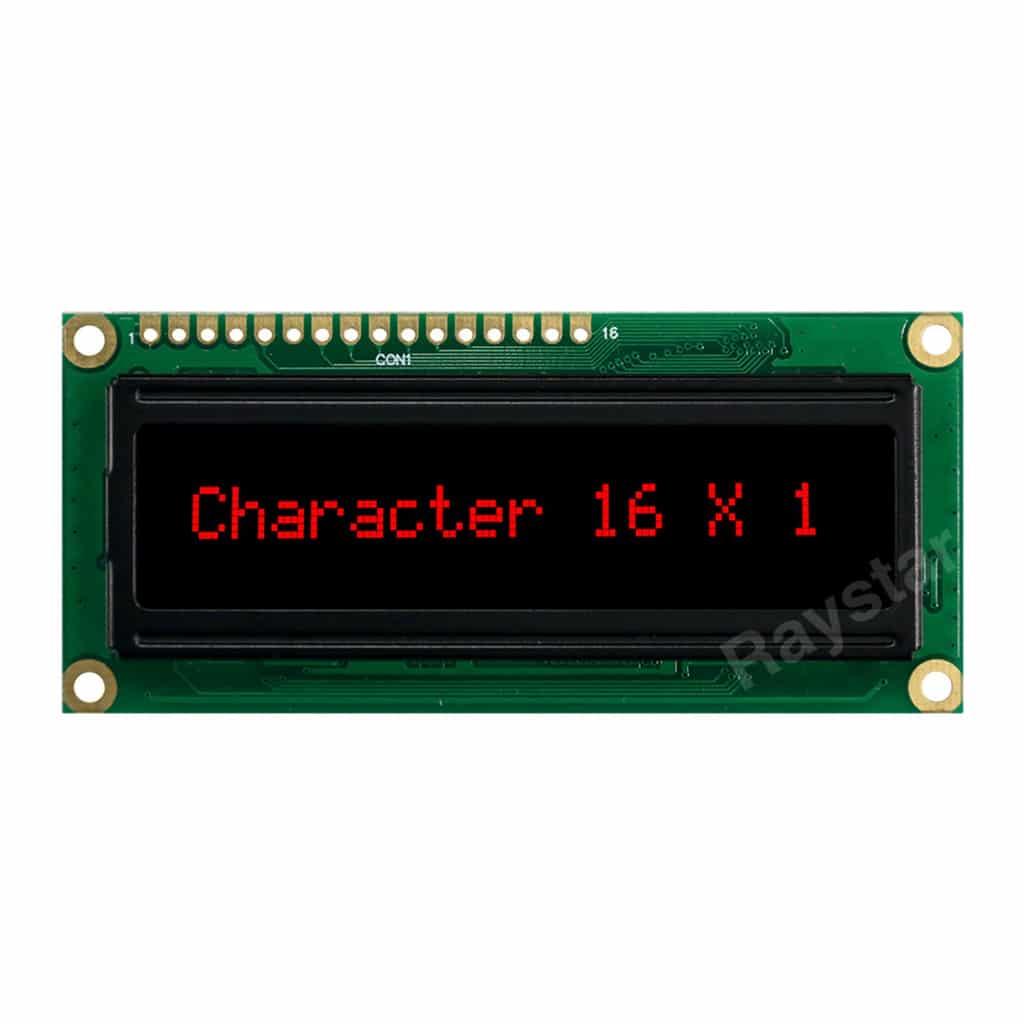

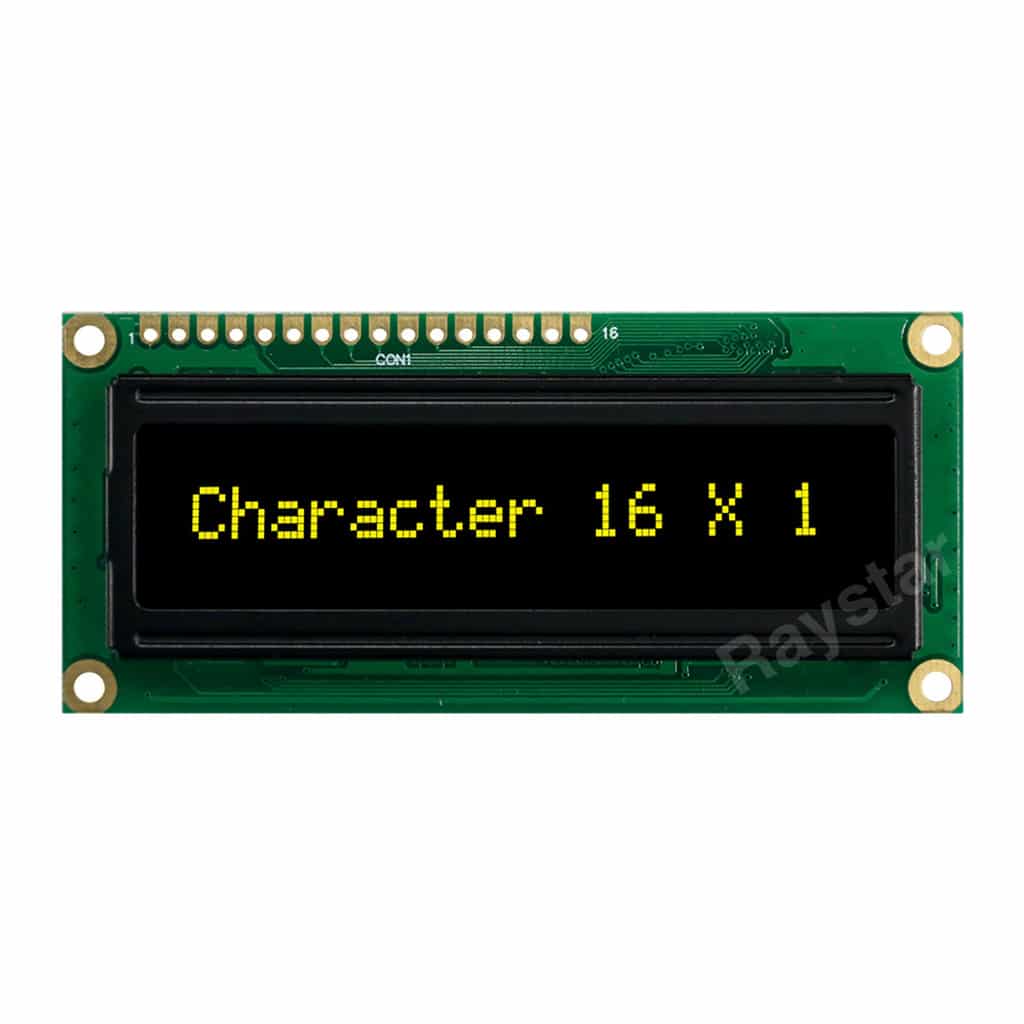

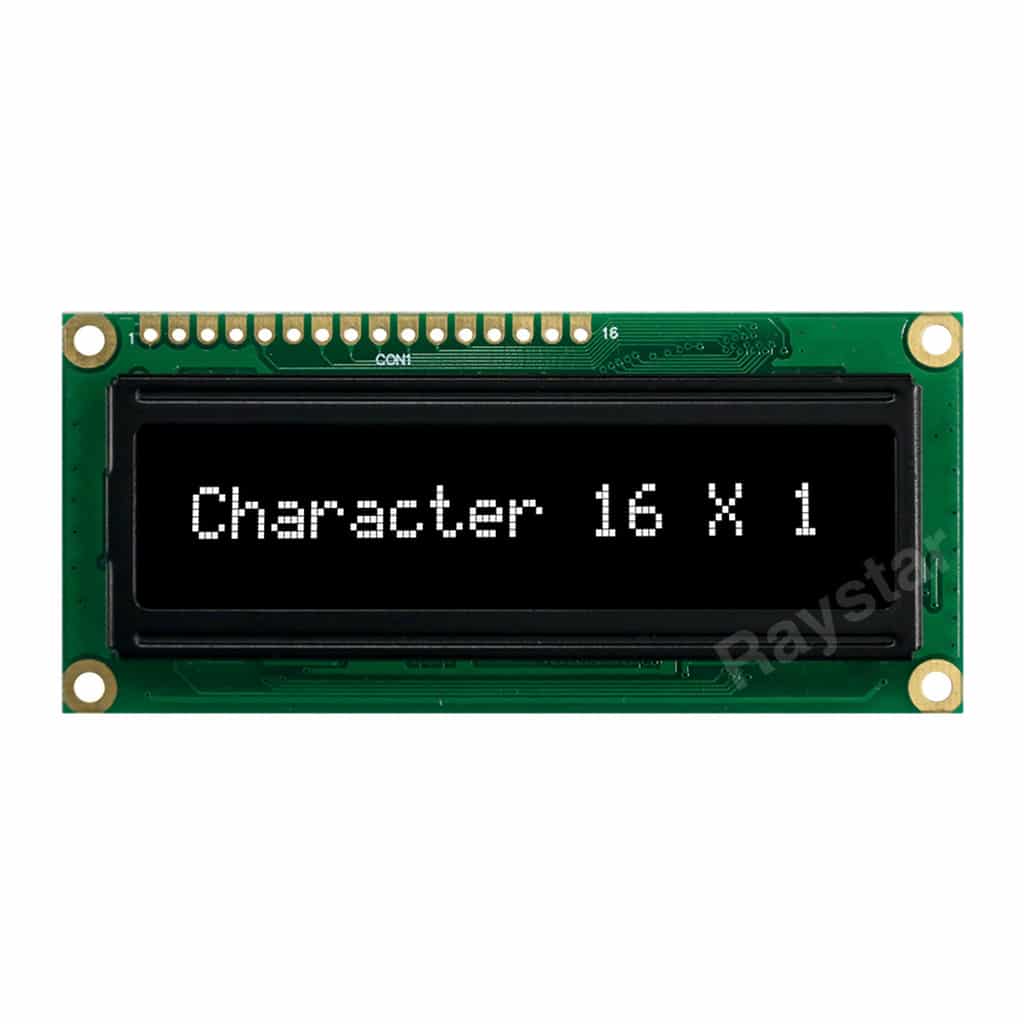

Available in a choice of Blue, Green, White or Yellow

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 16×1 Chip-On-Board OLED
  • Dimensions: 80.0mm x 36.0mm
  • Viewing Area: 66.0mm x 16.0mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
