REX012864G-CTP series 128×64 COG OLED with CTP 66.8mm x 41.3mm (2.42″)

SKU: REX012864G-CTP Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 66.8 × 41.3 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

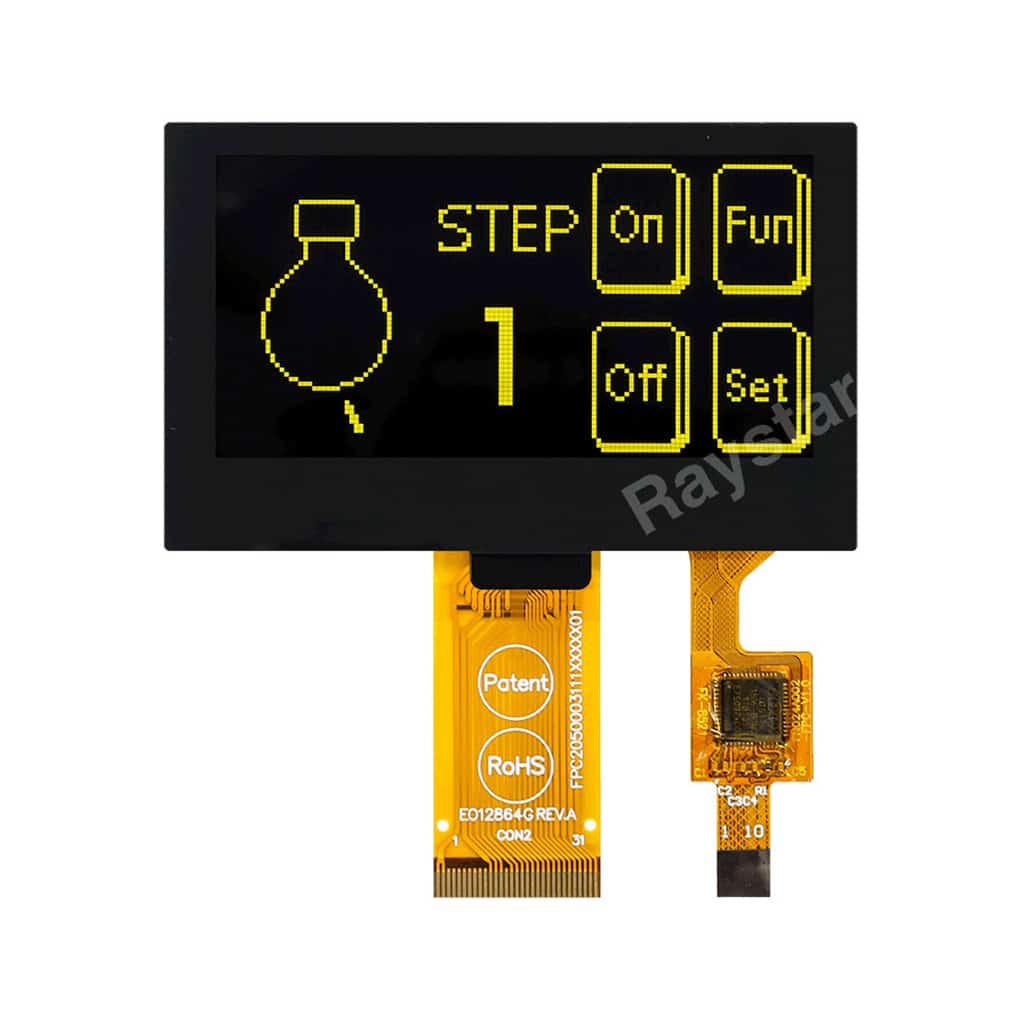

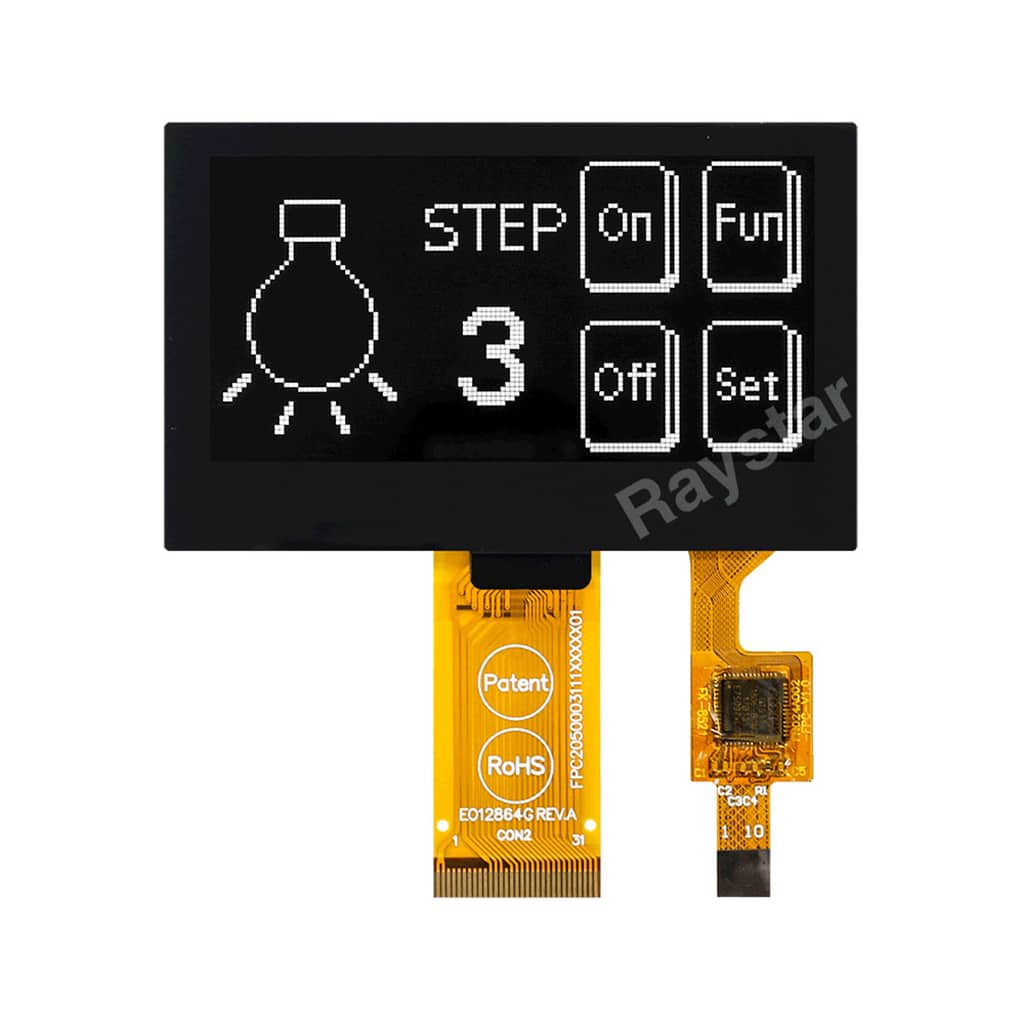

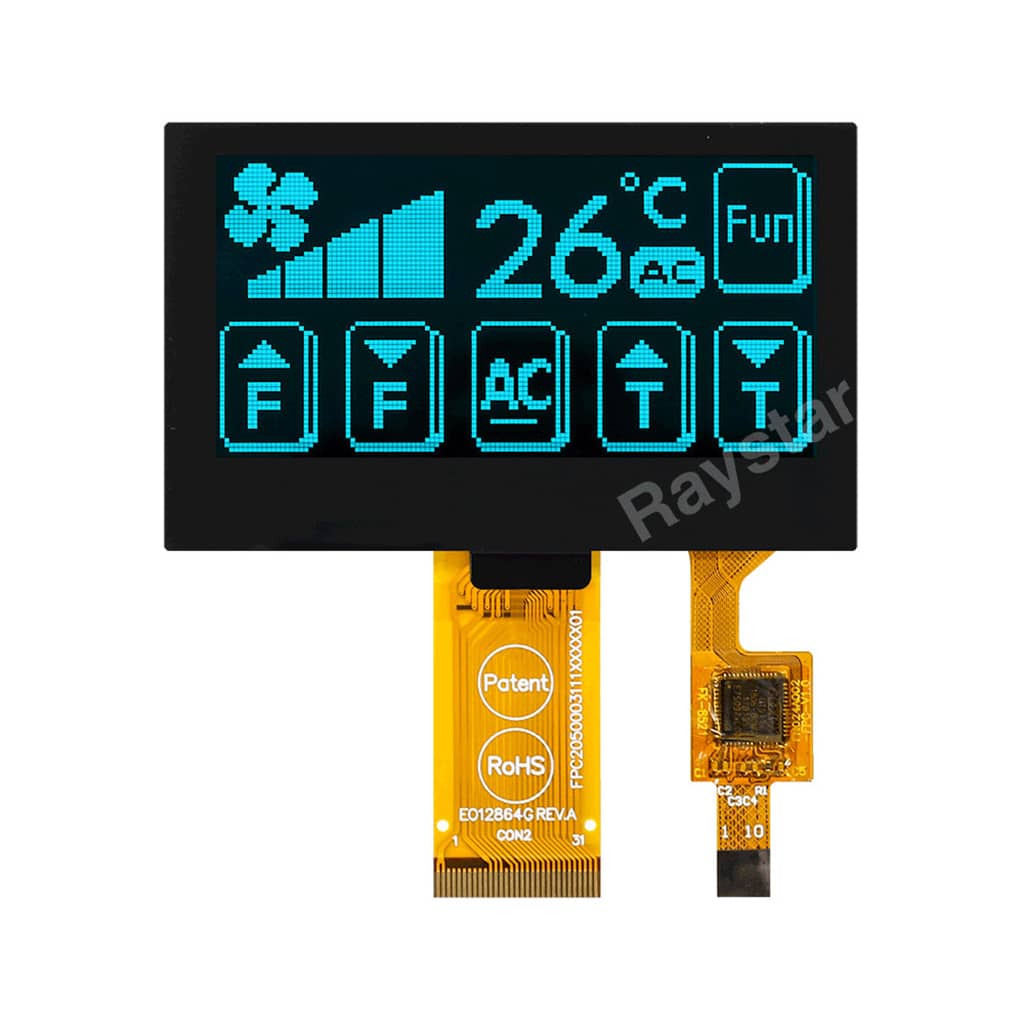

The REX012864G-CTP series is a 2.42″ Chip-On-Glass OLED with integrated an Cap Touch, offering 128×64 pixels within a 56.01mm x 28.49mm viewable area, it comes with an integrated SSD1309ZC IC, and is available in Blue, Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface

We can also a version without a touchscreen if required (REX012864G)









  • 128×64 Graphic OLED
  • Integrated Cap Touch
  • Size: 2.42″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 66.8mm x 41.3mm
  • Viewing Area: 56.01mm x 28.49mm
  • Active Area: 55.01mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1309
  • Cap Touch Interface: I2C
  • Cap Touch IC: GT911
  • Standard Operating Temperature of -40°C to +80°C
