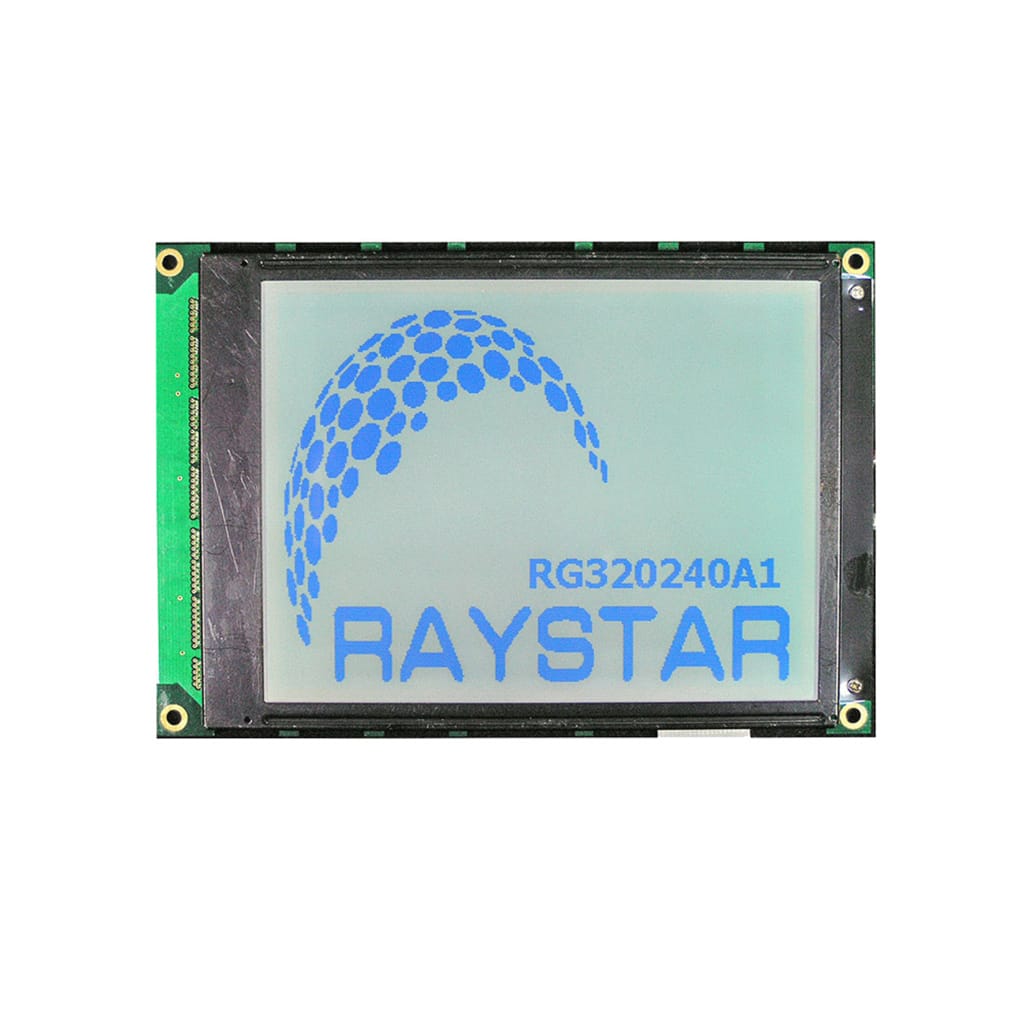

RG320240A1 series 320×240 (QVGA) LCD 160.0mm x 109.0mm (RA8835)

SKU: RG320240A1 Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 160.0 × 109.0 mm
Pixels

320×240
Interface

6800, 8080
Construction

COB

Product Description

The RG320240A1 series is a standard Chip-On-Board QVGA LCD,  offering 320×240 pixels within a 122.0mm x 92.0mm viewable area, this display has the RA8835 controller IC on board.

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 320×240 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 160.0mm x 109.0mm
  • Viewing Area: 122.0mm x 92.0mm
  • Active Area: 115.18mm x 86.38mm
  • Dot Size: 0.34mm x 0.34mm
  • Dot Pitch: 0.36mm x 0.36mm
  • On-Board Controller: RA8835
  • Interface: 6800 & 8080
  • Standard Operating Temperature of -20°C to +70°C
