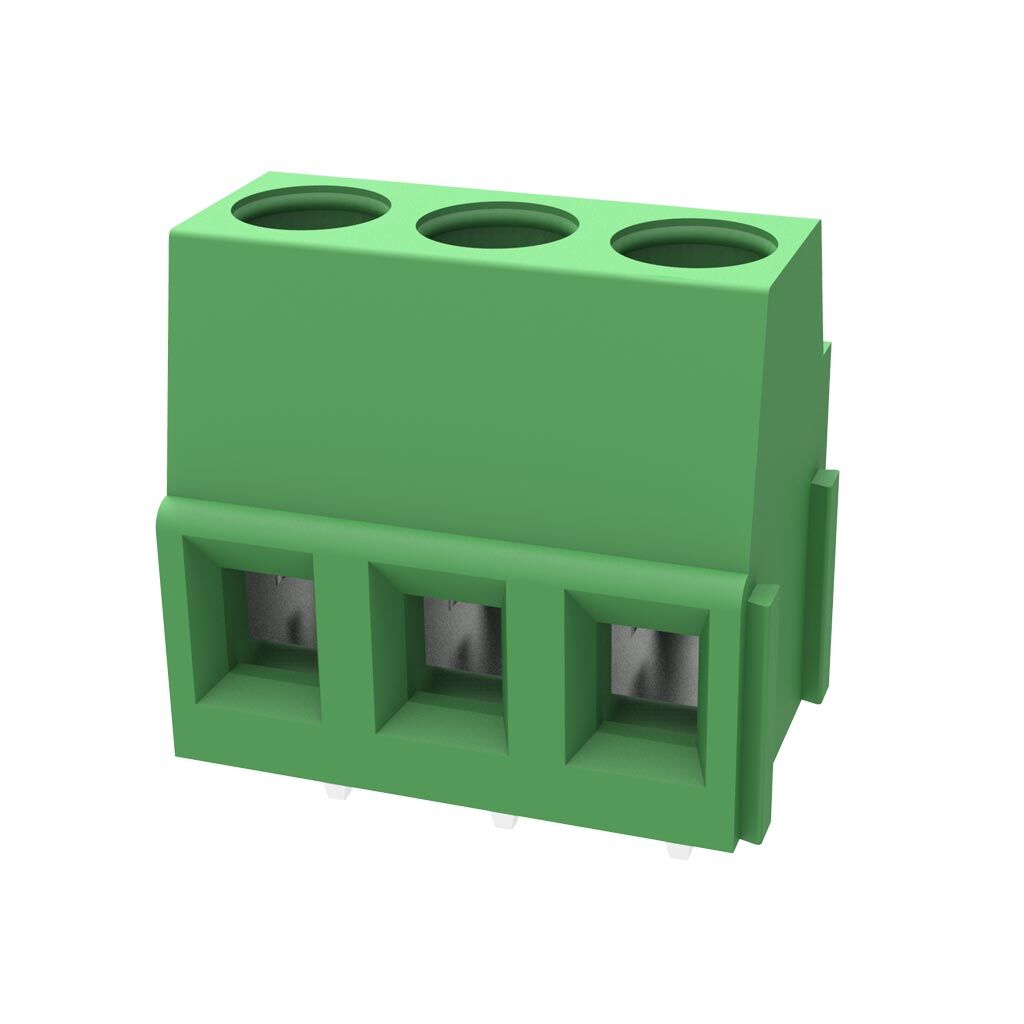

Rising Clamp , 5.08mm Pitch – DG500-5.08-xxP-1400AH
Product specs
| Pitch | 5.08mm |
|---|---|
| Height | 14mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG500-5.08 series is a very popular 14mm height rising clamp terminal block. Product is available in multiple poles and colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
DG500-5.08 series is both UL (E228872) & VDE (40022133) approved and with the highest V0 flammability rating.
- Pitch 5.08mm
- 14mm High – 10mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- Torque – 3.54 lb/In
- UL File number E228872 – 12-30 Awg – 20A @ 300v
- VDE File number 40022133 – 2.5mm2 – 18A @ 250v
- Interlocking device
- Colour Green as standard
