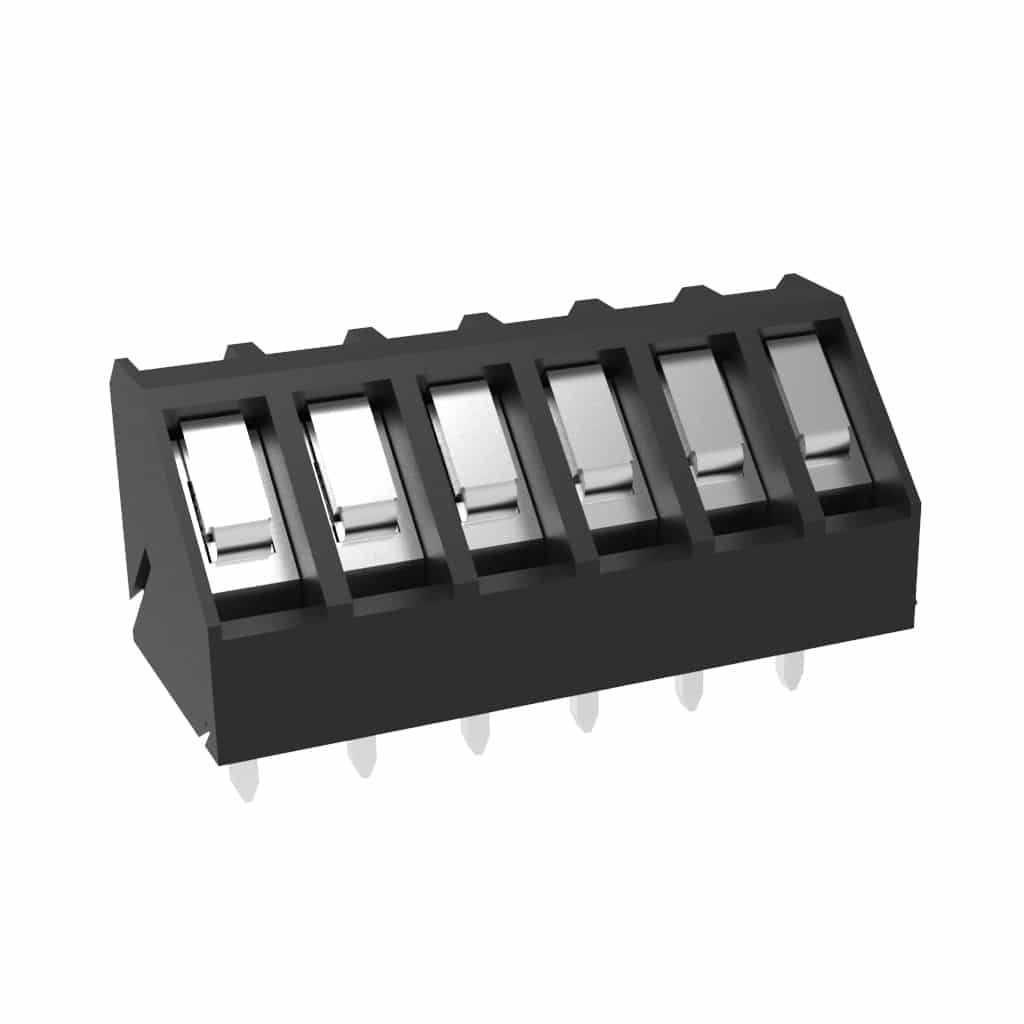

Rising Clamp , 5.0mm Pitch , 45Degree- DG330-5.0-xxP-1300AH
Product specs
| Height | 12.5mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | 45° |
| Poles | 2, 3, 4, 5, 6, 7 |
| Clamp Type | Rising Clamp |
| Colour | Black |
Product Description
DG330-5.0 series is a 45 degree wire entry rising clamp terminal block from Degson. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
DG330-5.0 series is both UL & VDE Approved.
- Pitch 5.0mm
- 45 degree Wire Entry
- 12.5mm High – 12.5mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- UL File number E228872 – 12-22 Awg – 15A @ 300v
- VDE – 2.5mm2 – 24A @ 250v
- Interlocking device
