Rising Clamp , 5mm Pitch – DG128-5.0-xxP-1400AH
Product specs
| Height | 14.1mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |

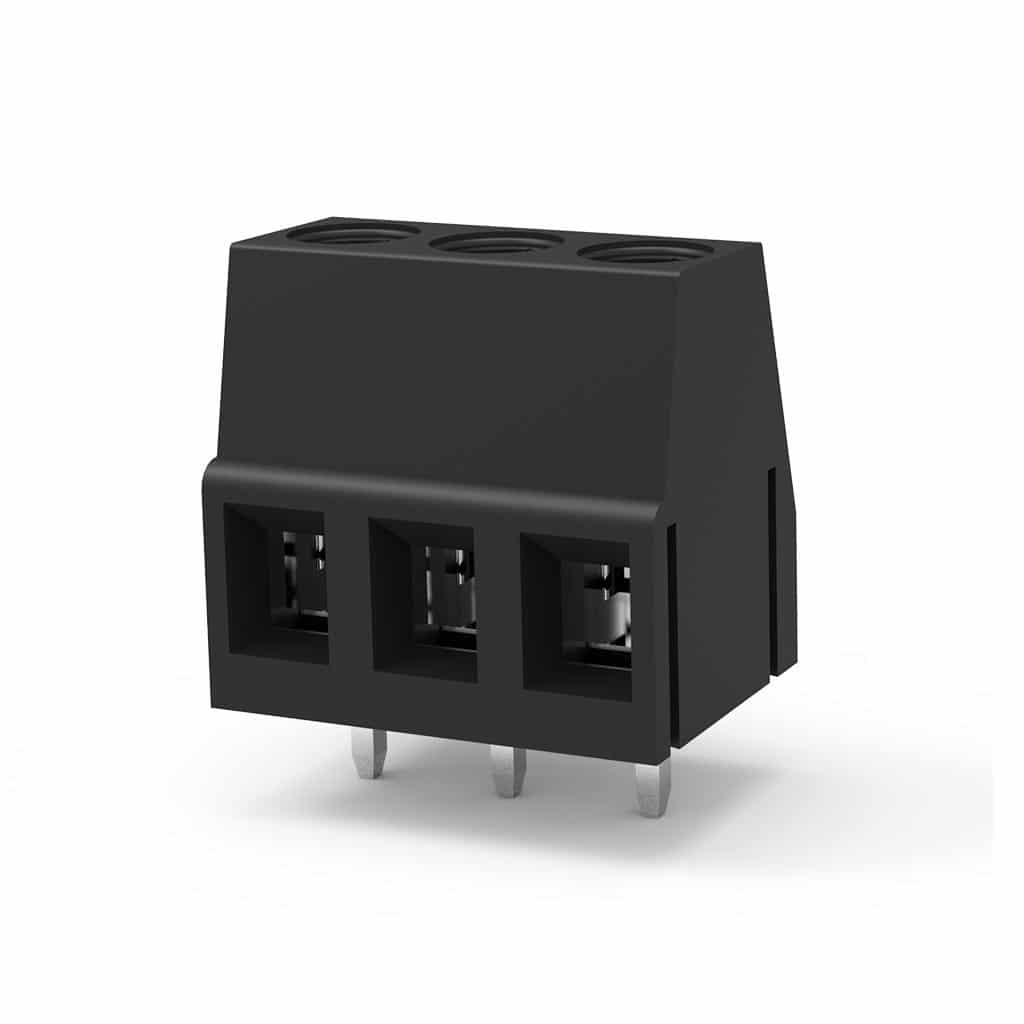

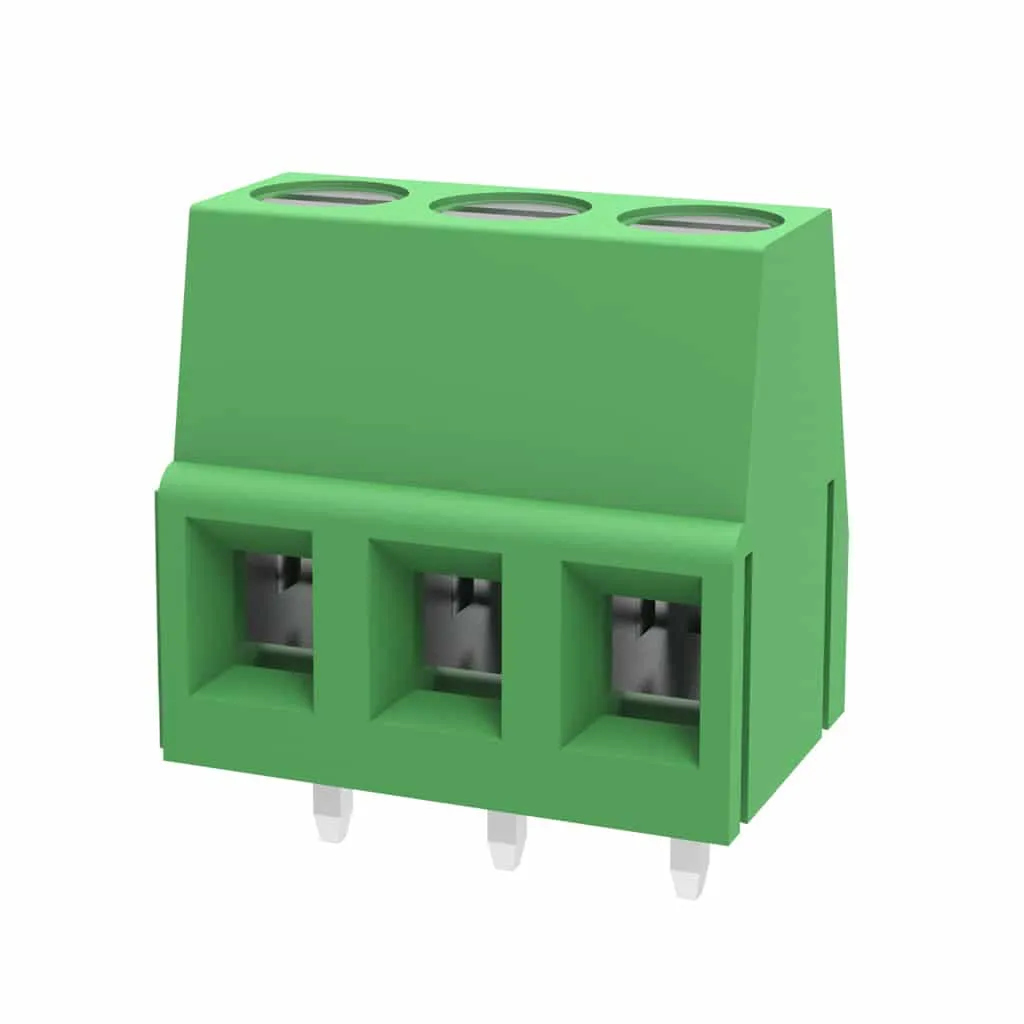

| Colour | Black, Green |
Product Description
DG128-5.0 series is Degsons most popular rising clamp terminal block with a height of 14.1mm. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
Dg128 series is both UL (E228872) & VDE (40022088) approved and with the highest V0 flammability rating.
- Pitch 5mm
- 14.1mm High – 10.2mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- Torque – 3.54 lb/In
- UL File number E228872 – 12-30 Awg – 20A @ 300v
- VDE File number 40033088 – 2.5mm2 – 18A @ 250v
- Interlocking device
