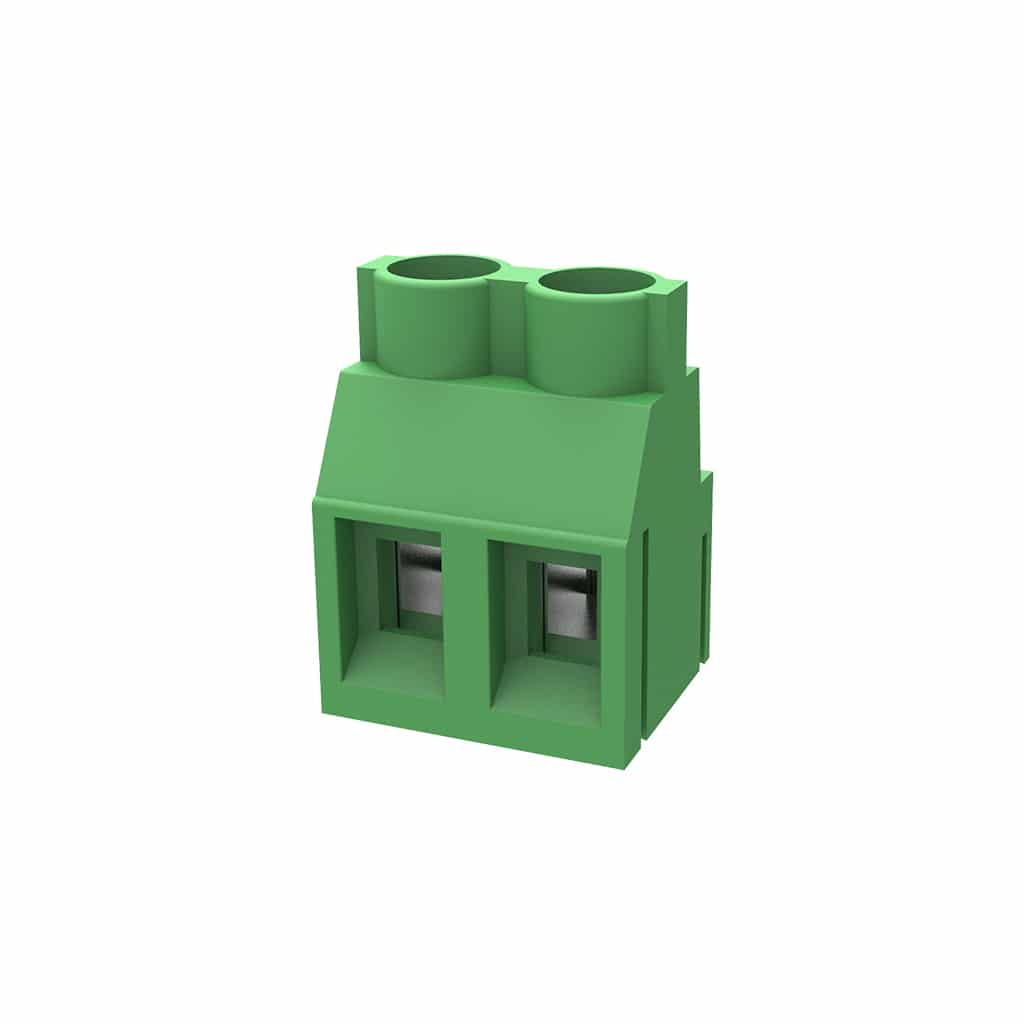

Rising Clamp , 7.62mm Pitch – DG636-7.62-xxP-1400AH
Product specs
| Height | 21.5mm |
|---|---|
| Pitch | 7.62mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG636-7.62 series is Degsons most popular 7.62mm rising clamp terminal block with a height of 21.5mm. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
DG636 series is both UL (E228872) & VDE (40022076) approved and with the highest V0 flammability rating.
- Pitch 7.62mm
- 21.5mm High – 12.5mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M3 slotted
- Torque -4.43lb/In
- UL File number E228872 – 10-26 Awg – 30A @ 300v
- VDE File number 40022076 – 0.2-6mm2 – 32A @ 630v
- Interlocking device
- Colour Green as standard
