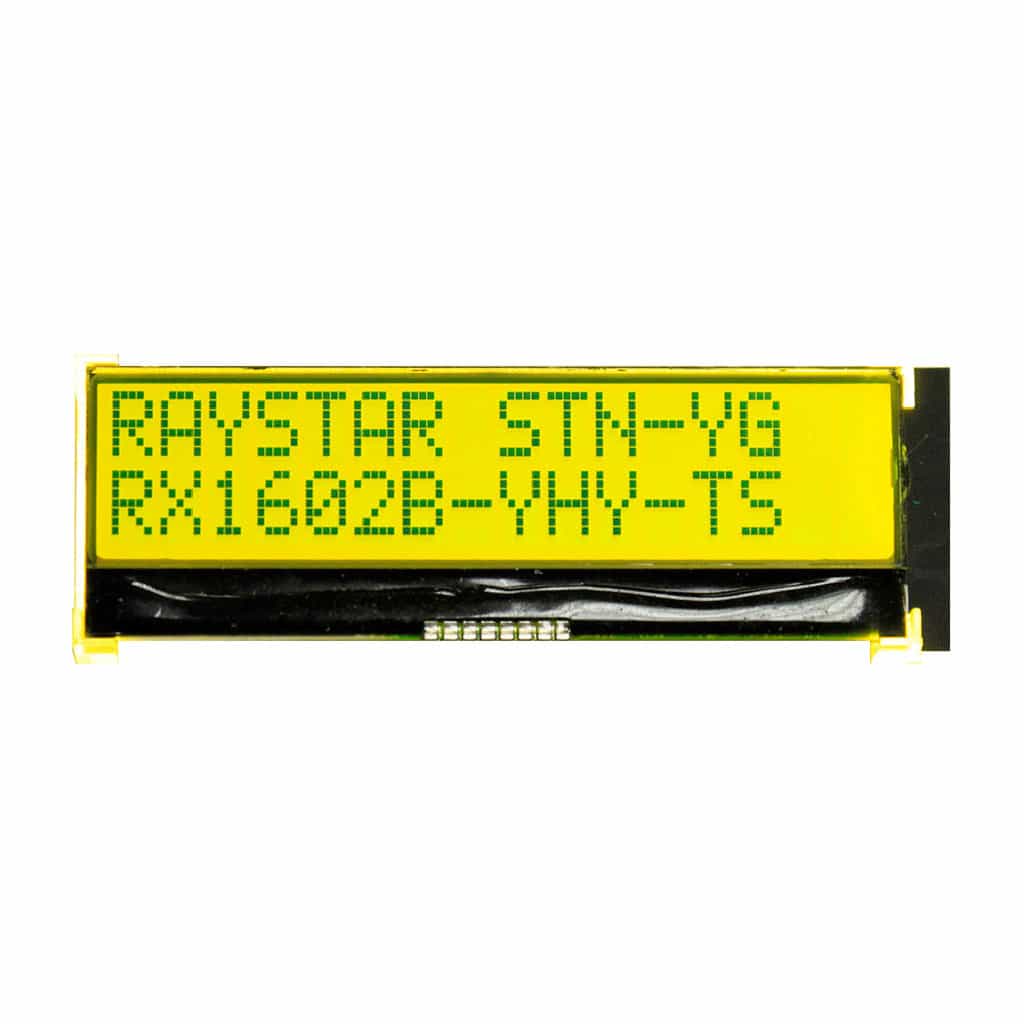

RX1602B 16x2 COG Character LCD (85.0mm x 30.0mm)

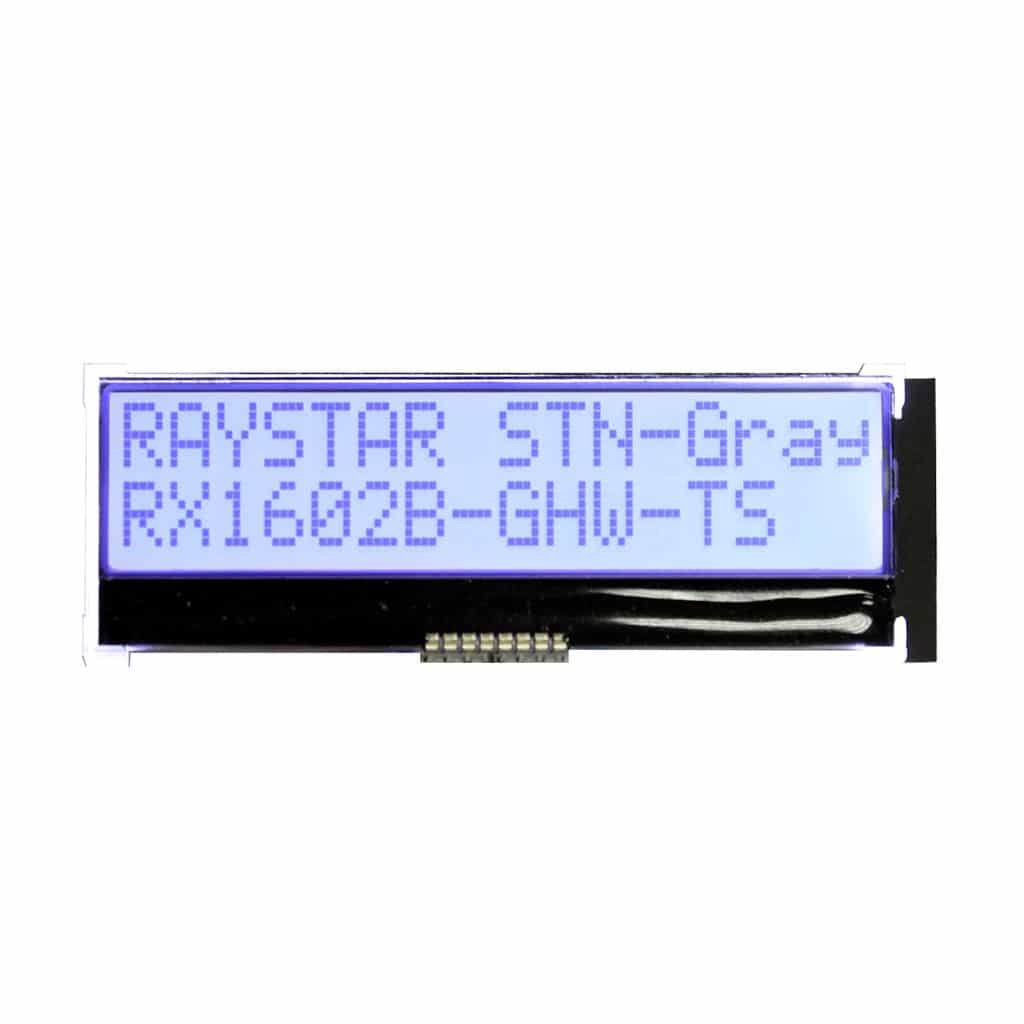

RX1602B 16x2 COG Character LCD (85.0mm x 30.0mm) - Image 2

RX1602B 16×2 COG Character LCD (85.0mm x 30.0mm)

This product is currently out of stock and unavailable.

SKU: RX1602B Categories: , , Manufacturer:
Download PDF

Product specs

Weight 10 g
Dimensions 85.0 × 30.0 mm
Characters

16×2
Interface

I2C
Technology

Blue-STN, FSTN, STN
Construction

COG
Font

Cyrillic, English, European

Product Description

The RX1602B Chip-On-Glass series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7032i controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic



  • 16×2 Character Liquid Crystal Display
  • Chip On Glass (COG)
  • Dimensions: 85.0mm x 30.0mm
  • Viewing Area: 76.0mm x 18.0mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
