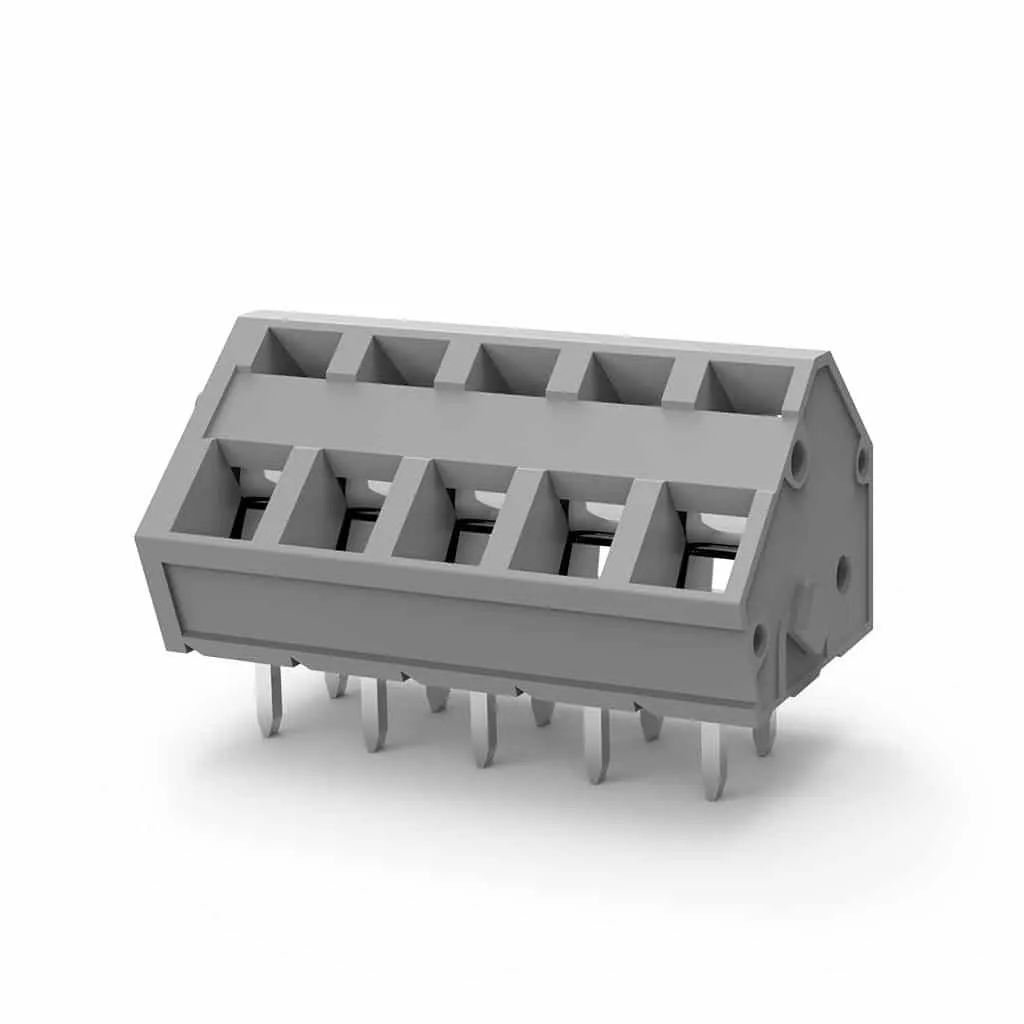

Spring Clamp , 5mm Pitch , 45Degree- DG245-5.0-xxP-1100AH

SKU: DG245-5.0-xxP-1100AH Categories: , Manufacturer:

Product specs

Pitch

5mm

Wire Orientation

45°

Poles

2, 3, 4, 5, 7, 10

Clamp Type

Spring Clamp

Height

12.8mm

Product Description

DG245-5.0 series is a very popular 45 degree spring clamp terminal block in the Degson range. With screwdriver release of the springs it makes an excellent connection

Other colours or number of poles are available upon request.

DG245-5.0  series is UL (E228872) , VDE (40028320) and CE  approved.

V0 flammability rating.



  • Pitch 5mm
  • Spring Clamp
  • 45 degree Wire Entry
  • 12.8mm High – 14.1mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • UL File number E228872 – 12-28 Awg – 15A @ 300v
  • VDE File 40028320 – 0.2-2.5mm2 – 17A @ 450v
  • Colour Grey as standard
