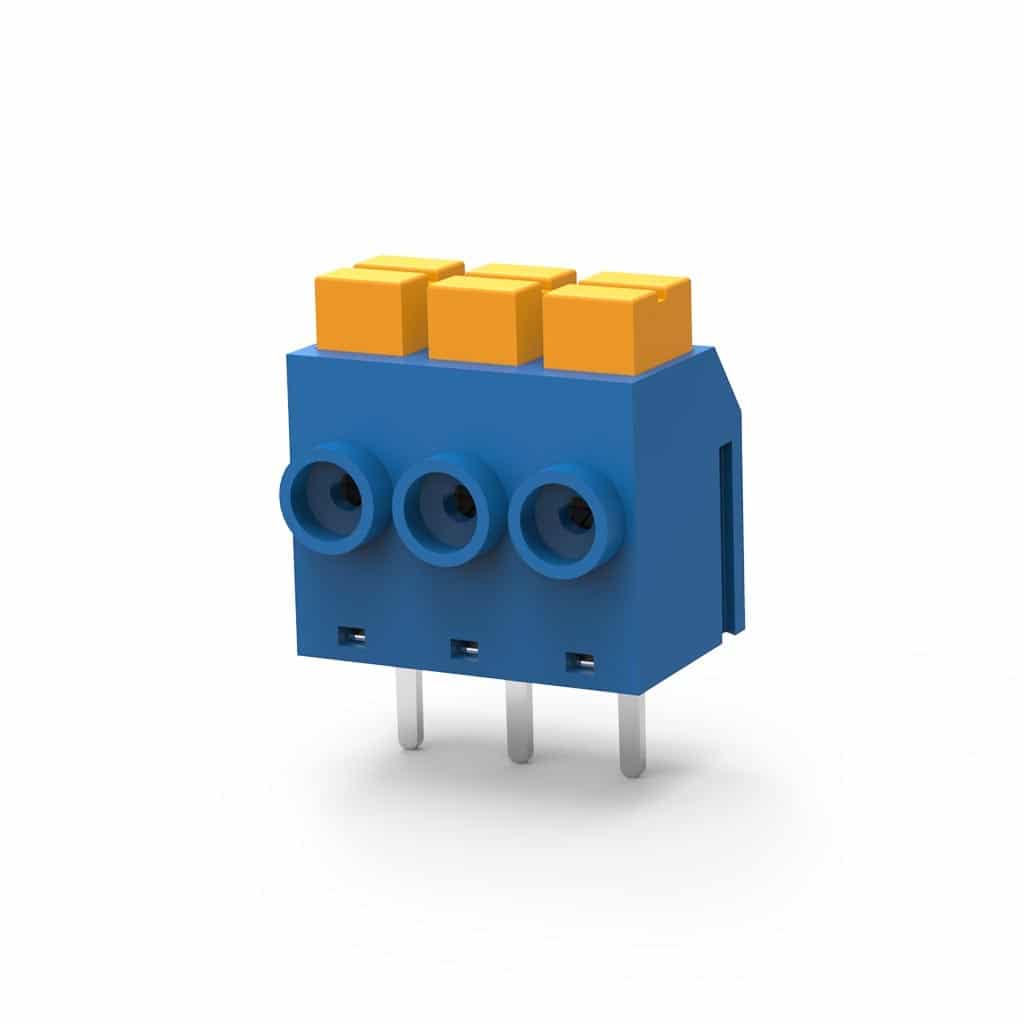

Spring Clamp , 5mm Pitch , DG390-5.0-xxP-1200AH
Product specs
| Pitch | 5mm |
|---|---|
| Wire Orientation | Horizontal |
| Poles | 2, 3, 5 |
| Clamp Type | Spring Clamp |
Product Description
DG390 series is a single pin , spring/screwless terminal block. With top release and horizontal wire insertion it makes the transition from screw to screwless a lot easier.
Other colours or pin configuration available upon request.
DG390 series is CE approved.
- Pitch 5.0mm
- Spring Clamp
- Horizontal Wire Entry
- 15mm High – 10.65mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PBT
- 1mm2 -13.5A @ 250v
- 18-22awg 8A @ 300v
- Colour blue as standard
